Heyco M8437
Heyco M8437
Heyco Cable Grip 14.99-25.4MM 1" NPT
Regular price
$9.00 USD
Regular price
Sale price
$9.00 USD
Unit price
per
Out of stock
Heyco M8437
Cable Grip 14.99-25.4MM 1" NPT

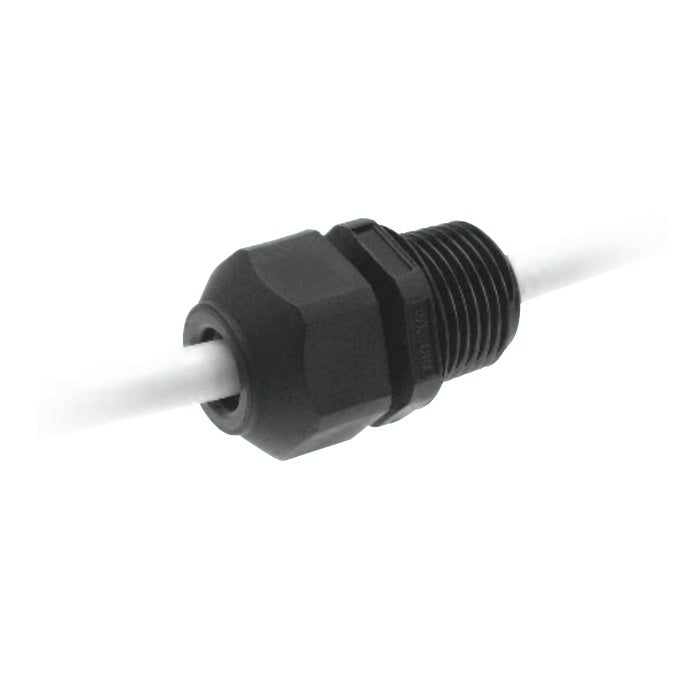

Heyco M8437 is a liquid-tight cable grip designed to provide secure cable entry, strain relief, and environmental sealing for cables with an outside diameter of 14.99 mm to 25.40 mm. It features a 1" NPT thread and is suitable for industrial, electrical, and outdoor enclosure applications.
Features:
- Fits cable diameters from 14.99 mm to 25.40 mm
- 1" NPT mounting thread
- Durable PA66 Nylon (Polyamide) construction
- IP68-rated dust-tight and waterproof sealing
- Operating temperature: -40°C to +115°C
- Black finish
- Anti-vibration sealing nut design for secure cable retention
- Suitable for NEMA 4, 4X, 6, and 6P applications
Specifications M8437
| Dimension | 2.41" x 1.33" x 1.33" inch |
| Weight | 0.1134 lbs |
| Color | Black |
| Material | Polyamide (PA66), Nylon 6/6 |
| Outside Cable Diameter (Min) | 0.590" (14.99mm) |
| Outside Cable Diameter (Max) | 1.000" (25.40mm) |
| Thread Size | 1" NPT |
| Thread Length | 0.760" (19.30mm) |
| Panel Hole Size | 1.327" (33.7mm) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 115°C |
| Operating Temperature | -40°C ~ 115°C |
