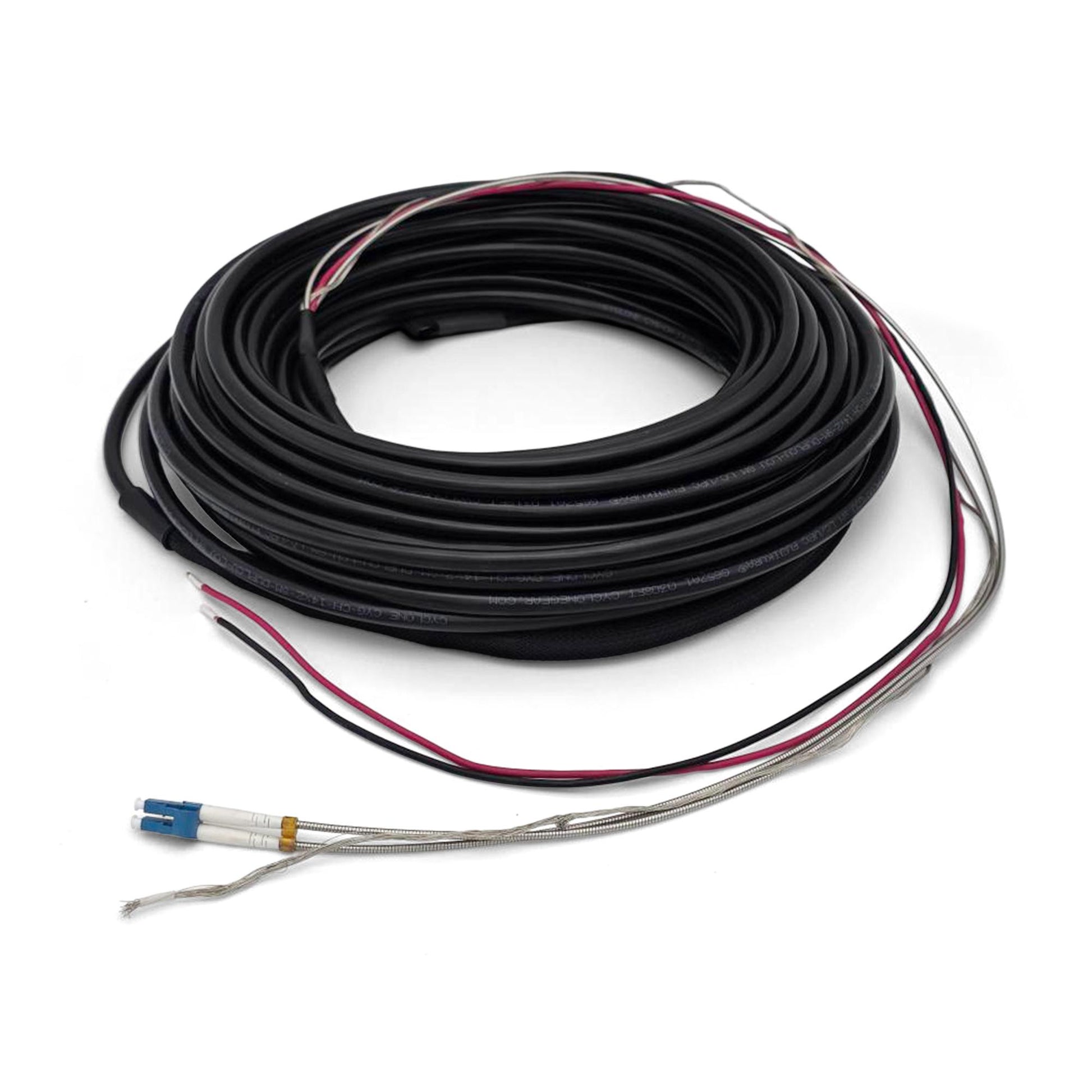

Cyclone Outdoor Hybrid DC / Fiber Patch Cable
Available Options
Cable Length: 1000FT, 100FT, 10FT, 125FT, 150FT, 175FT, 200FT, 225FT, 250FT, 275FT, 300FT, 30FT, 325FT, 350FT, 375FT, 400FT, 450FT, 50FT, 75FT
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Unit price
per
197 in stock
Cyclone CYG-CH-14X2-SM-DUPLCU-LCU
Outdoor Hybrid DC / Fiber Patch Cable
14 AWG Wire Armored Outdoor Duplex LC/UPC Fiber. Shielded with 16AWG Drain Wire 18" End-1 Breakout 36" End-2 Breakout Pulling Eye.
Features:
- PE sheath
- Spiral armouring tube
- Aluminum foil, PET
- LSZH sheath
- Aramid yam
- Tight buffer fiber
- 14AWG Red and Black Copper Wire
- 16AWG Ground cable
Specifications CYG-CH-14X2-SM-DUPLCU-LCU
| Breakout Tube | PC Tube |
| Number Tube | Yellow Number Tube |
| Heat Shrink Tube | 9.5/7.9mm (.37/.31in) |
| Heat Shrink Tube | 19.1mm (.75in) |
| LSZH Tube | 8.5/6.0mm (.33/.24in) |
| Armored Tube | 3.0mm (.12in) |
| Ferrule | LC/UPC |
| Parts | LC/UPC SM DX 3.0mm (.12in) |
| Cable | 9.0mm (.35in) GD 14AWGx2+16AWG Cable Black G.657.A1 |
