SKU: CYG-C18X4
Cyclone CYG-C18X4
Cyclone CYG-C18X4
Cyclone Power Tray Cable 18AWG 4-Conductor Control and Power
Regular price
$1.25 USD
Regular price
Sale price
$1.25 USD
Unit price
per
12648 in stock
Cyclone CYG-C18X4

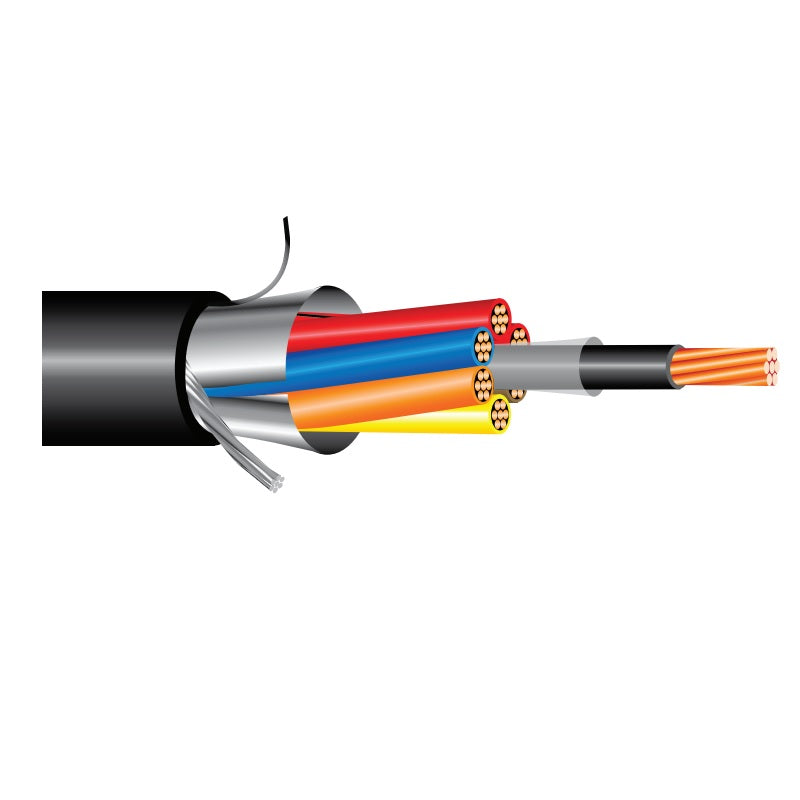

Power Tray Cable 18AWG 4-Conductor Control and Power
The Cyclone THHN, 600V, 90°C Dry/Wet, Sunlight Resistant, Direct Burial, Aluminum Shield and Drain Wire with an Overall Gas and Oil-Resistant PVC Jacket.
Specifications CYG-C18X4
| Conductor Data | |
| Size AWG | 18 |
| Stranding | 7 |
| PVC Insulation Thick. (Mils) | 15 |
| Nylon Armo (Mils) | 5 |
| Appr. O.D. (In) | .086 |
| Cable Data | |
| # of CDRS | 4 |
| AWG | 18 |
| OA Jacket Thick. (Mils) | 45 |
| Appr. O.D. (In) | .301 |
| Appr. Weight (Lbs./M Ft.) | 72 |
| Dimension | 12" x 0.25" x 0.25" inch |
| Weight | 0.08 lb |
