Cyclone CYG-XWAVE

Cyclone CYG-4WAVE-MT

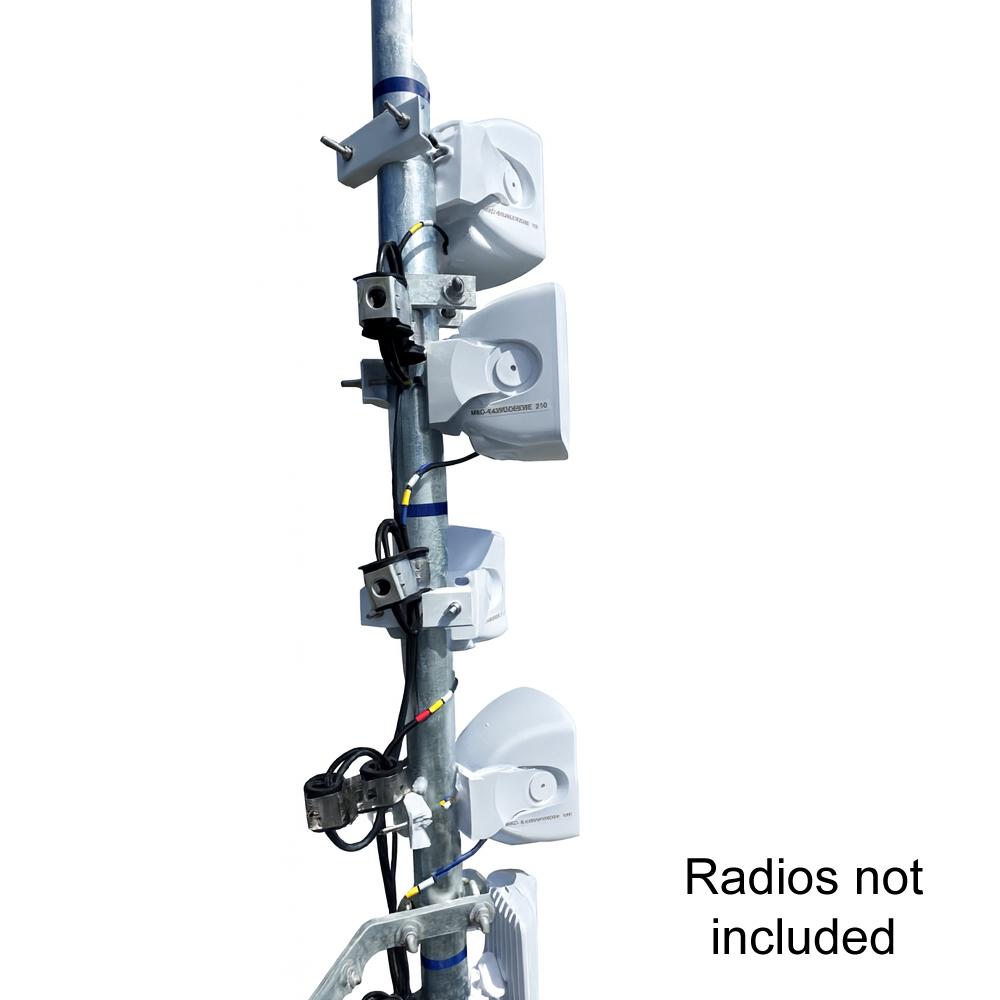

Quad Wave AP Mount Made in USA (Compatible Ubiquiti Wave AP & Wave Micro AP)

The Cyclone Wave Mount removes alignment guesswork entirely. Built for the tight, high-performance 30° beamwidth of Wave APs, it ensures fast, precise, and repeatable installs every time. It transforms the deployment of Ubiquiti Wave APs and Wave Micro APs reducing install time, simplifying complexity, and maximizing network performance. The result: faster rollouts, stronger performance, and greater deployment flexibility—all in one cost-effective solution.

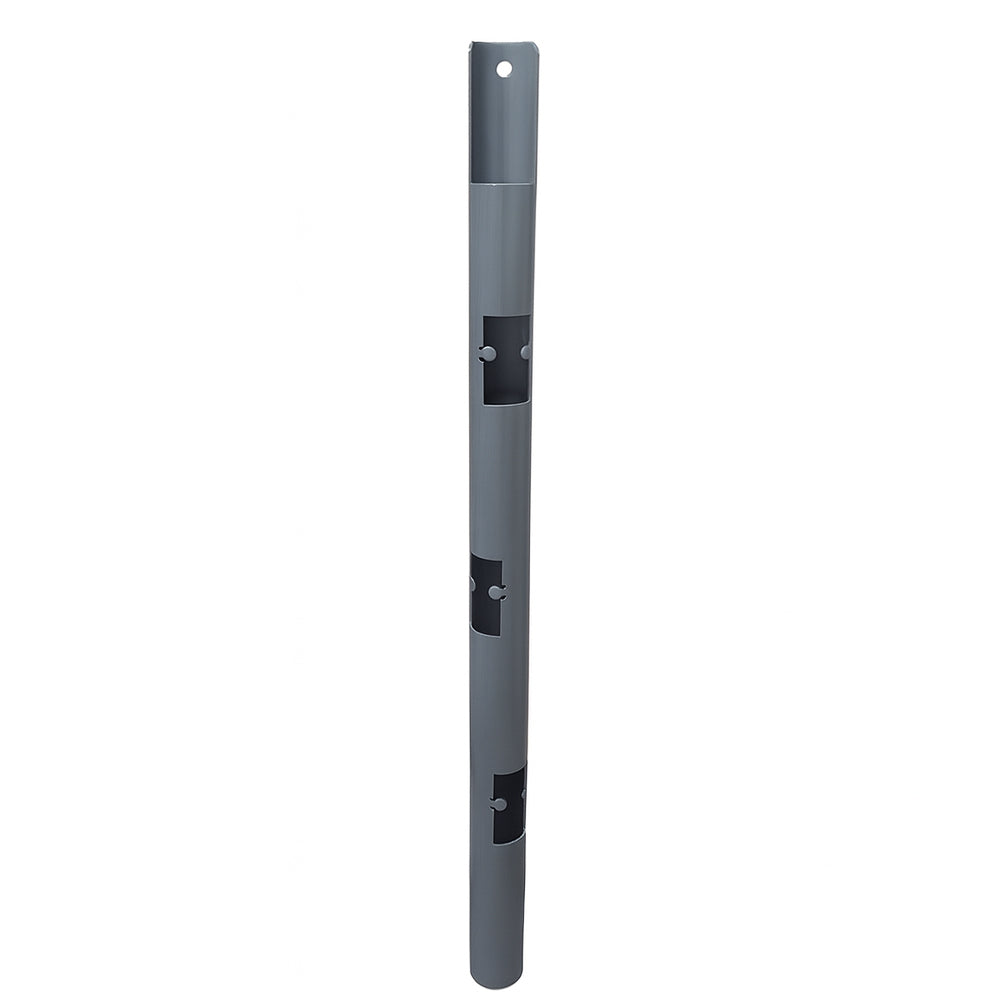

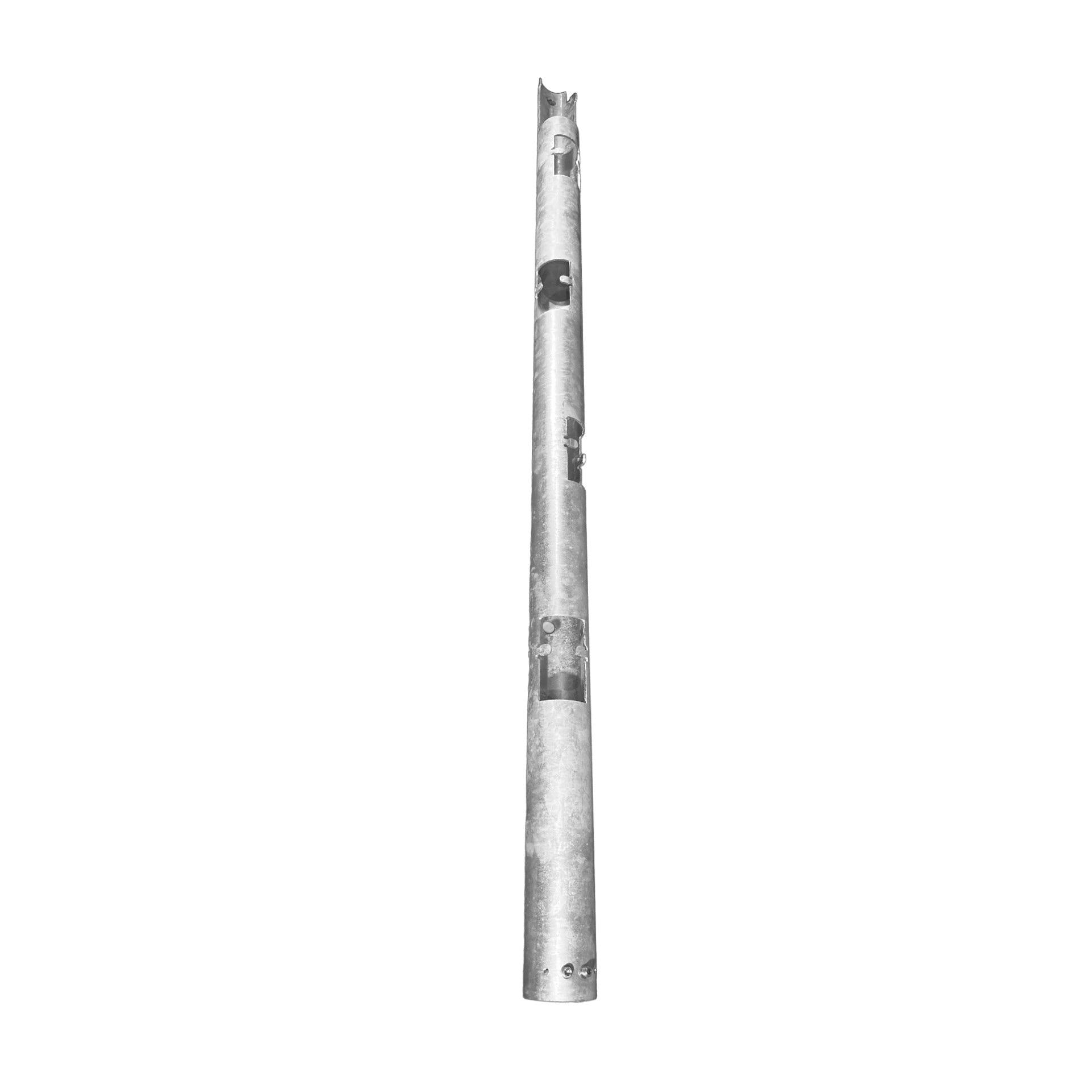

Cyclone Quad Wave AP Mount:

• 120 Degree Coverage
• 3x Mounts per Tower
• 3” OD Galvanized Steel
• 5’ long
• 16.6 lbs.
• 4x Wave AP Mounts
• 1 or 2x Wave Micro APs
• 5x Holes for Snap-ins
• 1x 3/8 -16 grounding lug
• 2x options for EZ Aligner attachment

Alignment

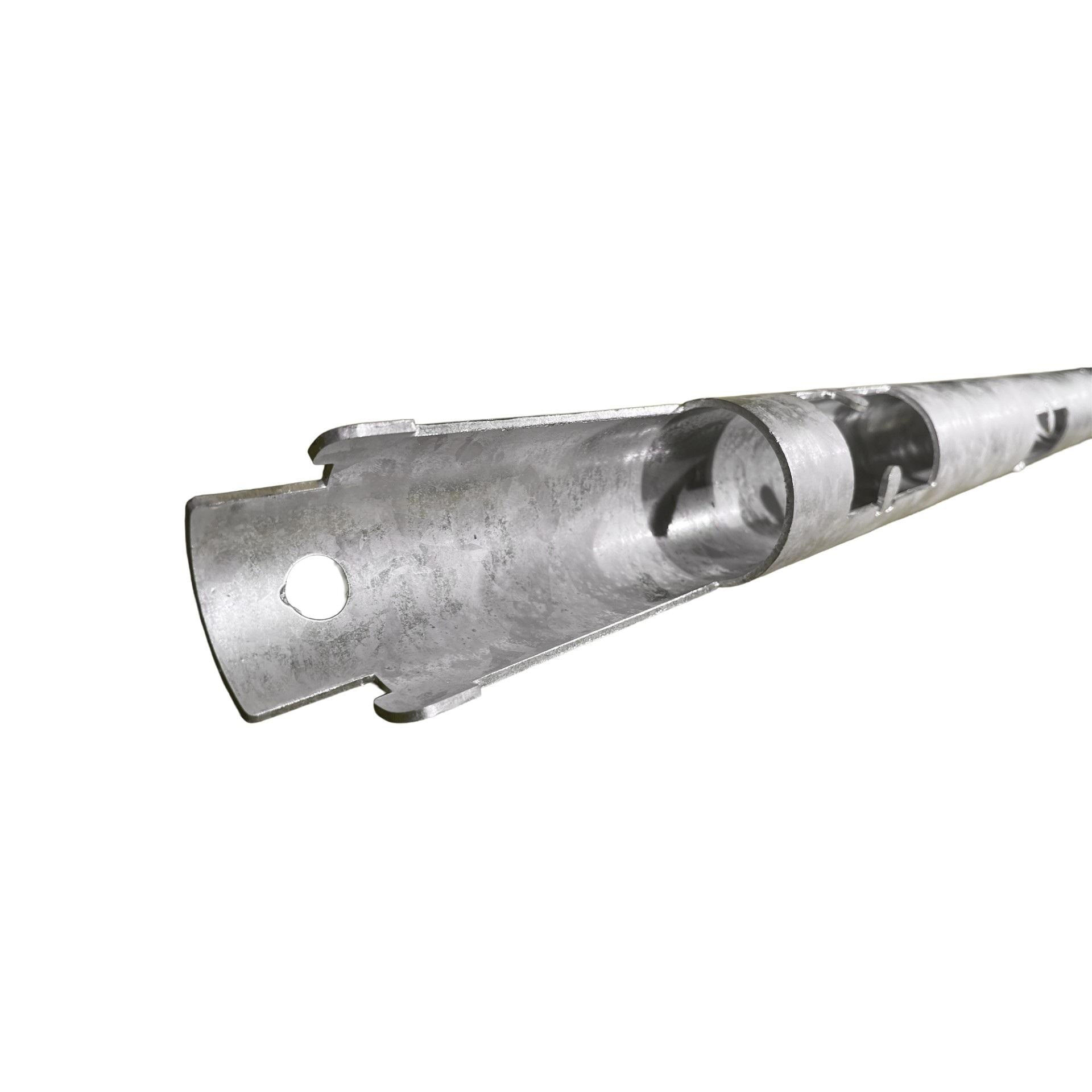

The top feature of all three models include precision CNC Laser cut facets to accept both of the standard 3Z EZ Aligner bracket styles typically used for Dish and Sector Antenna alignment. Once plumb, aligning just the azimuth of the pipe from these features sets the precision azimuth alignment of all APs on that mount

Elevation

A single tape drop from the bottom of each pipe establishes the elevation of all APs on that mount.

Tilt

AP down-tilt is individually adjustable on each AP via the Ubiquiti precision adjustment knobs, read from a digital level on the flat vertical face of each AP. There is also a reasonably accurate digital level built into the web interface of the Wave AP that has proven accurate within about ½ degree.

Cable Management

Integrated ¾” through holes along the rear of each mount allow for direct installation of industry standard Snap-Ins for cable securement. This reduces the quantity of hose clamps and angle adapters per tower, further reducing overall cost, part count, and installation time.

Hoisting

The top and bottom through holes serve as both hoisting points during installation, and cable management features once mounted. Hoisting as a single unit means tower teams can complete the bulk of the work on the ground, with only three mounts to hoist for a full 12 Wave AP + 4 Wave Micro AP installation.

Specifications CYG-4WAVE-MT
