SKU: CYG-WCOLDSHRINK
Cyclone CYG-WCOLDSHRINK
Cyclone CYG-WCOLDSHRINK

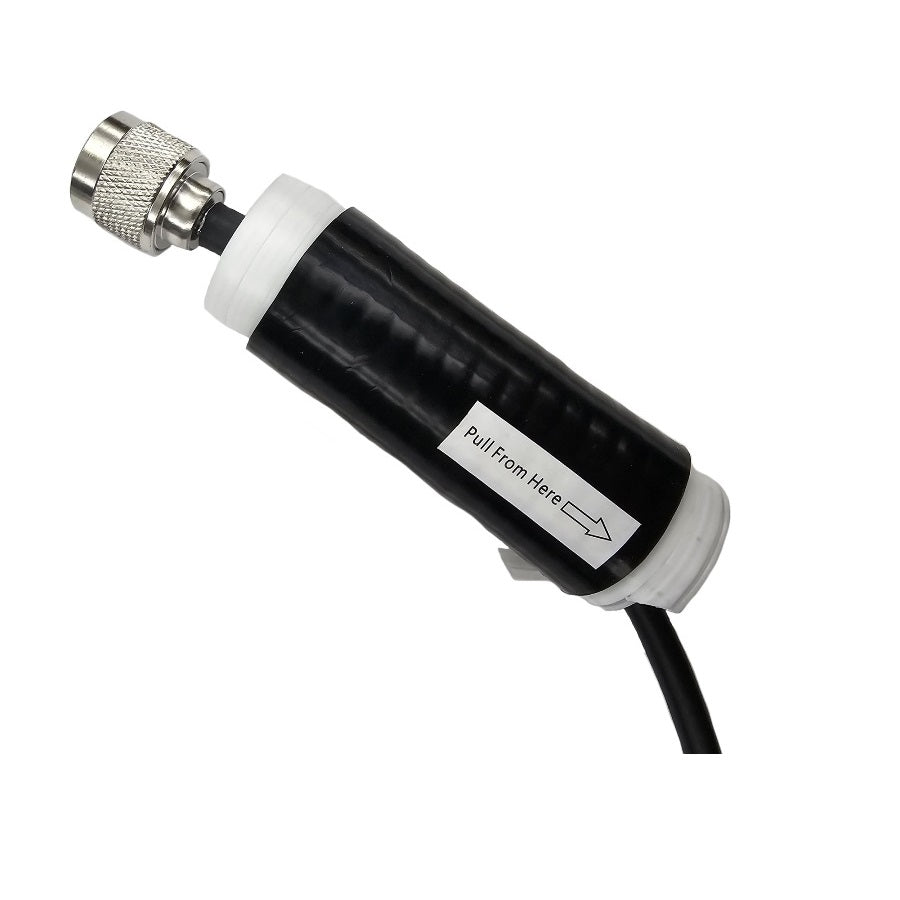

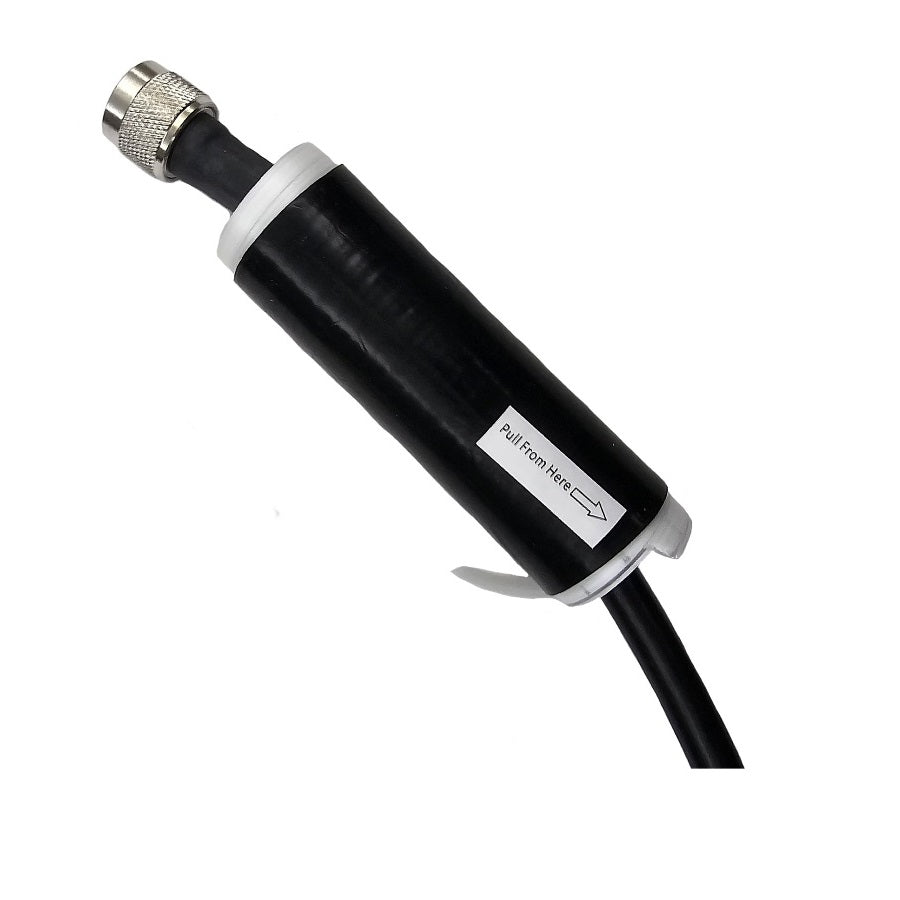

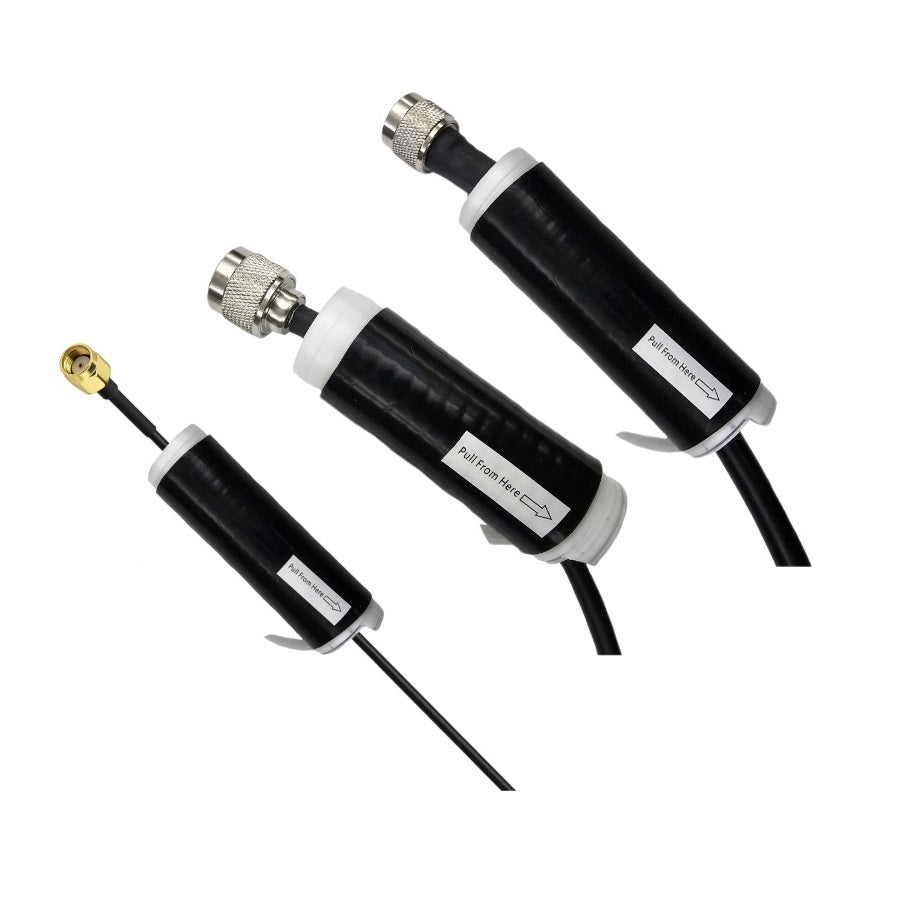

Cyclone Cold Shrink Weatherproofing Silicone Tube for Coaxial Cable, fits SMA to N Type Connectors
Available Options
Version: 174, 240, 400
Regular price
$6.00 USD
Regular price
Sale price
$6.00 USD
Unit price
per
5779 in stock
Cyclone CYG-WCOLDSHRINK
Cold Shrink Weatherproofing Silicone Tube for Coaxial Cable, fits SMA to N Type Connectors

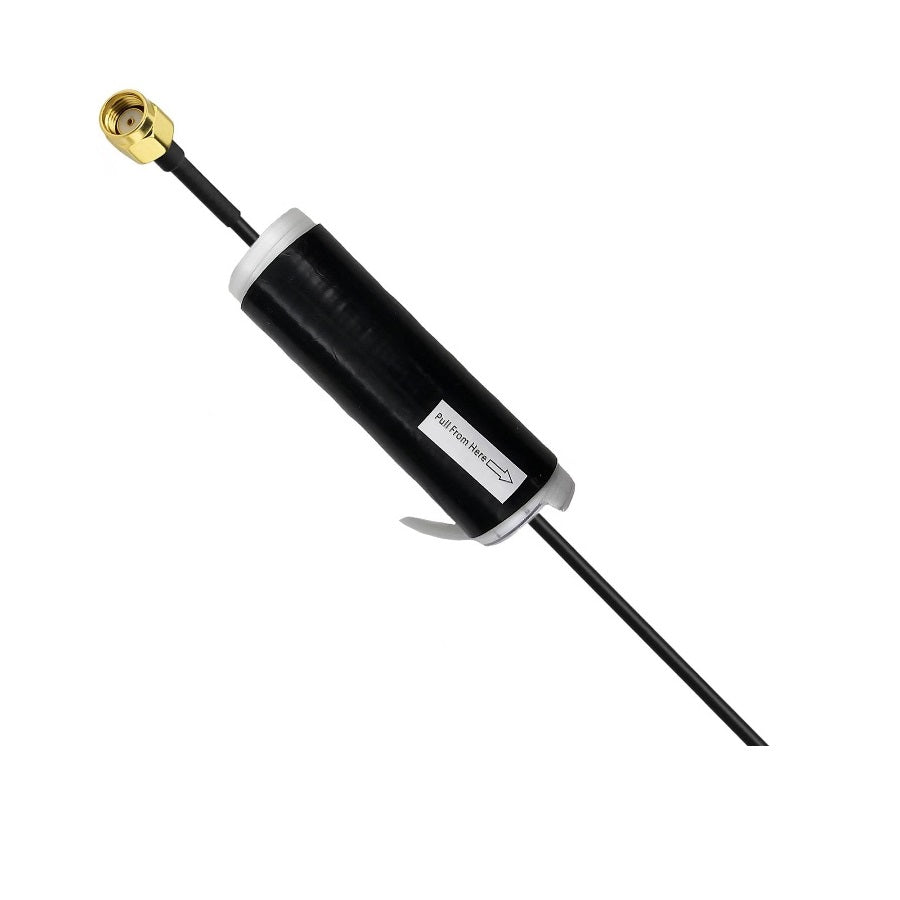

- RG-174 Coaxial Cable, fits SMA to N Type Connectors, 2.3 Inch Long
- 240 Series Coaxial Cable, fits SMA to N Type connectors, 2.5 inch long
- 400 Series Coaxial Cable, fits SMA to N Type connectors, 3.5 inch long
Specifications CYG-WCOLDSHRINK
| General | |||
| Material | PVC | ||
| Cable Type | Corrucated, Elliptical Waveguide, Smoothwall | ||
| Color | Black | ||
| Mastic (Y/N) | N | ||
| Shrink Ratio | 4:1 | ||
| Environmental | |||
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) | ||
| Weatherproof Resistance | IP67, based on ISO20653:2013 | ||
| UV Resistance | ≥1000Hours,based on ISO 4892-3 | ||
| Dimensions | |||
| Description | 174 | 240 | 400 |
| Cable Size | φ2.75mm-φ12.5mm | φ6.4mm-φ20mm | φ9mm-φ20mm |
| Length Before Shrink | 2.36in (60mm) | 2.56in (65mm) | 3.54in (90mm) |
| Inner Diameter Before Shrink (ID) | 0.59in (15mm) | 0.98in (25mm) | 1.1in (28mm) |
| Inner Diameter After Shrink (ID) | 0.09in (2.5mm) | 0.25in (6.4mm) | 0.3in (7.6mm) |
| Thickness After Shrink | 0.098in (2.5mm) | 0.12in (3mm) | 0.12in (3mm) |
