SKU: CYG-TCA-CHG
Cyclone CYG-TCA-CHG
Cyclone CYG-TCA-CHG

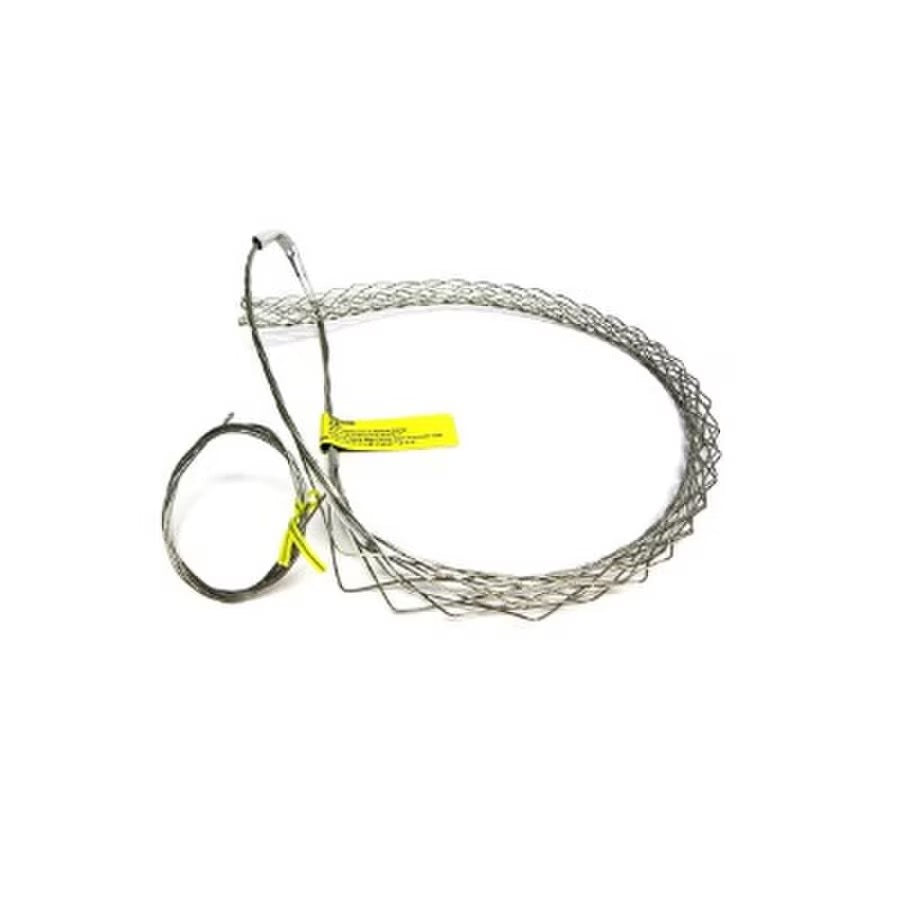

Cyclone Lace Up Hoisting Grip
Available Options
Type: 1/2", 1/4", 3/8", 5/8"
200 in stock
Buy from Authorized Distributors
Couldn't load pickup availability
Cyclone CYG-TCA-CHG
Lace Up Hoisting Grip
Hoisting grips provide an effective means for hoisting coax and elliptical waveguide into position. The lace-up design allows the hoisting grip to facilitate easy positioning at 200 foot increments on long coax runs. The grip can easily slip over an unterminated end of a coax cable. The grip securely tightens when pulled for additional support for the coax. Hoisting grip kits include a self-locking clamp, providing additional support both during and after installation. The 5/8” lace-up grips are made for maximum performance, reducing stress and vibration.
Specifications CYG-TCA-CHG-58
| Weight | 0.28 lbs. |
| Size | 6.00 in. wide x 0.50 in. high x 17 in. deep |
Specifications CYG-TCA-CHG-12
| Usage | Hoisting and support of coaxial cable on cell towers |
| Installation | Lace up design |
| Material | 304 Stainless Steel |
| Environmental | Corrosion and UV resistant |
| Color | Stainless (silver) |
| Size | 6 in W x 0.25 in H x 13 in D |
| Safe Load (kg) | 63 |
| Break Load (kg) | 313 |
| Volume | 19.50 cubic in |
| Weight | 0.16 lb |
Specifications CYG-TCA-CHG-3/8
| Weight | 0.08 lbs. |
| Dimension | 7.00 in. wide x 0.25 in. high x 8 in. deep |
Specifications CYG-TCA-CHG-1/4
| Weight | 0.07 lbs. |
| Dimension | 6.50 in. wide x 0.25 in. high x 7.5 in. deep |
| Usage | Hoisting and support of coaxial cable on cell towers |
| Installation | Lace included |
| Material | 304 Stainless Steel |
| Environmental | Corrosion and UV resistant |
| Color | Stainless (silver) |
| Safe Load (kg) | 40 |
| Break Load (kg) | 20012.19 cubic inch |
