Cyclone CYG-SPDO-10GB-V2

Cyclone CYG-SPDO-10GB-V2

Data Surge Protection Outdoor SPD IP65 10GB Ethernet POE++

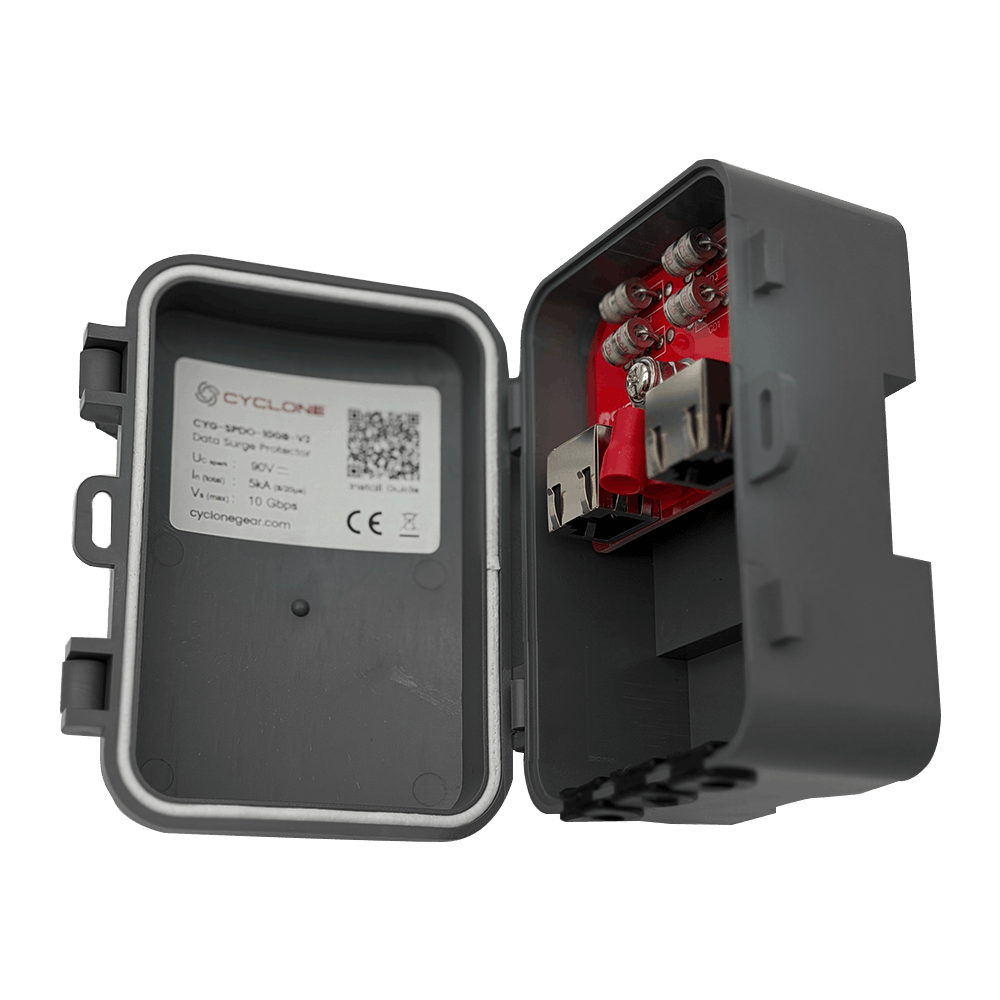

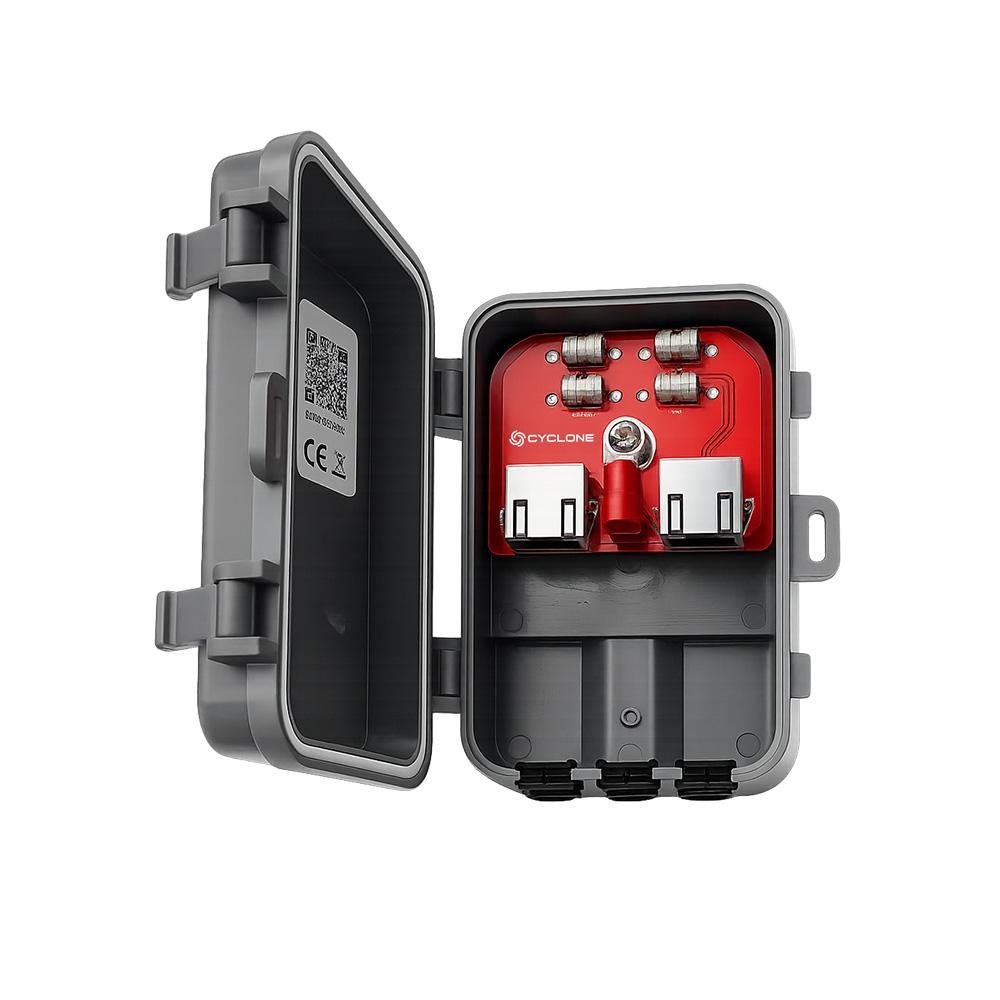

The Cyclone Surge Protector V2 is a high-performance, inline Ethernet surge protection device (SPD) engineered to safeguard outdoor network equipment against lightning strikes, power surges, and electrostatic discharge. Purpose-built for harsh outdoor environments, it features an IP65-rated waterproof enclosure that withstands extreme temperatures, humidity, and direct exposure to the elements.

Supporting data rates up to 10 Gbps across all standard Ethernet speeds (10/100/1000/10GBASE-T), the CYG-SPDO-10GB-V2 delivers transparent, pass-through protection with minimal signal attenuation and ultra-low capacitance (1.0 pF). Full compatibility with PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) ensures uninterrupted power delivery to connected devices up to 90W.

With a nominal discharge current of 2.5 kA (8/20µs) and a total discharge capacity of 5 kA, the unit provides robust protection against both direct and induced lightning surges. The simple RJ45 pass-through design allows for quick installation at the point of entry, making it ideal for protecting outdoor wireless radios, access points, IP cameras, and any Ethernet-connected equipment.

Features:

• 10 Gbps Ethernet Protection: Supports 10/100/1000/10GBASE-T with minimal insertion loss and ultra-low 1.0 pF capacitance for transparent, high-speed data throughput
• Full PoE++ Compatibility: Passes IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) power up to 90W without degradation, ensuring reliable power delivery to remote devices

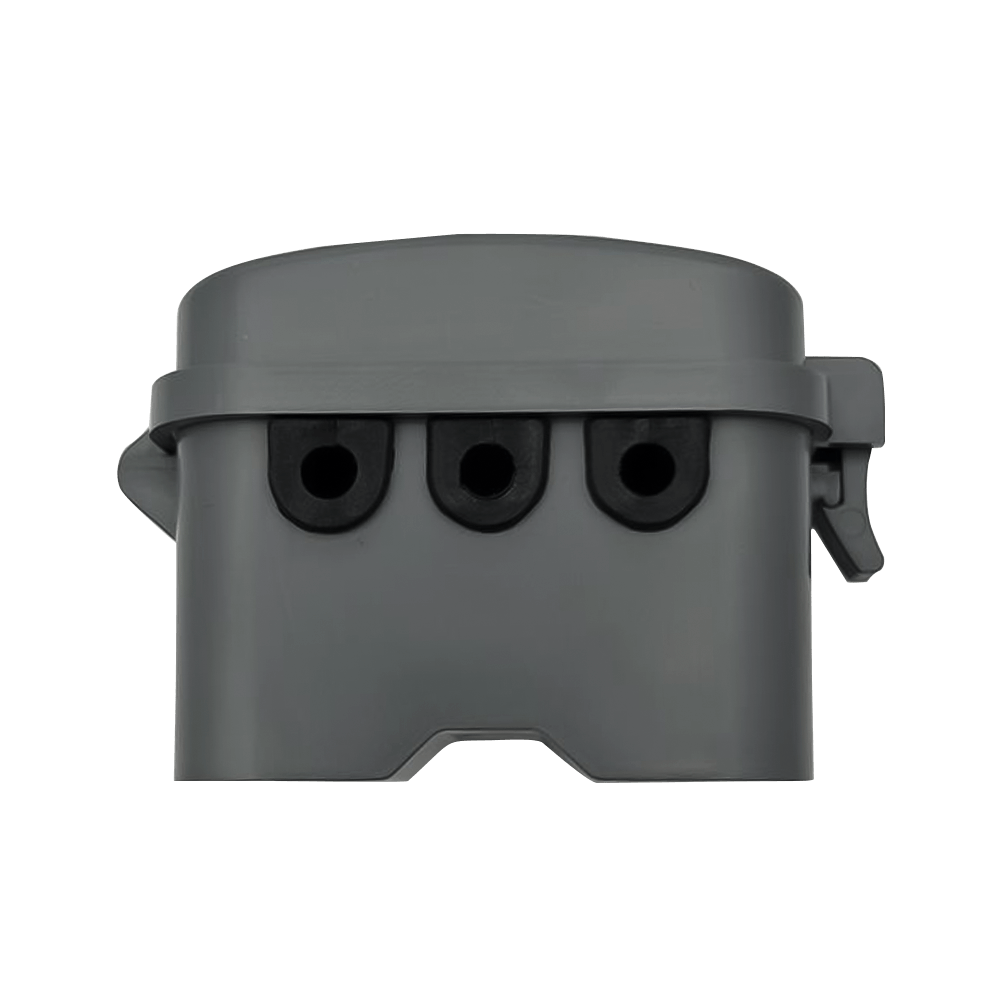

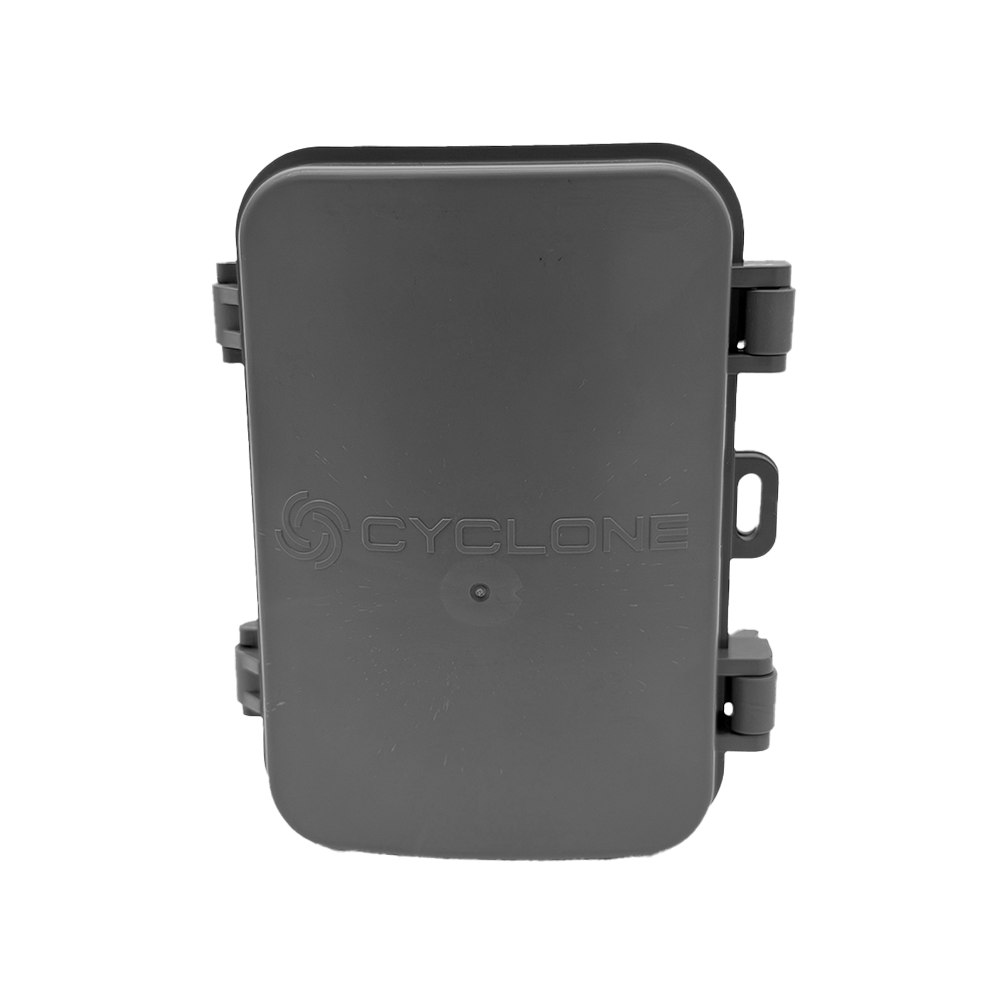

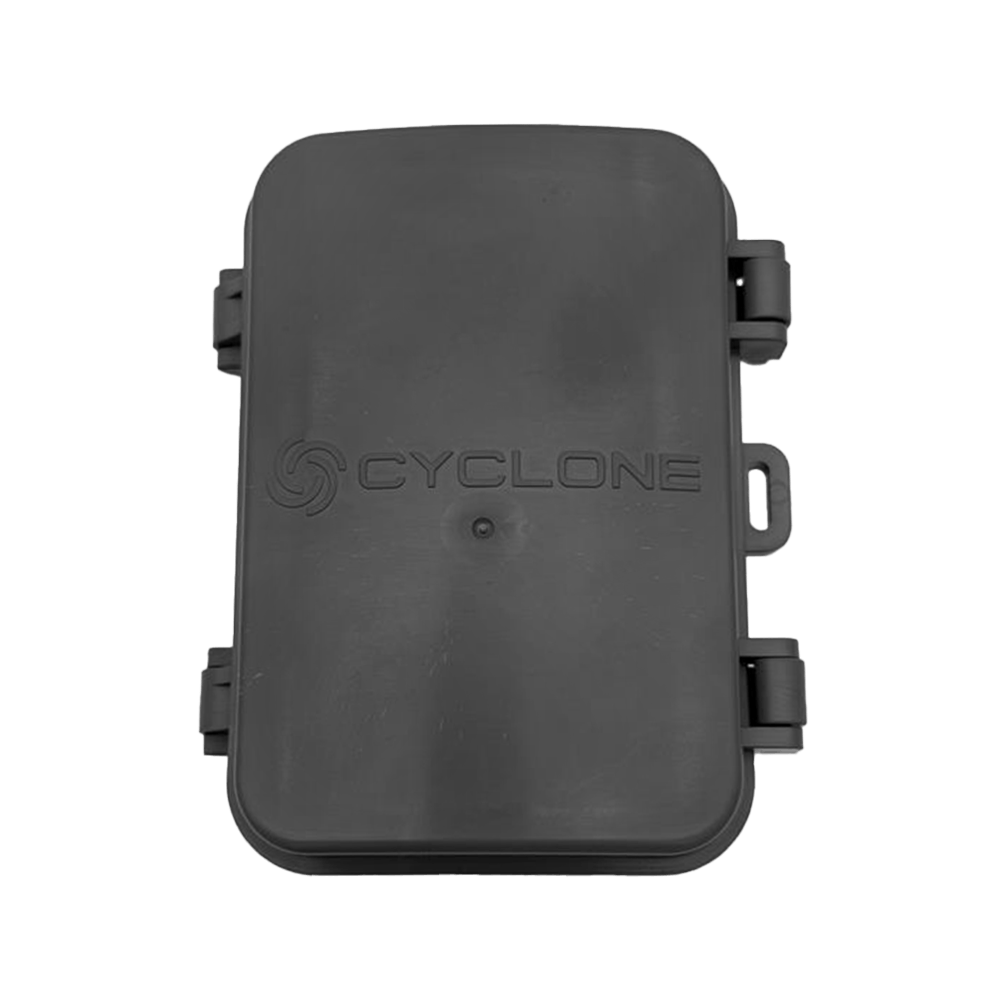

• IP65 Waterproof Enclosure: Sealed thermoplastic housing rated for direct outdoor installation; resists dust, rain, and moisture ingress
• Extended Operating Temperature: Rated for continuous operation from –31°F to +149°F (–35°C to +65°C), suitable for extreme hot and cold climates
• High Surge Discharge Capacity: Handles nominal discharge currents of 2.5 kA and total discharge currents up to 5 kA (8/20µs waveform), with clamping voltage at or below 600V for fast, effective suppression
• Low Signal Attenuation: Engineered for minimal signal degradation, preserving link integrity across long outdoor cable runs
• Fast Response Time: Sub-nanosecond response to transient voltage events protects sensitive electronics before damage occurs

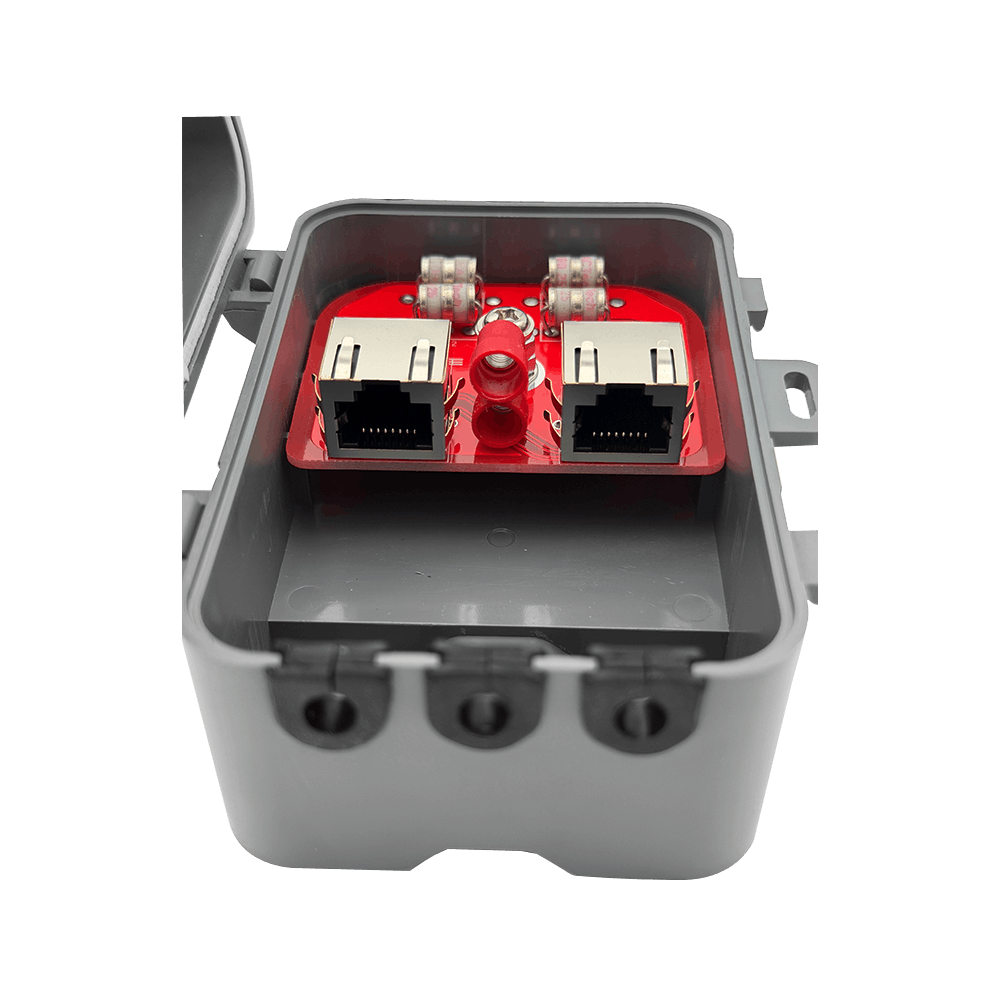

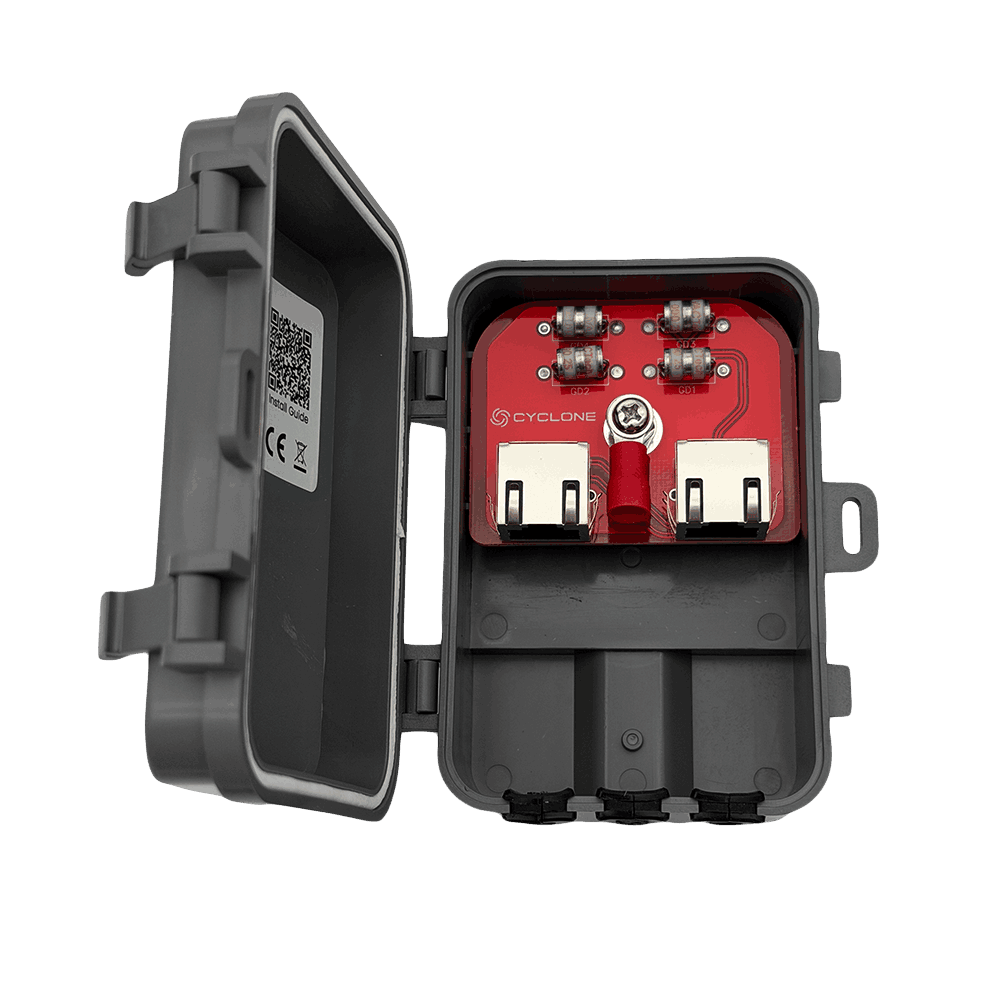

• Simple RJ45 Pass-Through Design: Inline installation with standard RJ45 connectors; no special tools or configuration required

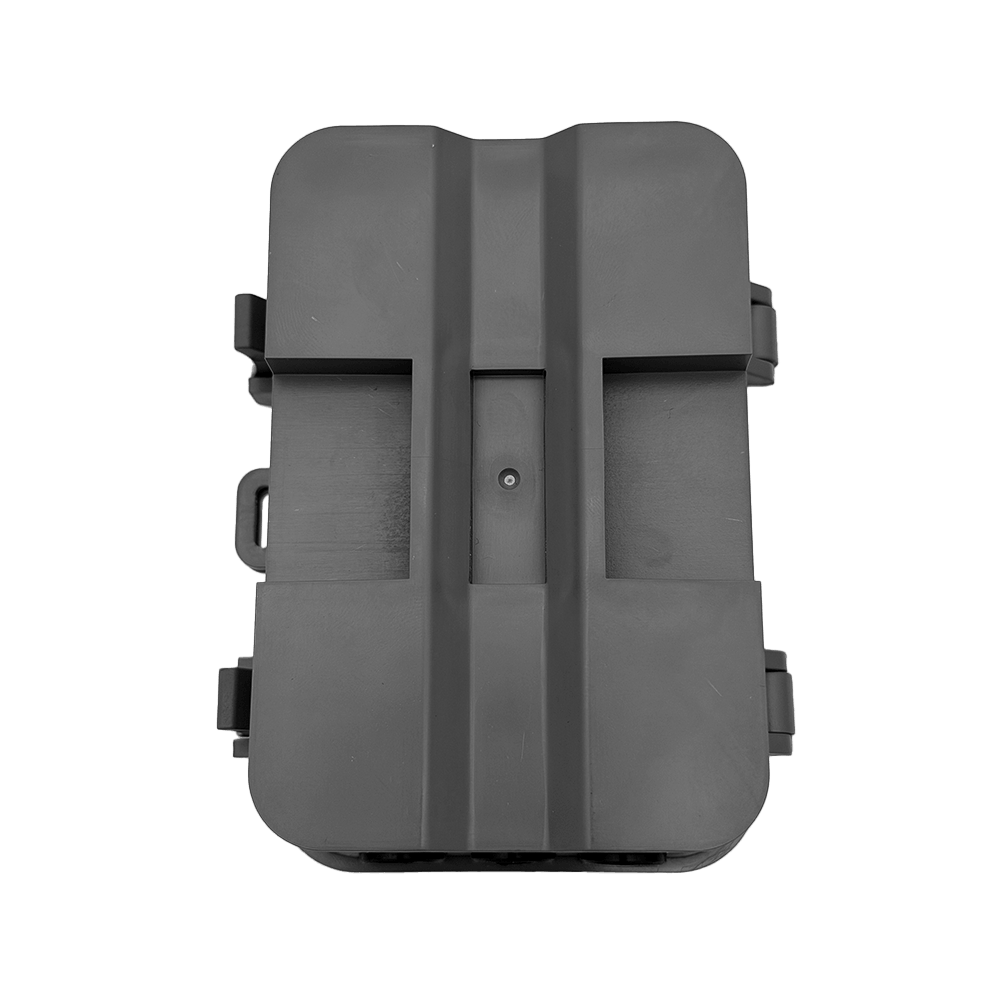

• Versatile Mounting Options: Mounts via metal clip or screws directly to poles, enclosures, or wall surfaces near the protected equipment
• Tested to International Standards: Compliant with IEC 61643-21 and EN 61643-21; CE (LVD) and RoHS certified

Application:

The CYG-SPDO-10GB-V2 is purpose-built to protect outdoor and exposed network infrastructure where lightning and electrical surges pose a constant threat. It is the ideal surge protection solution for any Ethernet-connected device deployed outside or at the network edge.

Typical Use Cases

• Outdoor Wireless Radios and Base Stations: Point-to-point and point-to-multipoint radios, wireless bridges, and
  backhaul links mounted on towers, rooftops, and poles
• Outdoor Wi-Fi Access Points: Campus, stadium, warehouse, and municipal Wi-Fi deployments exposed to the elements
• IP Surveillance Cameras: PoE-powered security cameras installed on building exteriors, parking structures, and perimeter fencing
• Remote Network Switches and Enclosures: Outdoor-rated switches, routers, and media converters housed in pole- or wall-mounted NEMA enclosures
• Industrial and SCADA Equipment: Ethernet-connected sensors, controllers, and telemetry devices in exposed industrial, agricultural, or utility environments

Specifications CYG-SPDO-10GB-V2
