SKU: CYG-SPDO-10GB
Cyclone CYG-SPDO-10GB
Cyclone CYG-SPDO-10GB

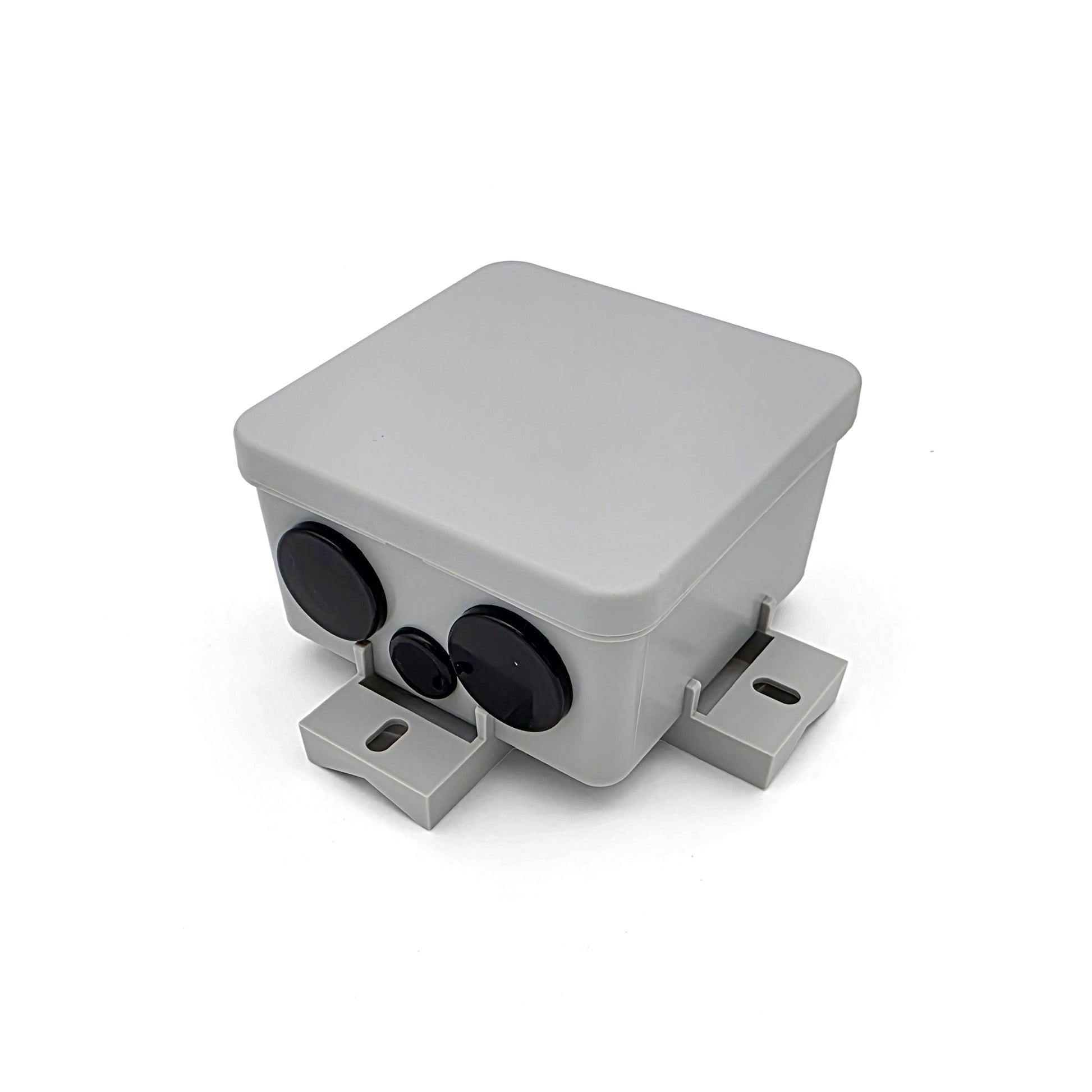

Cyclone Data Surge Protection Outdoor SPD IP65 10GB Ethernet POE++
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
per
1667 in stock
Buy from Authorized Distributors
Couldn't load pickup availability
Cyclone CYG-SPDO-10GB
Data Surge Protection Outdoor SPD IP65 10GB Ethernet POE++
Cyclone Data Surge Protection Outdoor SPD IP65 10GB Ethernet POE++ Shielded Connectors GDT UL497B
Features:
- POE++ Compatible
- Shielded Connectors
- 16 kA Maximum Surge Discharge Capability
- Up to 10Gbps Data Transmission Speeds
- UL 497B (pending)
- Compatible for Wall and Pole Mounting
Specifications CYG-SPDO-10GB
| Electrical | |
| Max Voltage on Pins (1-2)(3-6)(4-5)(7-8) | 60V |
| AC/DC/DC PV/RF | DC |
| Wires | 8W + Shield + Ground |
| Line Current Max | 2 A |
| Power Rating | 100 W |
| Ambient Min | -35 °C |
| Ambient Max | +85 °C |
| Modes | Line/Line, Line/Ground (Per Line), Lines/Ground (Total) |
| Residual Voltage | 70 V |
| Imax 8/20 µs | 16 kA |
| Iimp 10/350 µs | 500 A |
| Data Speed | Up to 10 Gbps |
| Impedance | < 1 Ω |
| Installation | |
| Wiring Type | Shielded RJ45 |
| Operating Relative Humidity Max | 95 %RH |
| Operating Altitude Max | 6500 ft |
| Installation Location | Indoor / Outdoor |
| Mechanical | |
| Outdoor Application | Yes |
| Technology | GDT |
| Network Configuration | Single PoE Line |
| Connection Method | Shielded RJ45 |
| Mounting | Surface / Pole Mount |
| Material | UV Rated Thermoplastic |
| Flammability Rating | UL94-V0 |
| NEMA Rating (IP Rating) | IP65 |
| Dimensions | 5" x 5" x 2.25" inch |
| Weight | 0.425 lb |
| Standards | |
| Certification | UL 497B (Pending) |
