Cyclone CYG-SFPP-10GLRI

Cyclone CYG-SFPP-10GLRI

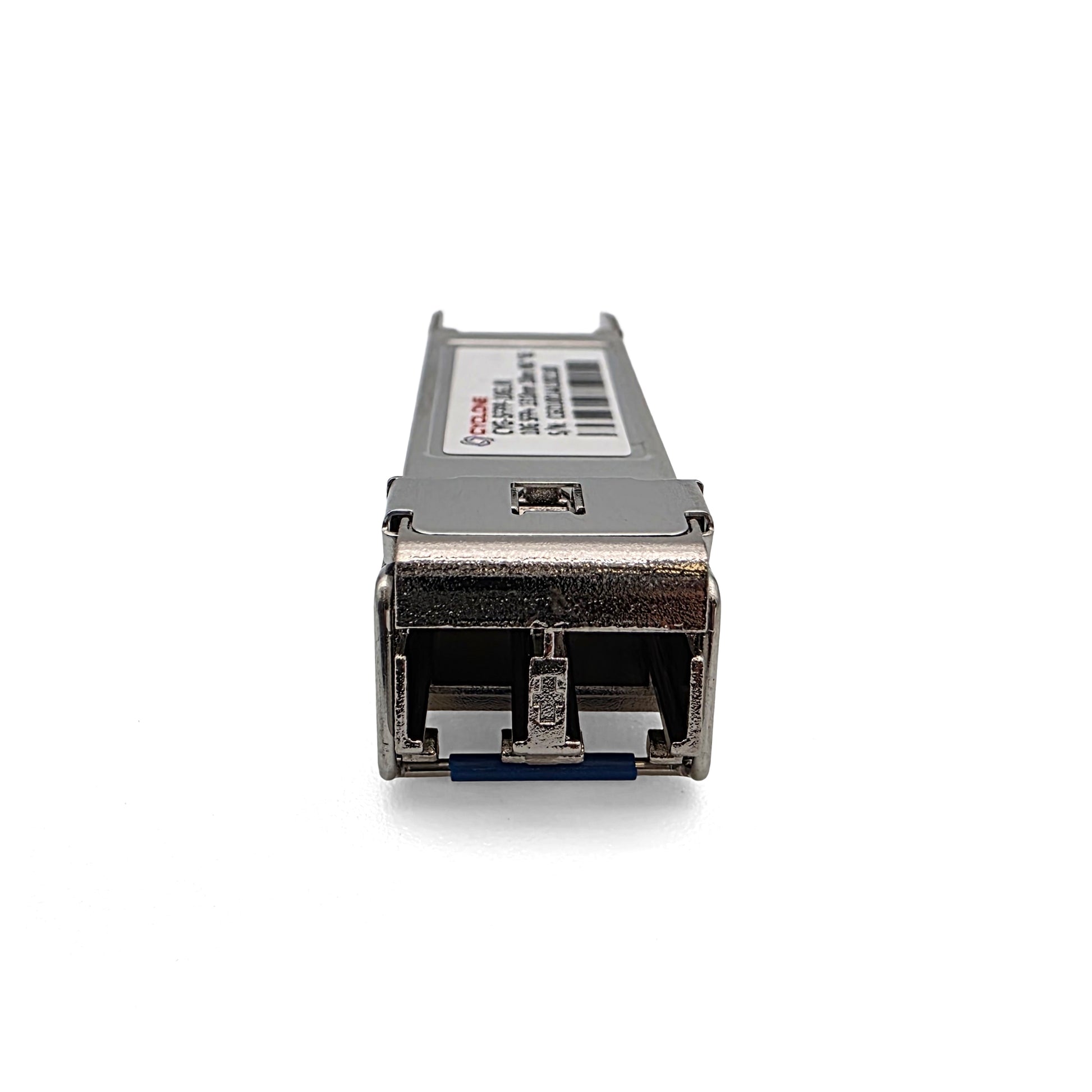

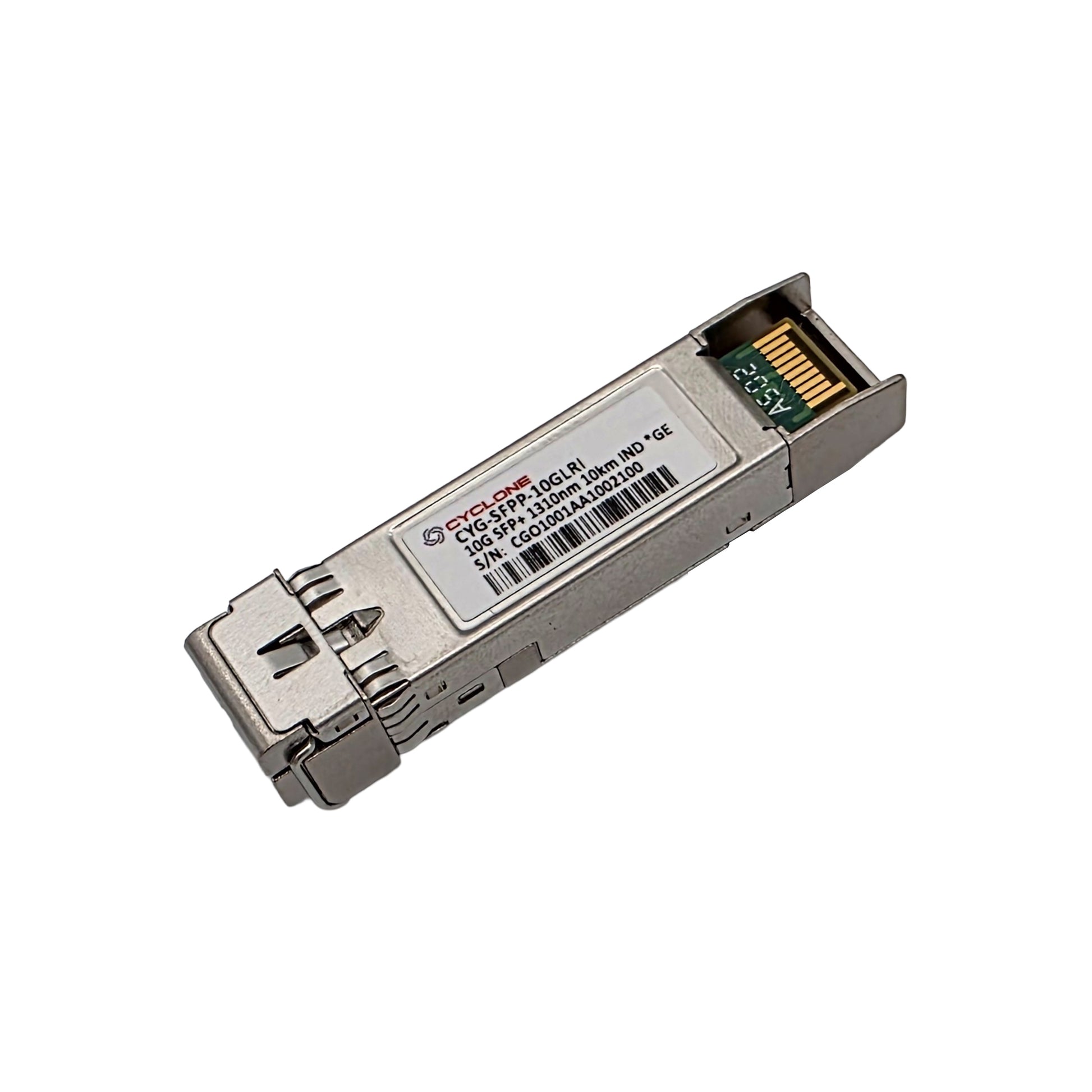

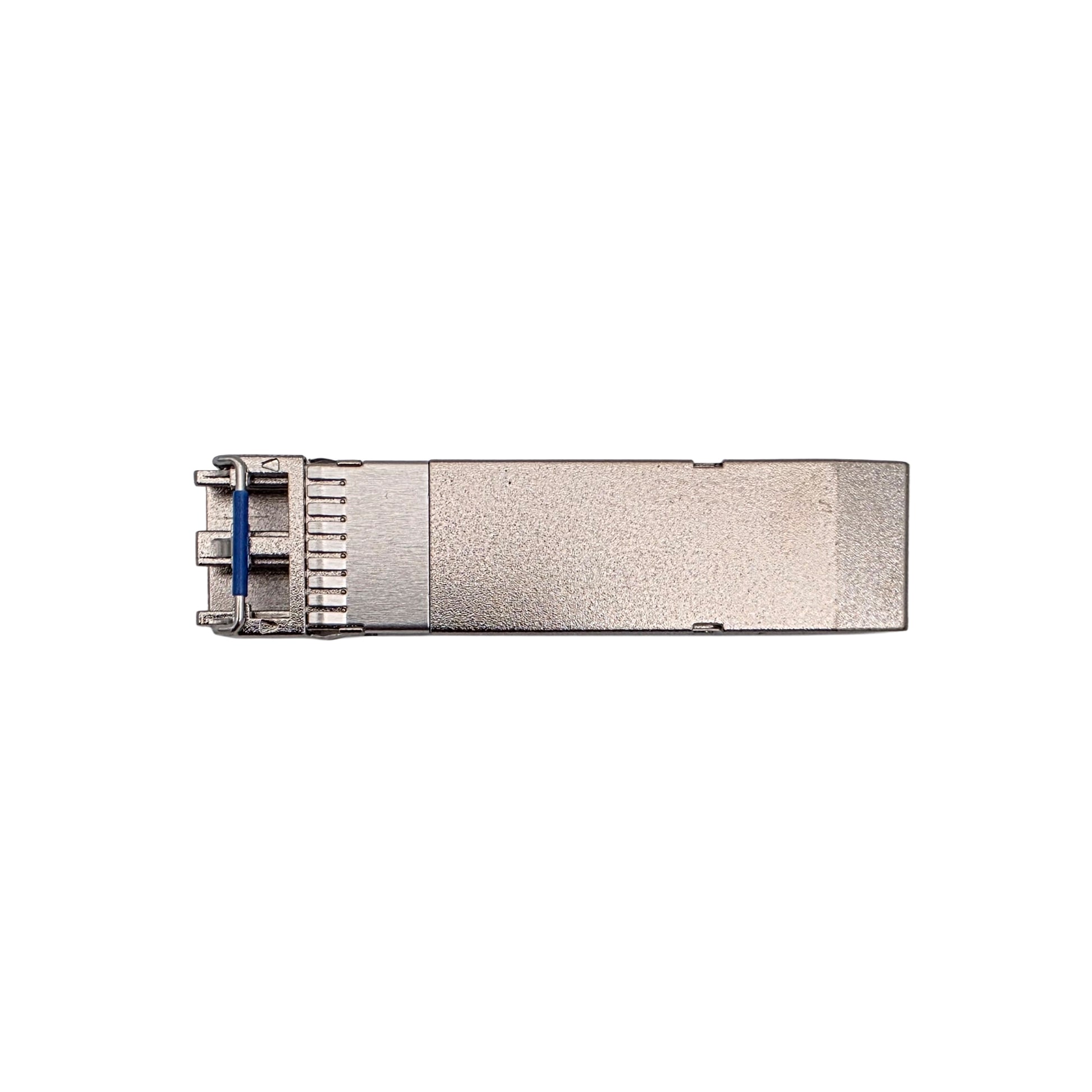

SFP+ 10Gb (10GBASE-LR) Optical Transceiver Module Single Mode (SMF) 1310nm 10km DOM Duplex LC/UPC Industrial, Single-Pack (Tarana Certified)

Features:

• Hot-pluggable SFP+ footprint
• Supports 9.95 to 10.52Gb/s bit rates
• Power dissipation <1W
• RoHS-6 compliant (lead-free)
• Industrial temperature range: -40°C to 85°C
• Single 3.3V power supply
• Maximum link length of 10km
• Uncooled 1310nm DFB laser
• Receiver limiting electrical interface
• Duplex LC connector
• Built-in digital diagnostic functions

Specifications CYG-SFPP-10GLRI
