SKU: CYG-SFP10G-LRi

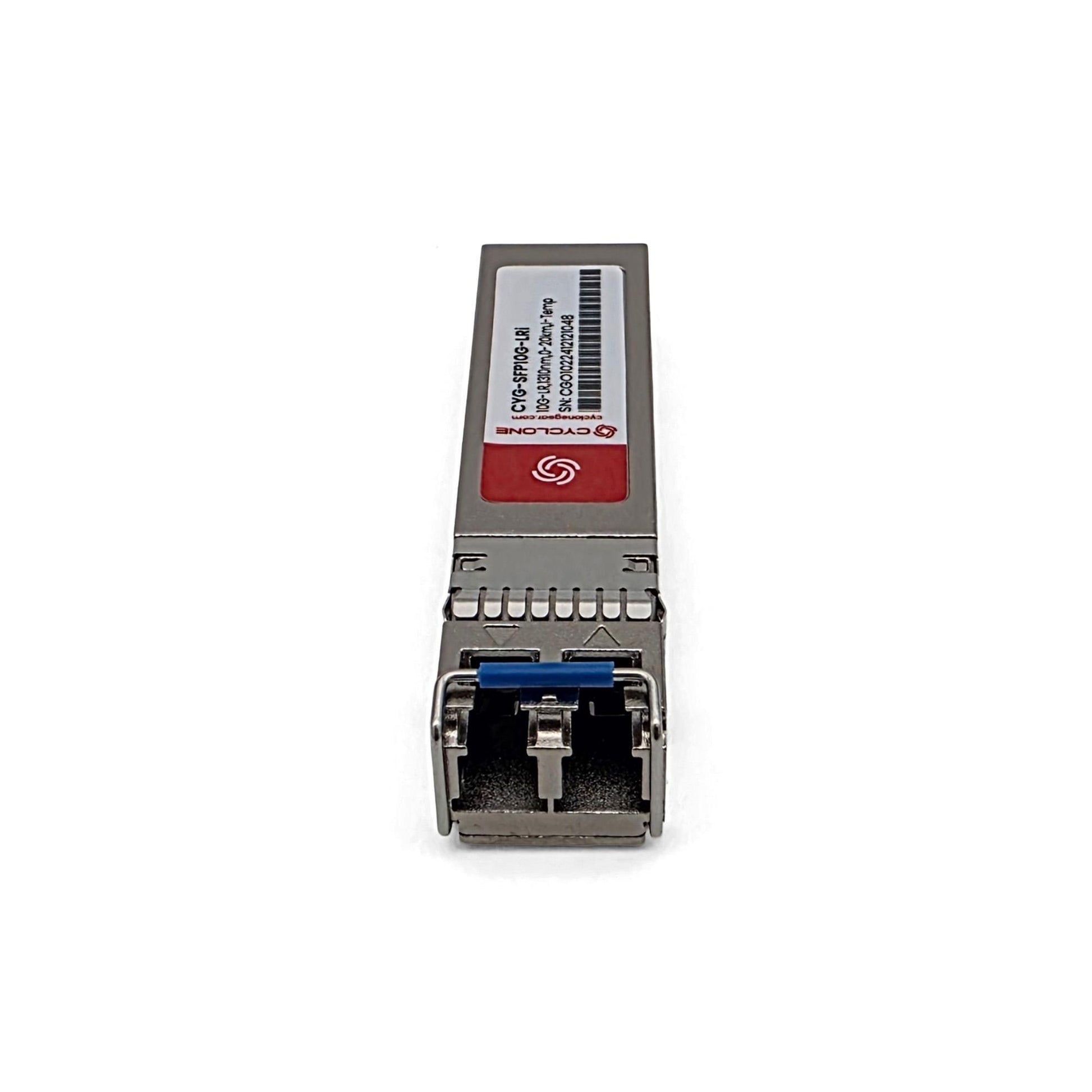

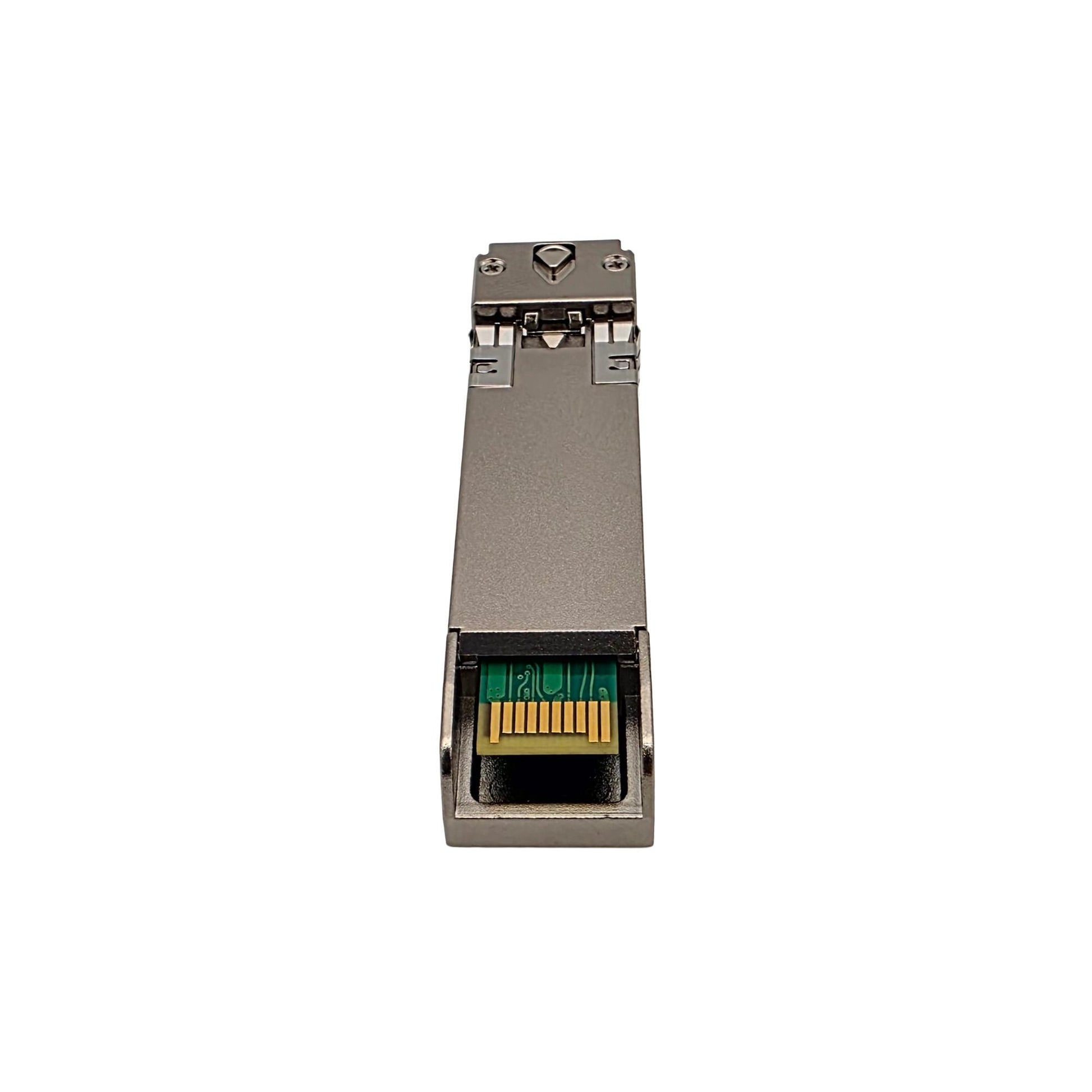

Cyclone CYG-SFP10G-LRi
Cyclone CYG-SFP10G-LRi

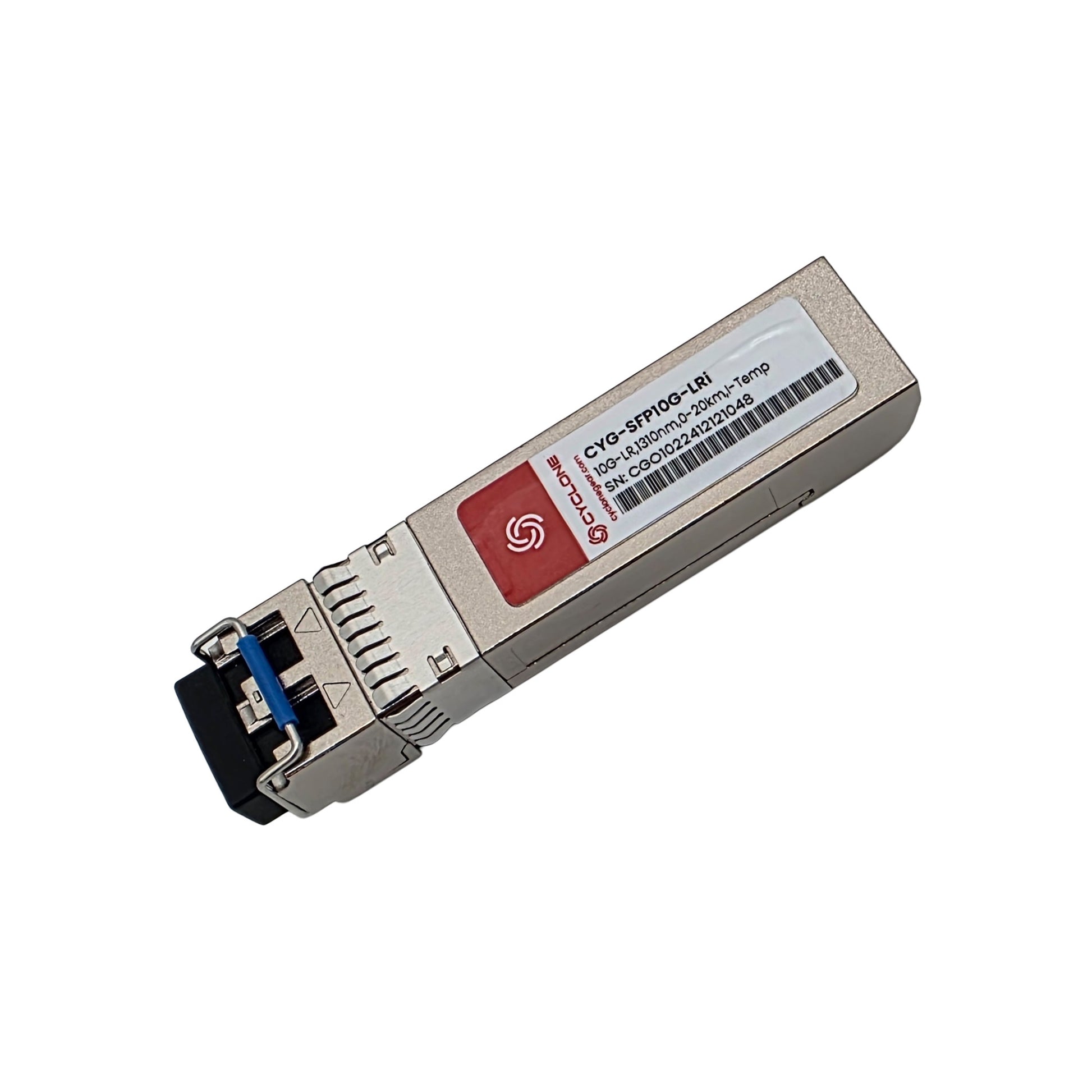

Cyclone SFP+ 10G-LR SMF 1310nm 0-20km Singlemode -40C to 85C
Regular price
$36.00 USD
Regular price
Sale price
$36.00 USD
Unit price
per
245 in stock
Cyclone CYG-SFP10G-LRi
Cyclone SFP+ 10G-LR SMF, 1310nm, 0-20km, Singlemode, -40C to 85C
Specifications CYG-SFP10G-LRi
| Technical Parameters | |
| Data Rate | 9.95 – 10.5 Gb/s |
| Wavelength | 1310nm |
| Connector | LC Duplex |
| Multimode Fiber | Singlemode (G.652, 9/125µm) |
| Distance | Up to 10 km |
| Power Budget | 8.4 dB |
| Laser Type | DFB |
| Receiver Type | PIN |
| Power Consumption | <1.2W |
| Voltage Supply | 3.3V |
| Operating Temperature | Commercial: 0°C to +70°C Industrial: -40°C to +85°C |
| Digital Diagnostics (DDM) | |
| Temperature | ±3°C (Commercial: -5 to +85°C Industrial: -40 to +95°C) |
| Voltage | ±3% (2.97 to 3.63V) |
| TX Power | -6 to +0.5 dBm (±2 dB) |
| RX Power | -14.4 to +0.5 dBm (±2 dB) |
| Bias Current | 0 to 100 mA (±10%) |
| Performance | |
| TX Power | -6 to +1 dBm |
| RX Sensitivity | ≤ -14.4 dBm |
| Extinction Ratio | +0.5 dBm |
| Receiver Overload | ≥ 3.5 dB |
| Compliance | MSA SFF-8431 & SFF-8472 Rev12 GR-253-CORE Compliant Class 1 Laser (IEC 60825 / FDA) FCC Part 15 Class B, EN 55022 ESD: IEC 61000-4-2 RoHS Compliant |
