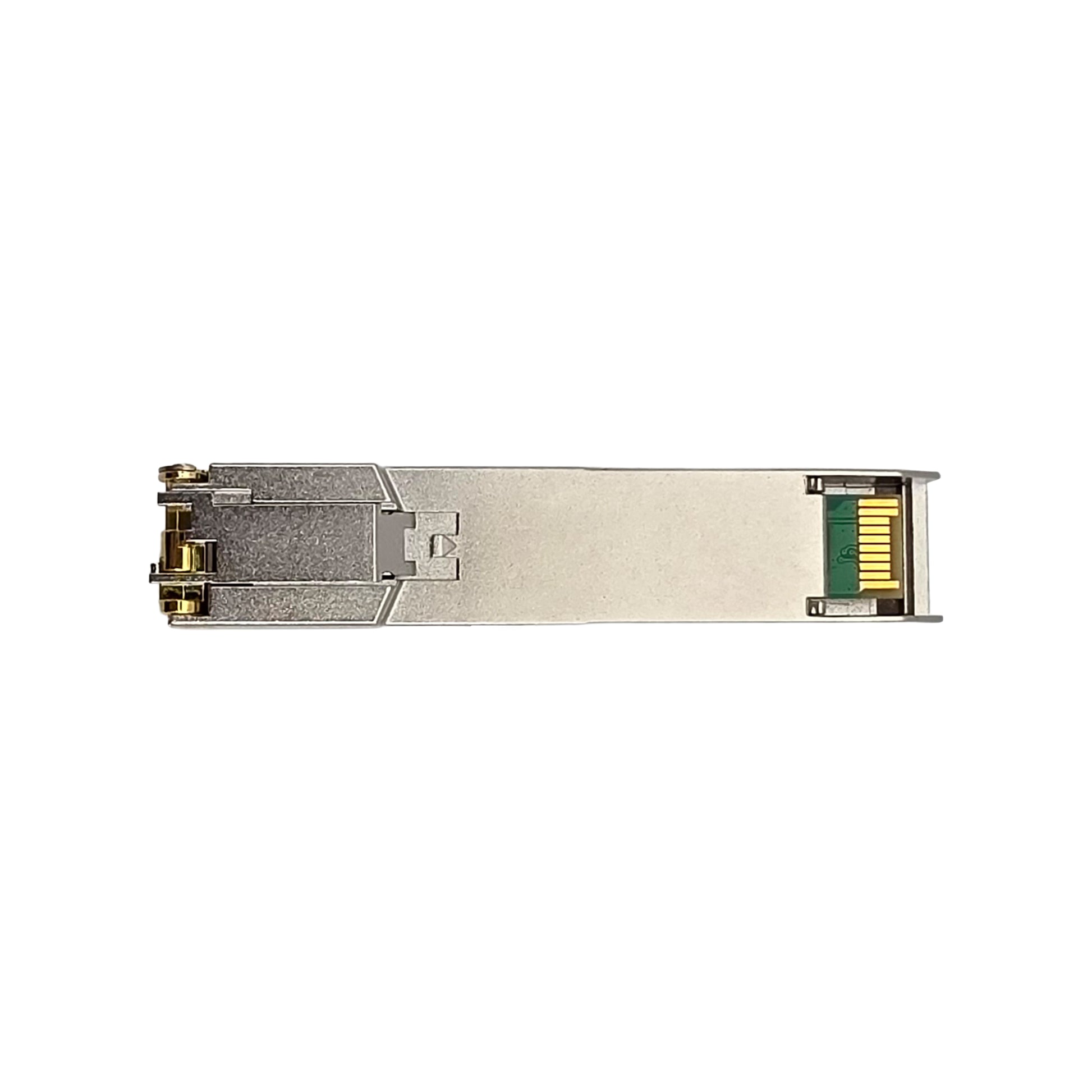

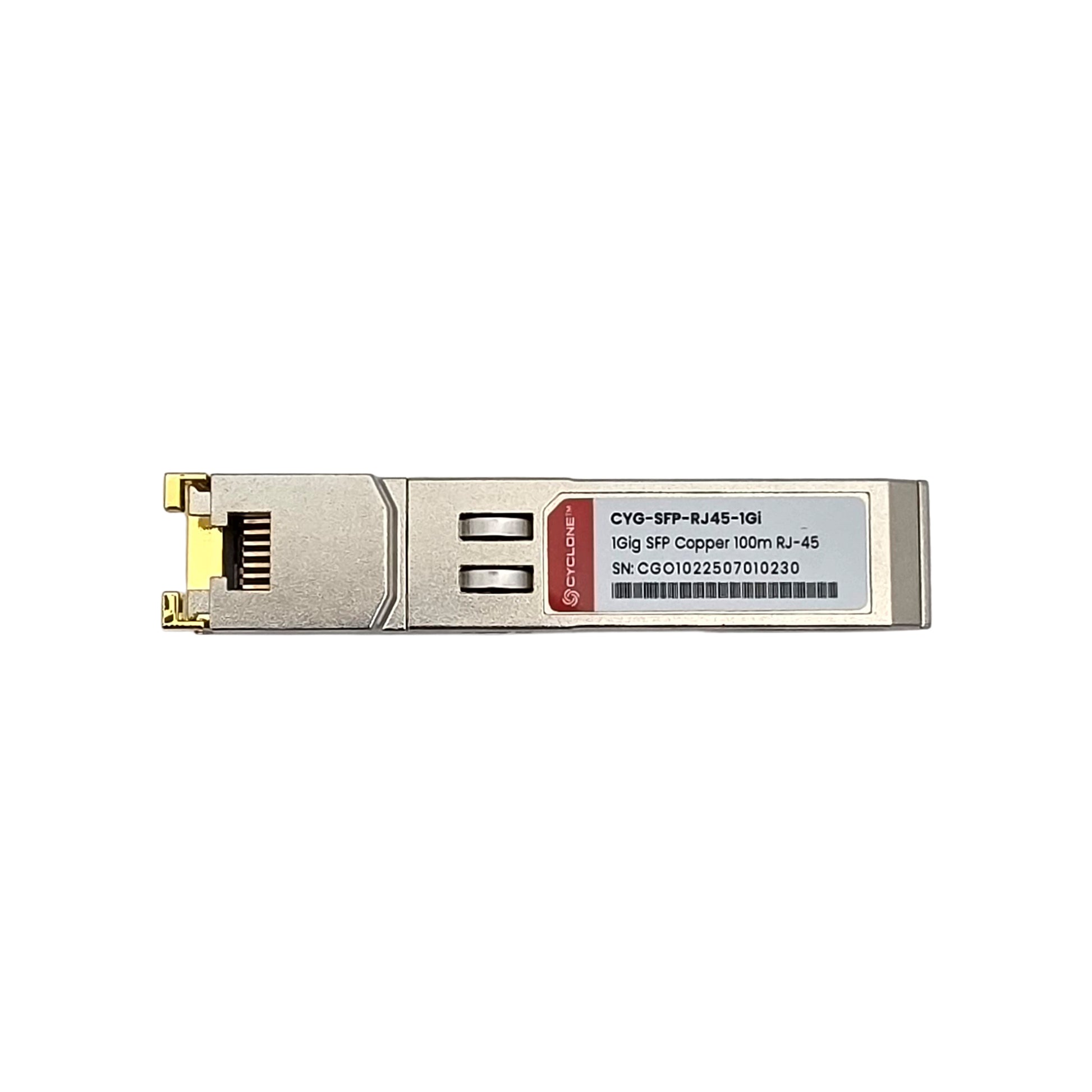

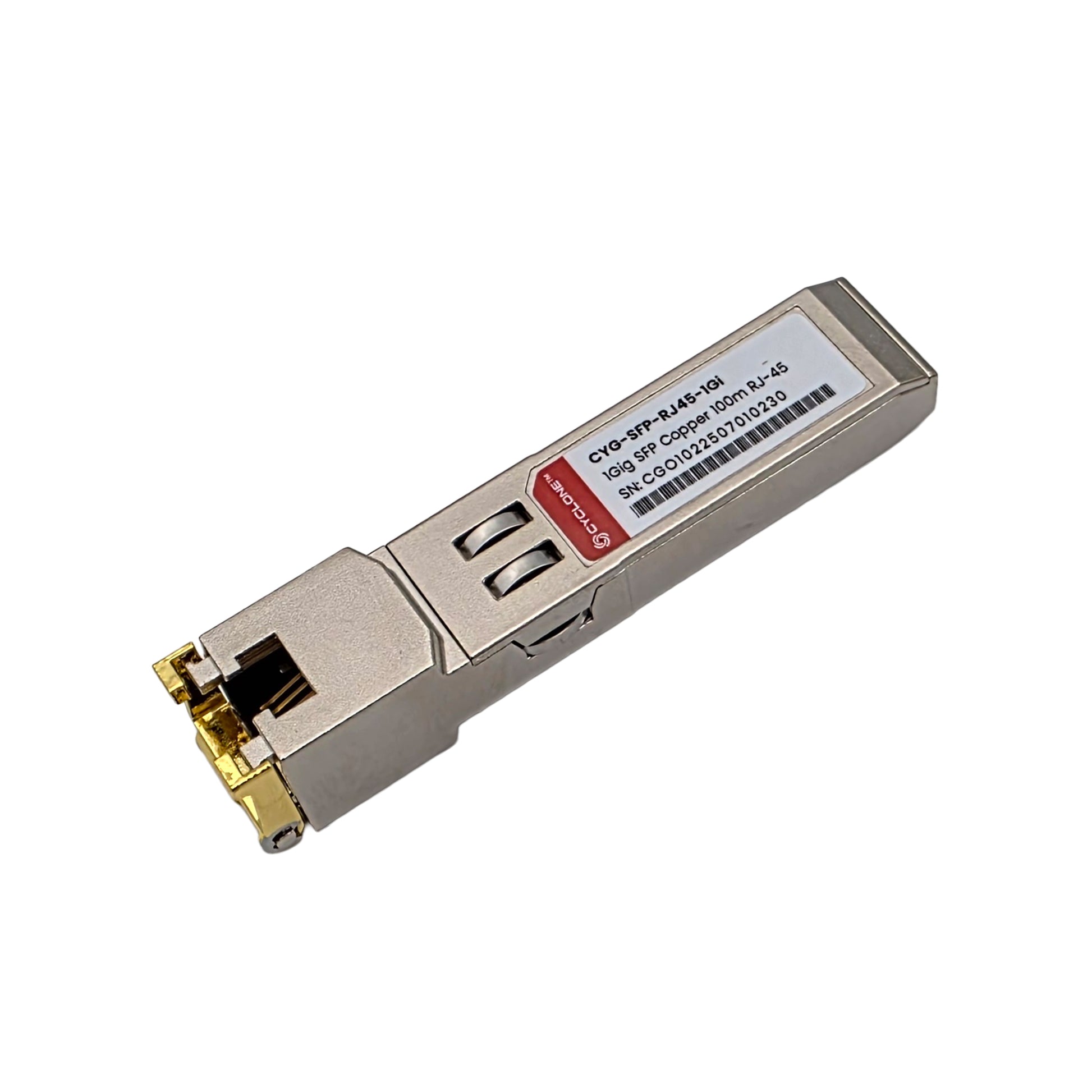

Cyclone CYG-SFP-I-RJ45-1G

The Cyclone 1000BASE-T SFP transceiver module is a hot-pluggable copper transceiver designed for Gigabit Ethernet applications over standard Cat5e/6 twisted-pair copper cabling. This compact SFP (Small Form-Factor Pluggable) module enables network equipment such as switches, routers, and media converters to deliver 1Gbps full-duplex performance without the need for fiber infrastructure.

Unlike standard optical modules, the Cyclone Copper SFP provides an RJ-45 interface that supports link lengths of up to 100meters, delivering reliable data transmission for short-reach or intra-rack connections. It includes LOS (Loss of Signal) detection support, ensuring accurate link monitoring and enhanced network diagnostics.

Built for industrial-grade environments, the transceiver operates across an extended temperature range of -40 °C to +85 °C, offering dependable performance in harsh or outdoor network conditions. The module complies with IEEE 802.3ab 1000BASE-T standards and is fully compatible with MSA-compliant SFP ports.

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1 Gbps (1000BASE-T compliant)
• Interface Type: RJ-45 Copper (Cat5e/6)
• Maximum Cable Distance: 100 m (328 ft)
• Supported Standard: IEEE 802.3ab 1000BASE-T
• Diagnostics: LOS (Loss of Signal) monitoring
• Operating Temperature: -40 °C to +85 °C (Industrial grade)
• Power Supply: +3.3 V nominal
• Compatibility: MSA-compliant SFP ports on switches, routers, and media converters

• Industrial and outdoor Ethernet networking
• Enterprise and data center copper uplinks
• Edge-switch or media converter connections
• Environments requiring extended-temperature operation

Specifications CYG-SFP-RJ45-1Gi
