SKU: CYG-SFP-1G-LXi
Cyclone CYG-SFP-I-1G-LX
Cyclone CYG-SFP-I-1G-LX

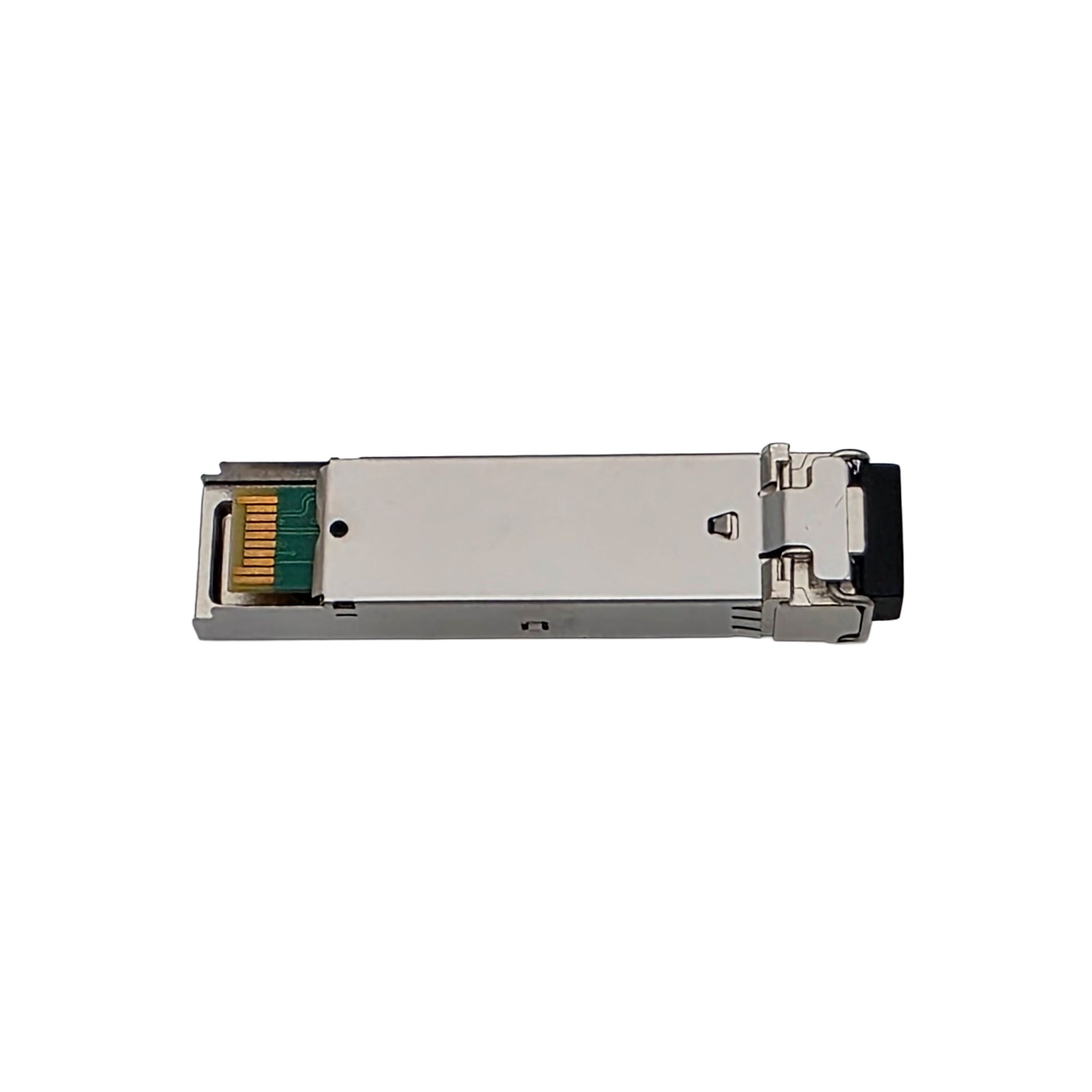

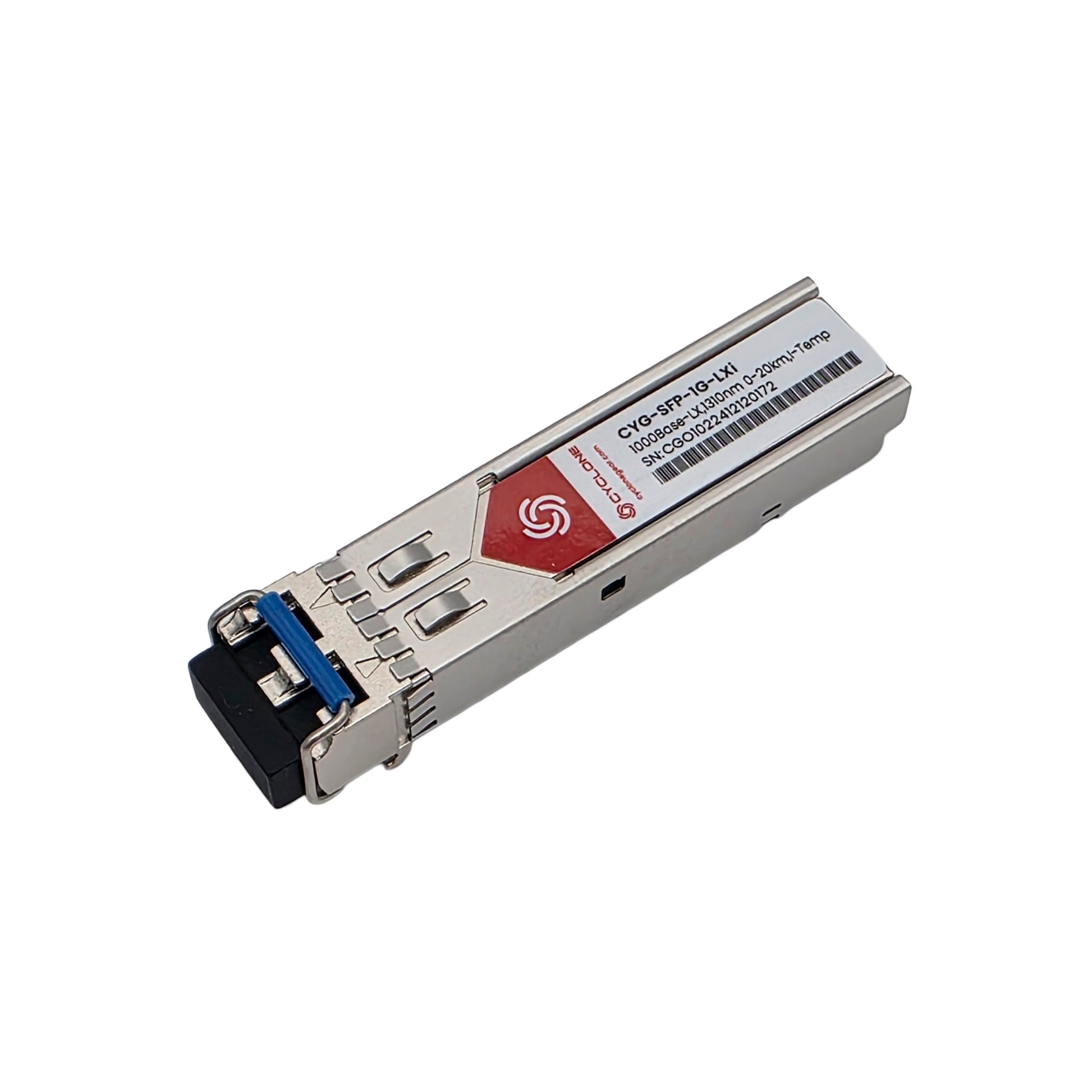

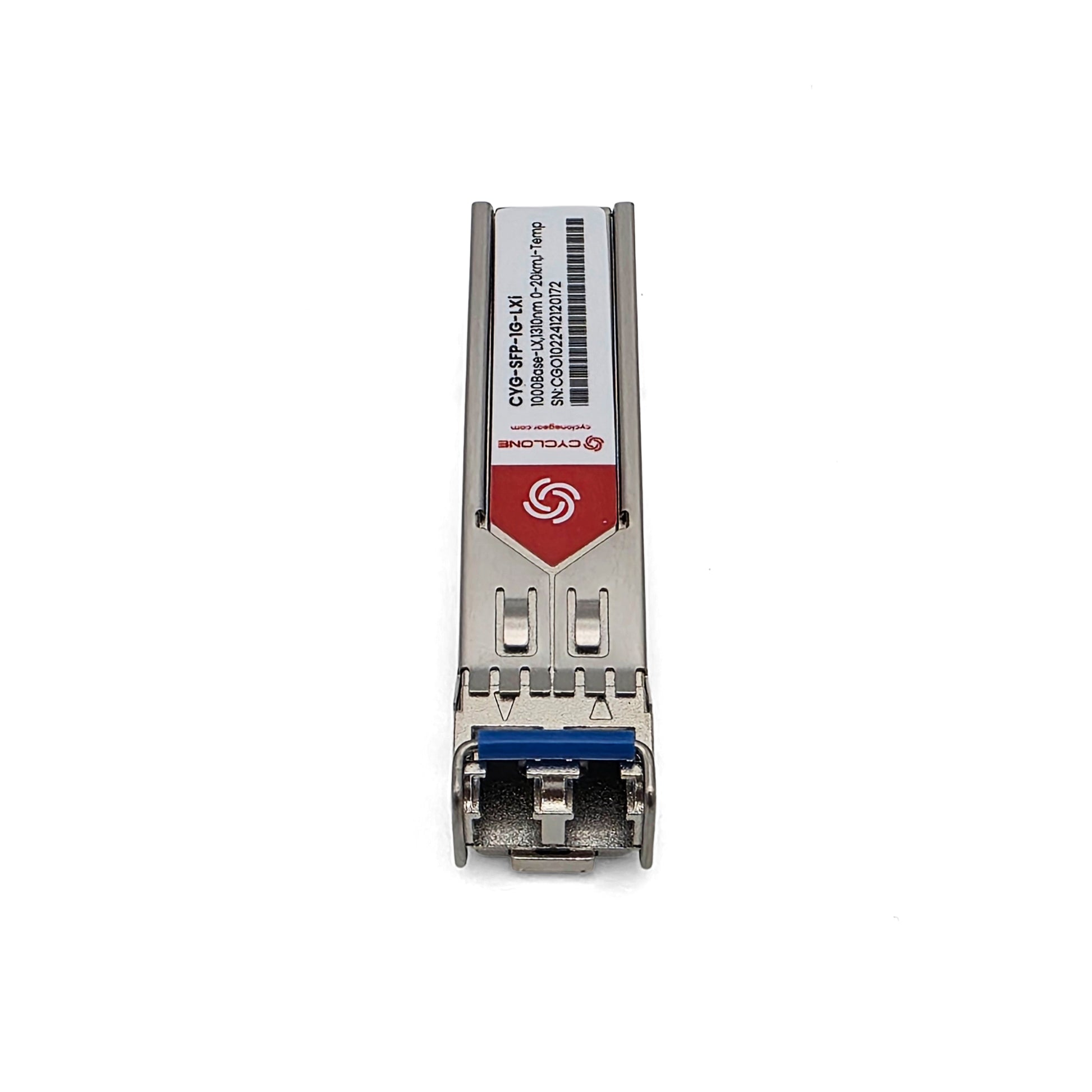

Cyclone 1G Single Mode SFP Module
Regular price
$19.00 USD
Regular price
Sale price
$19.00 USD
Unit price
per
323 in stock
Cyclone CYG-SFP-1G-Lxi
1G Single Mode SFP Module
Product Features- Speed: 1Gb/1000Base-LX
- Type: Single-Mode
- Range: 0-20km
- Temperature Range: -40C to 85C
Specifications CYG-SFP-1G-Lxi
| Technical Parameters | |
| Data Rate | 125 Mb/s – 1.25 Gb/s |
| Wavelength | 1310nm |
| Connector | LC Duplex |
| Multimode Fiber | Singlemode (G.652, 9/125µm) |
| Distance | Up to 20 km |
| Power Budget | 11–12 dB |
| Laser Type | FP |
| Receiver Type | PIN |
| Power Consumption | <700 mW |
| Voltage Supply | 3.3V |
| Operating Temperature | -40°C to 85°C |
| Digital Diagnostics (DDM) | |
| Temperature | ±3°C |
| Voltage | ±3% |
| TX Power | -12 to -1 dBm (±3 dB) |
| RX Power | -25 to 0 dBm (±3 dB) |
| Bias Current | 2 to 80 mA (±10%) |
| Performance | |
| TX Power | 125 Mb/s – 1.25 Gb/s |
| RX Sensitivity | Duplex LC |
| Extinction Ratio | 1310nm |
| Receiver Overload | Up to 20 km |
| Dimension | 1.75" x 0.75" x 6.25" inch |
| Weight | 0.1 lb |
| Compliance |
MSA SFF-8472 Rev12
Class 1 Laser (IEC 60825 / FDA) FCC Part 15 Class B / EN 55022 ESD: IEC 61000-4-2 RoHS Compliant |
