SKU: CYG-SFP-1G-SXc
Cyclone CYG-SFP-C-1G-SX
Cyclone CYG-SFP-C-1G-SX

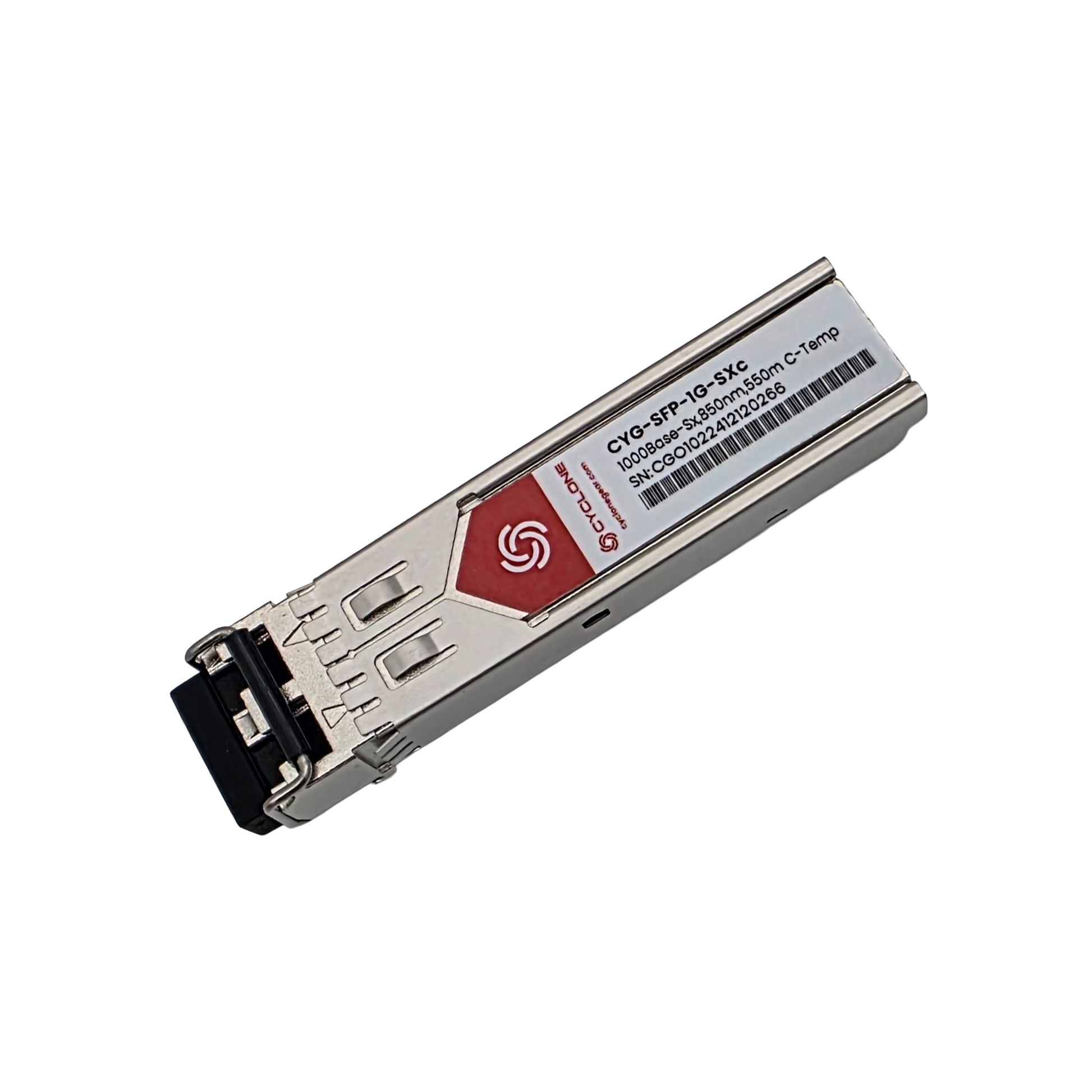

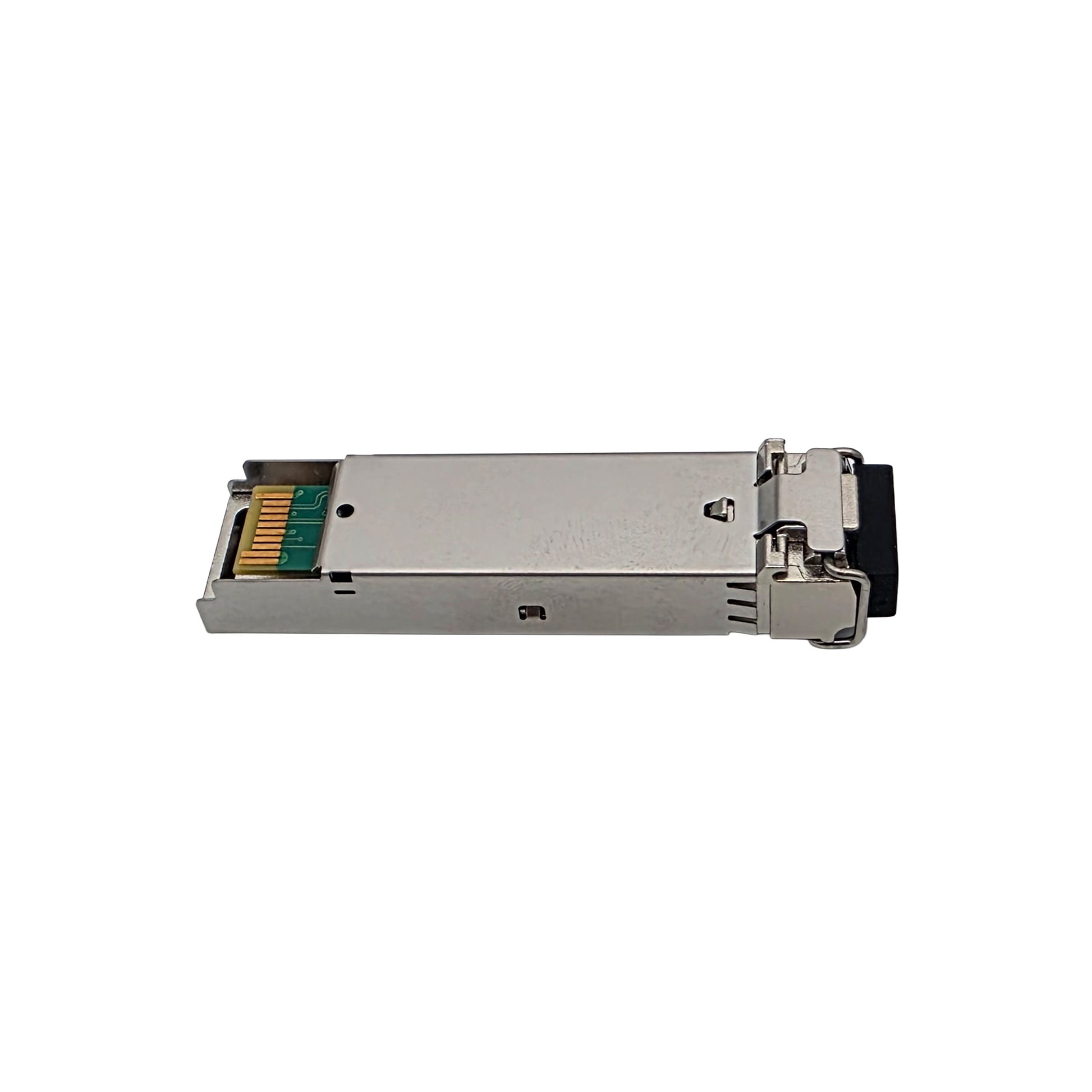

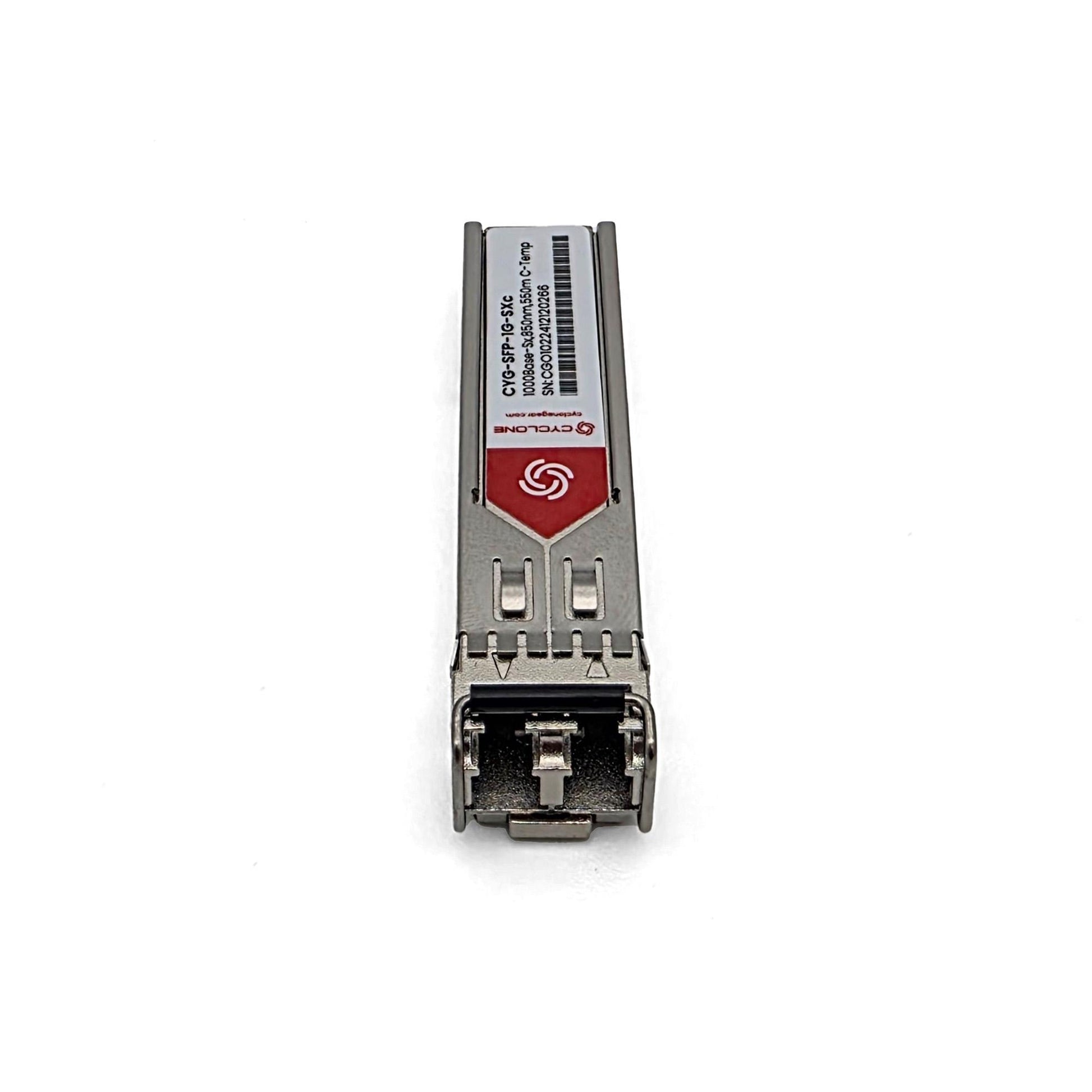

Cyclone 1G Multi Mode SFP Module
Regular price
$16.00 USD
Regular price
Sale price
$16.00 USD
Unit price
per
235 in stock
Cyclone CYG-SFP-1G-SXc
1G Multi Mode SFP Module
Product Features- Wavelength: 850nm
- Type: Multi Mode
- Speed: 1Gb
- Standard: 1000BASE-SX
- Operating Temperature: -40°C to 85°C
Specifications CYG-SFP-1G-SXc
| Technical Parameters | |
| Data Rate | 125 Mb/s – 1.25 Gb/s |
| Wavelength | 850nm |
| Connector | LC Duplex |
| Multimode Fiber |
50/125µm up to 550m
62.5/125µm up to 300m |
| Distance | Up to 550 m |
| Power Budget | 9 dB |
| Laser Type | VCSEL |
| Receiver Type | PIN |
| Power Consumption | <600 mW |
| Voltage Supply | 3.3V |
| Operating Temperature | -40°C to 85°C |
| Digital Diagnostics (DDM) | |
| Temperature | ±3°C |
| Voltage | ±3% (2.97 to 3.63V) |
| TX Power | 13 to 1 dBm (±3 dB) |
| RX Power | -21 to 0 dBm (±3 dB) |
| Bias Current | 2 to 15 mA (±10%) |
| Performance | |
| TX Power | -9 to -3 dBm |
| RX Sensitivity | ≥ -18 dBm |
| Extinction Ratio | 9 dB |
| Receiver Overload | 0 dBm |
| Dimension | 1.75" x 0.75" x 6.25" inch |
| Weight | 0.5 lb |
| Compliance |
MSA SFF-8472 Rev12
Class 1 Laser (IEC 60825 / FDA) FCC Part 15 Class B / EN 55022 ESD: IEC 61000-4-2 RoHS Compliant |
