SKU: CYG-SFP-BXD-10Gi

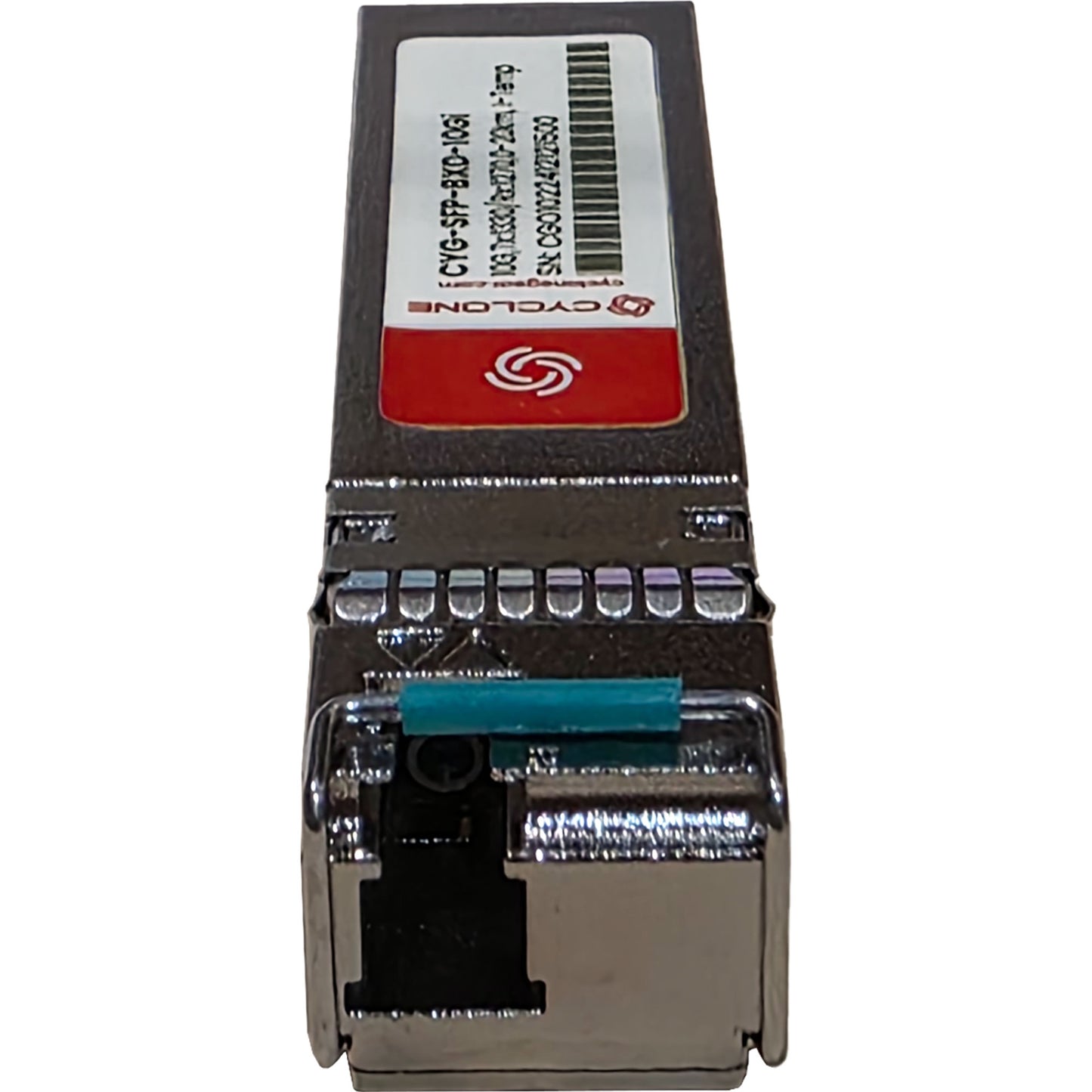

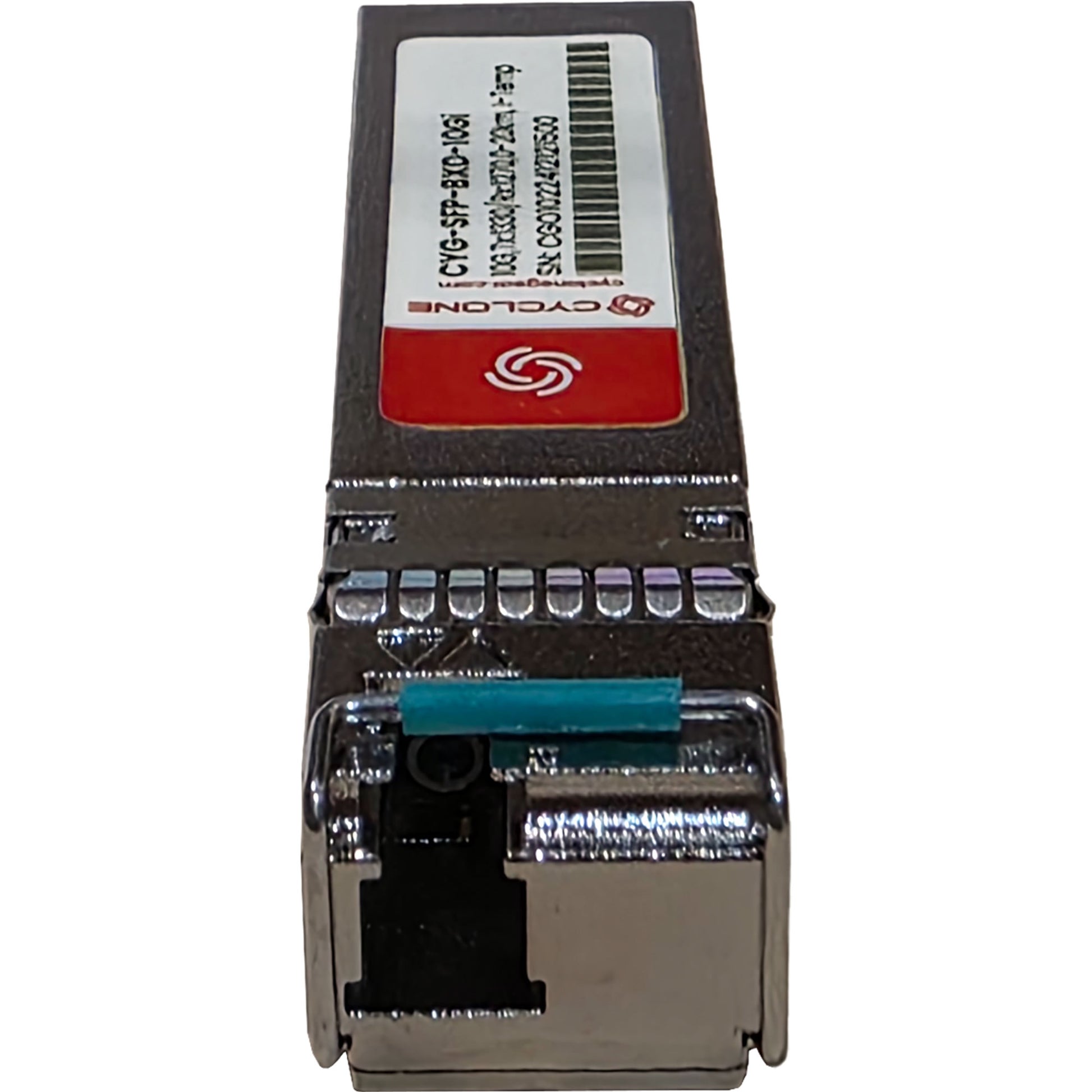

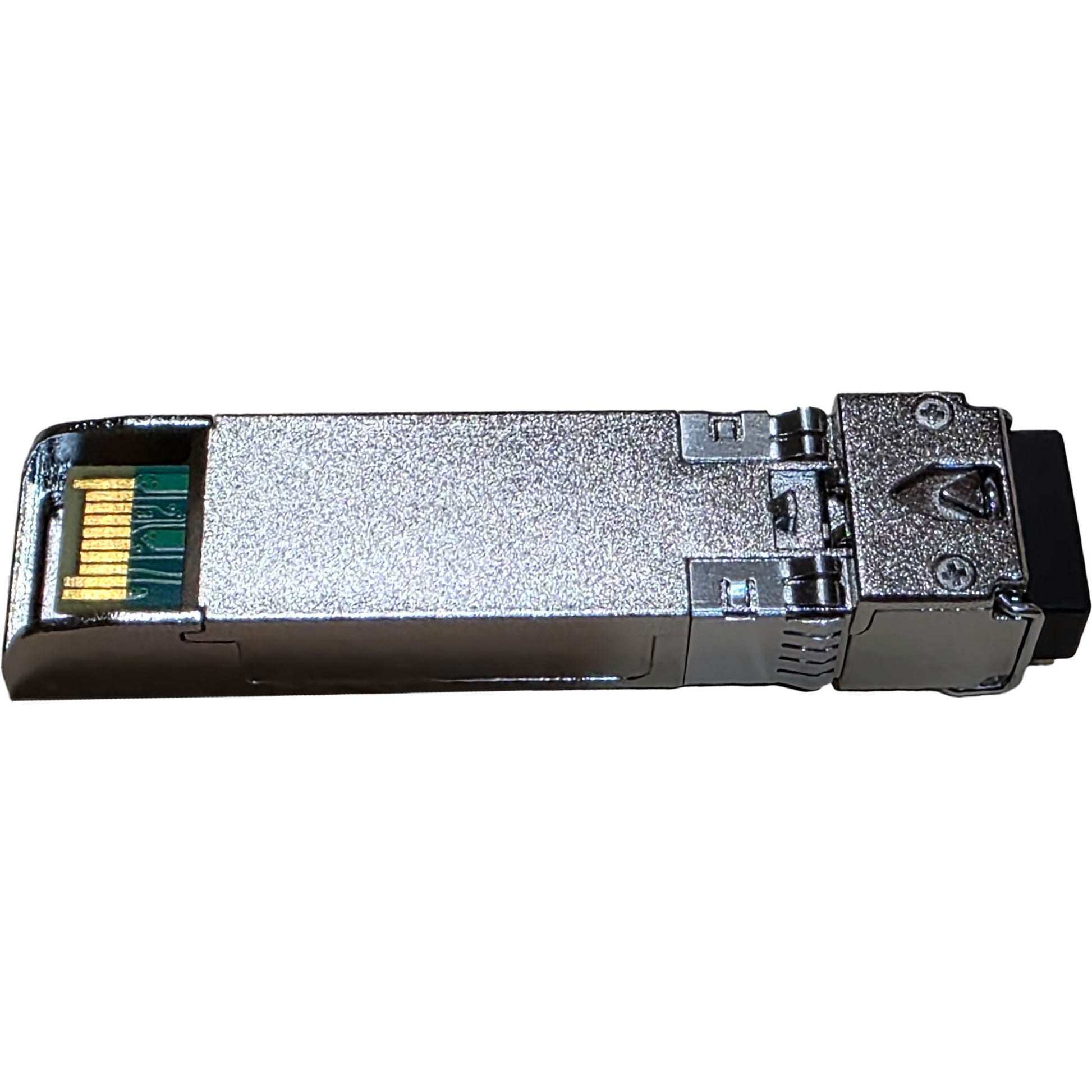

Cyclone CYG-SFP-BXD-10Gi
Cyclone CYG-SFP-BXD-10Gi
Cyclone 10Gb BIDI 1330/1270 SFP Transceiver Module
Regular price
$72.00 USD
Regular price
Sale price
$72.00 USD
Unit price
per
148 in stock
Cyclone CYG-SFP-BXD-10Gi
10Gb BIDI 1330/1270 SFP Transceiver Module
Specifications CYG-SFP-BXD-10Gi
| Technical Parameters | |
| Data Rate | Up to 10.3 Gb/s |
| Wavelength | 1270nm TX / 1330nm RX (BXU) 1330nm TX / 1270nm RX (BXD) |
| Connector | LC Duplex (Single Fiber Bi-Directional) |
| Multimode Fiber | 50/125µm up to 550m 62.5/125µm up to 300m |
| Distance | Up to 10 km |
| Laser Type | DFB |
| Receiver Type | APD |
| Power Consumption | <1.5W |
| Voltage Supply | 3.3V |
| Operating Temperature | Standard: 0°C to +70°C |
| Digital Diagnostics (DDM) | |
| Temperature | ±3°C (-5 to +85°C) |
| Voltage | ±3% (2.97 to 3.63V) |
| TX Power | -7.3 to -1 dBm (±2 dB) |
| RX Power | -12 to -1 dBm (±2 dB) |
| Bias Current | 0 to 100 mA (±10%) |
| Performance | |
| TX Power | -7 to +0.5 dBm |
| RX Sensitivity | -14.4 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Receiver Overload | +0.5 dBm |
| Compliance | MSA SFF-8472 Rev12 Class 1 Laser (IEC 60825 / FDA) FCC Part 15 Class B / EN 55022 ESD: IEC 61000-4-2 RoHS Compliant |
