SKU: CYG-SFP-10G-SRc

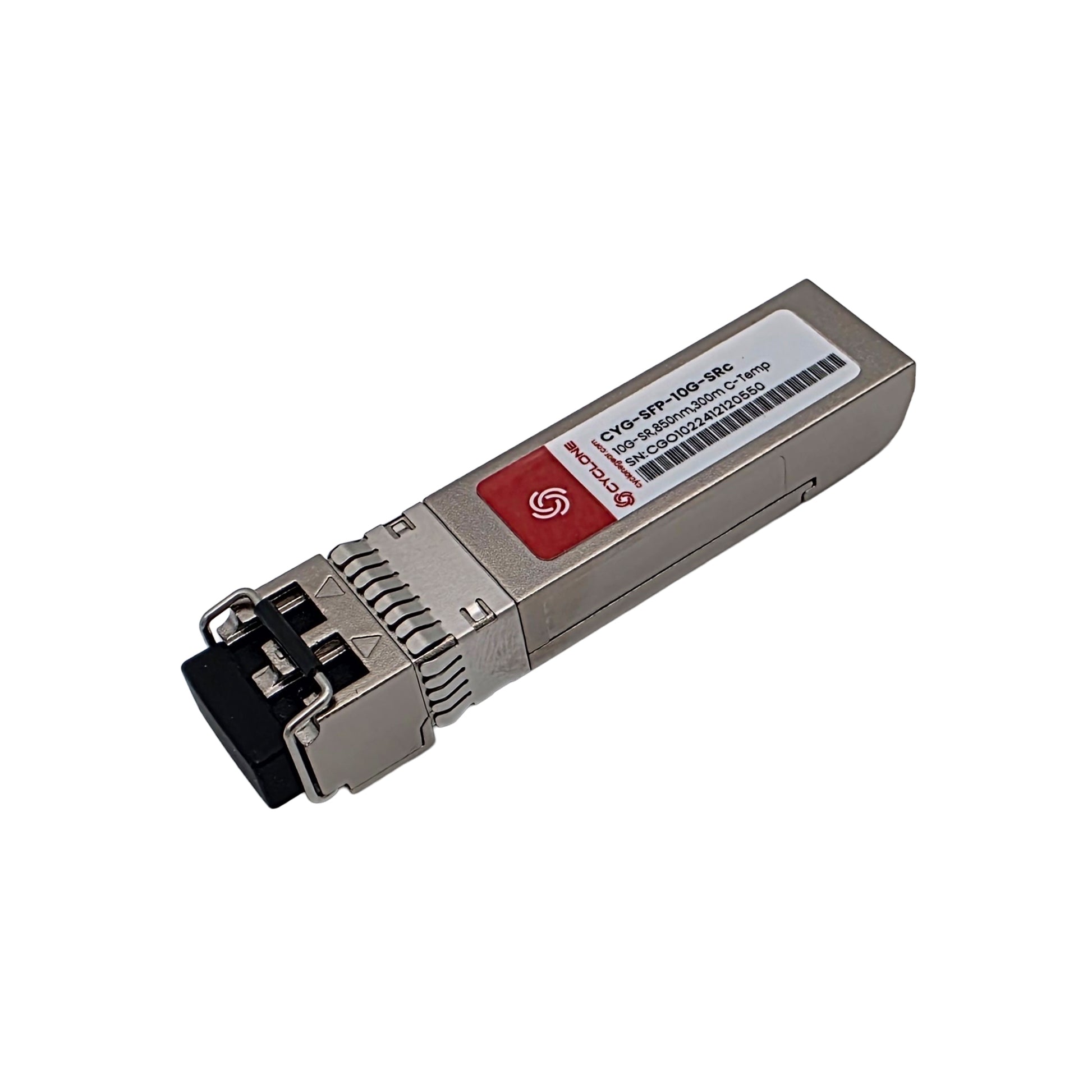

Cyclone CYG-SFP-10G-SRc
Cyclone CYG-SFP-10G-SRc
Cyclone 10Gb Multi Mode SFP+ Module
189 in stock
Cyclone CYG-SFP-10G-SRc
10Gb Multi Mode SFP+ Module
The SFP+ 10 Gb-SR transceiver module is a hot-pluggable optical interface designed for high-speed 10 Gigabit Ethernet applications over multimode fiber (MMF). Operating at a nominal wavelength of 850 nanometers, this short-reach (SR) module provides reliable, high-bandwidth data transmission for data centers, enterprise networks, and aggregation links.
Built to meet the IEEE 802.3ae 10GBASE-SR standard, the transceiver supports link distances of up to 300 meters when used with OM3-rated fiber optic cable, or up to 400–550 meters on OM4/OM5 multimode fiber. The optical interface employs a VCSEL (Vertical-Cavity Surface-Emitting Laser) transmitter and a PIN photodiode receiver, ensuring low power consumption and high optical performance.
Designed for commercial operating environments, the module functions within a temperature range of 0 °C to 70 °C, making it ideal for standard rackmount switches, routers, and optical network interface cards that support SFP+ form factor transceivers.
Product Features- Form Factor: SFP+
- Data Rate: 10Gbps
- Wavelength: 850nm
- Fiber Type: Multimode
- Maximum Reach: 300m
- Optical Interface: Duplex LC connector
- Operating Temperature: 0 °C to 70 °C (Commercial grade)
Specifications CYG-SFP-10G-SRc
| Technical Parameters | |
| Data Rate | 1.0 – 10.5 Gb/s |
| Wavelength | 850nm |
| Connector | LC Duplex |
| Multimode Fiber | Multimode (50/125µm OM3) |
| Distance | Up to 300 km |
| Power Budget | - |
| Laser Type | VCSEL |
| Receiver Type | GaAs IDP |
| Power Consumption | <800 mW |
| Voltage Supply | 3.3V |
| Operating Temperature | Commercial: 0°C to +70°C Industrial: -40°C to +85°C |
| Digital Diagnostics (DDM) | |
| Temperature | ±3°C (-5 to +85°C) |
| Voltage | ±3% (2.97 to 3.63V) |
| TX Power | -7.3 to -1 dBm (±2 dB) |
| RX Power | -12 to -1 dBm (±2 dB) |
| Bias Current | 0 to 100 mA (±10%) |
| Performance | |
| TX Power | -7.3 to -1 dBm |
| RX Sensitivity | -9.9 dBm |
| Extinction Ratio | ≥ 3 dB |
| Receiver Overload | -1 dBm |
| OMA Sensitivity | ≤ -11.1 dBm |
| Wavelength Range | 840–860nm |
| LOS Assert / Deassert | -30 dBm / -13 dBm |
| Compliance | MSA SFF-8431 & SFF-8472 Rev12 Class 1 Laser (IEC 60825 / FDA) FCC Part 15 Class B, EN 55022 ESD: MIL-STD-883E, IEC 61000-4-2 RoHS Compliant |
