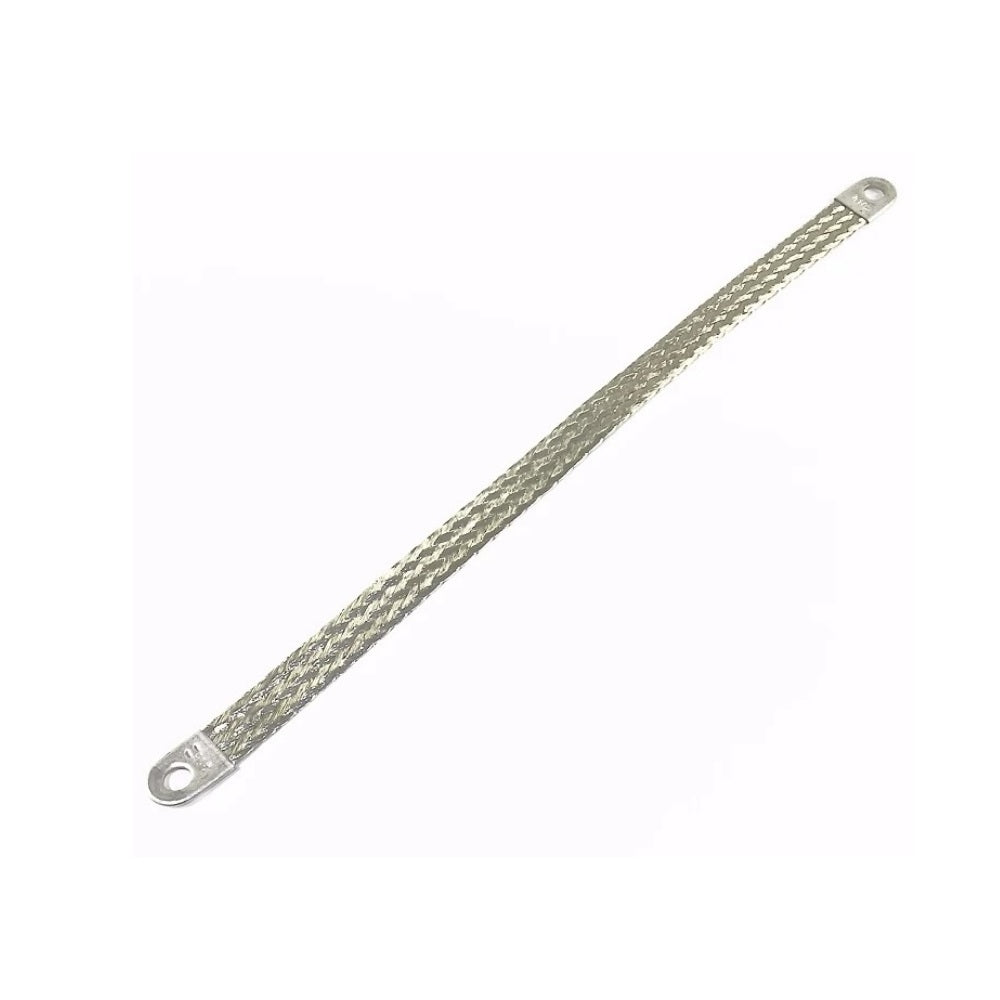

Cyclone 4AWG Grounding Strap, 15mm Braid Width, 5/16" Lug Diameter, 18in
Out of stock
Buy from Authorized Distributors
Couldn't load pickup availability
Cyclone CYG-NCA-BOND-STRAP-18IN
4AWG Grounding Strap, 15mm Braid Width, 5/16" Lug Diameter, 18in
This professional-grade, high-conductivity flat braided ground strap is engineered for exceptional electrical bonding and grounding applications. Manufactured from premium 4 AWG tinned copper, it provides a highly flexible, lowimpedance path to ground, effectively dissipating static, electrical faults, and lightning currents.
The flat woven braid configuration delivers superior surface area compared to round wire, significantly minimizing the skin effect under high-frequency transient or AC conditions. It is ideal for applications demanding frequent movement, structural expansion, or vibration absorption.
Features:
- Oxidation & Corrosion Resistance: Premium electro-tin plating ensures outstanding protection against atmospheric moisture, salt spray, and harsh outdoor environments, preventing copper oxidation and galvanic corrosion at contact points.
- High-Frequency Performance: The woven flat braid design yields an extremely low RF impedance and maximizes total surface area, optimal for EMI/RFI shielding and lightning protection.
- Vibration & Motion Tolerance: Delivers exceptional fatigue resistance, making it perfect for dynamic bridging across door hinges, moving parts, engines, and industrial machinery where solid conductors would fail.
- Pre-Terminated Precision: Seamlessly crimped heavy-duty lugs ensure secure, permanent mechanical connections and maximum current flow with minimal voltage drop.
Applications:
- Telecommunications & Wireless Networks: Grounding for Remote Radio Units (RRU/RRH), base station antennas, tower structures, and coaxial surge protection panels.
- Enclosures & Data Centers: Equipment rack grounding, server cabinets, and electrical enclosure door bonding.
- Automotive, Marine & Heavy Machinery: Engine-to-chassis grounding block straps, battery negative returns, and marine bonding networks.
- Renewable Energy Systems: Equipotential bonding for solar photovoltaic (PV) racking structures and wind power inverters.
Specifications CYG-NCA-BOND-STRAP-18IN
| Product Type | Flat Braided Bonding / Grounding Strap |
| Wire Gauge (Equivalent) | 4 AWG (American Wire Gauge) |
| Overall Length | 18.0 inches (approx. 457.2 mm) |
| Measurement Basis | Measured from Center Hole to Center Hole |
| Braid Width | 15.0 mm (approx. 0.59 inches) |
| Material Composition | High-purity Tinned Copper (Cu-ETP / Electrolytic Tough Pitch) |
| Finish / Color | Electro-Tinned / Bright Silver Finish |
| Terminal Hardware | Heavy-Duty Seamless Compression Lugs (Both Ends) |
| Lug Stud Size / Hole Diameter | 5/16 inch (approx. 7.94 mm / M8 compatible) |
| Flexibility Category | High-Flexibility Woven Structure |
