Cyclone CYG-NCA-ADJ-BATSF-US

Cyclone CYG-NCA-ADJ-BATSF-US

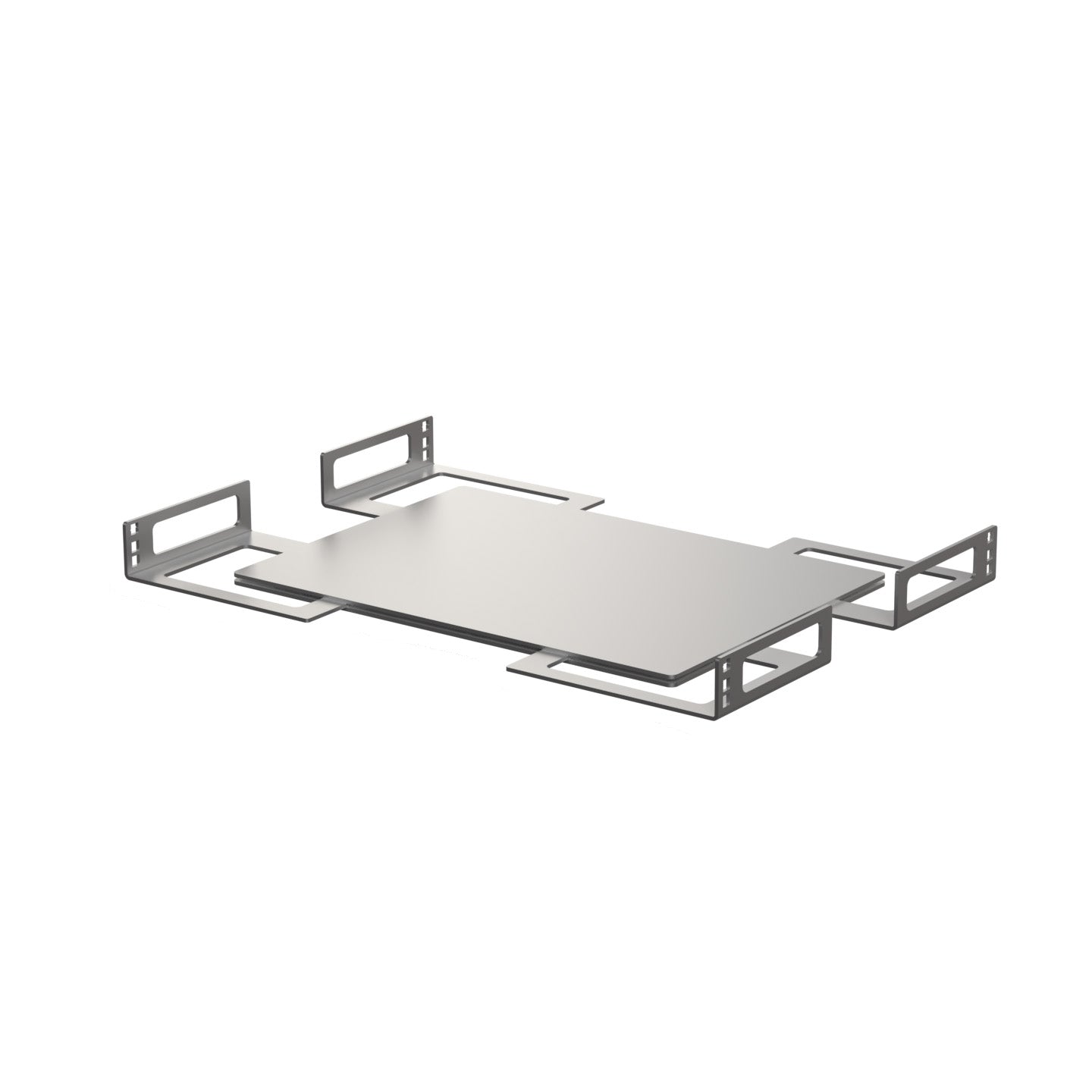

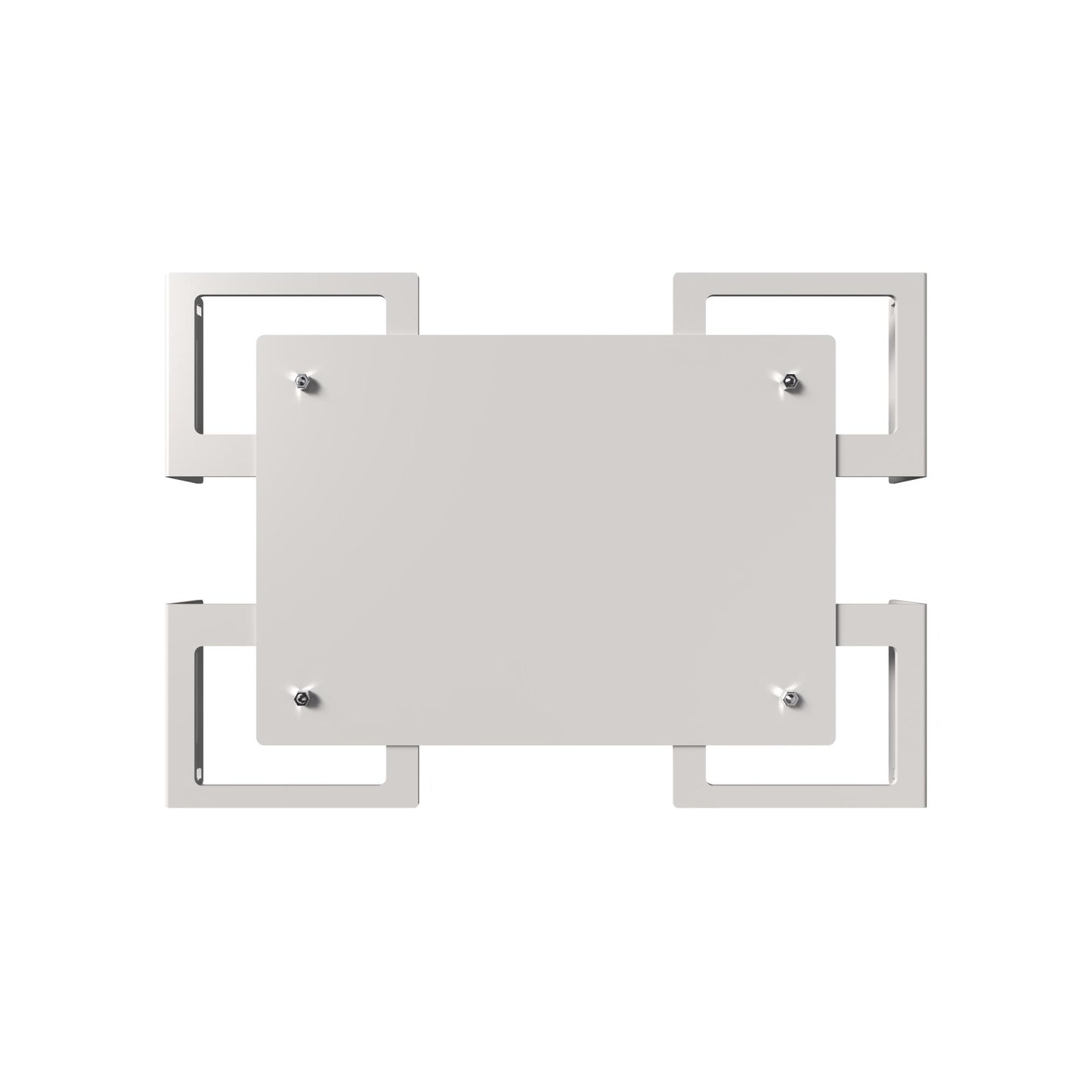

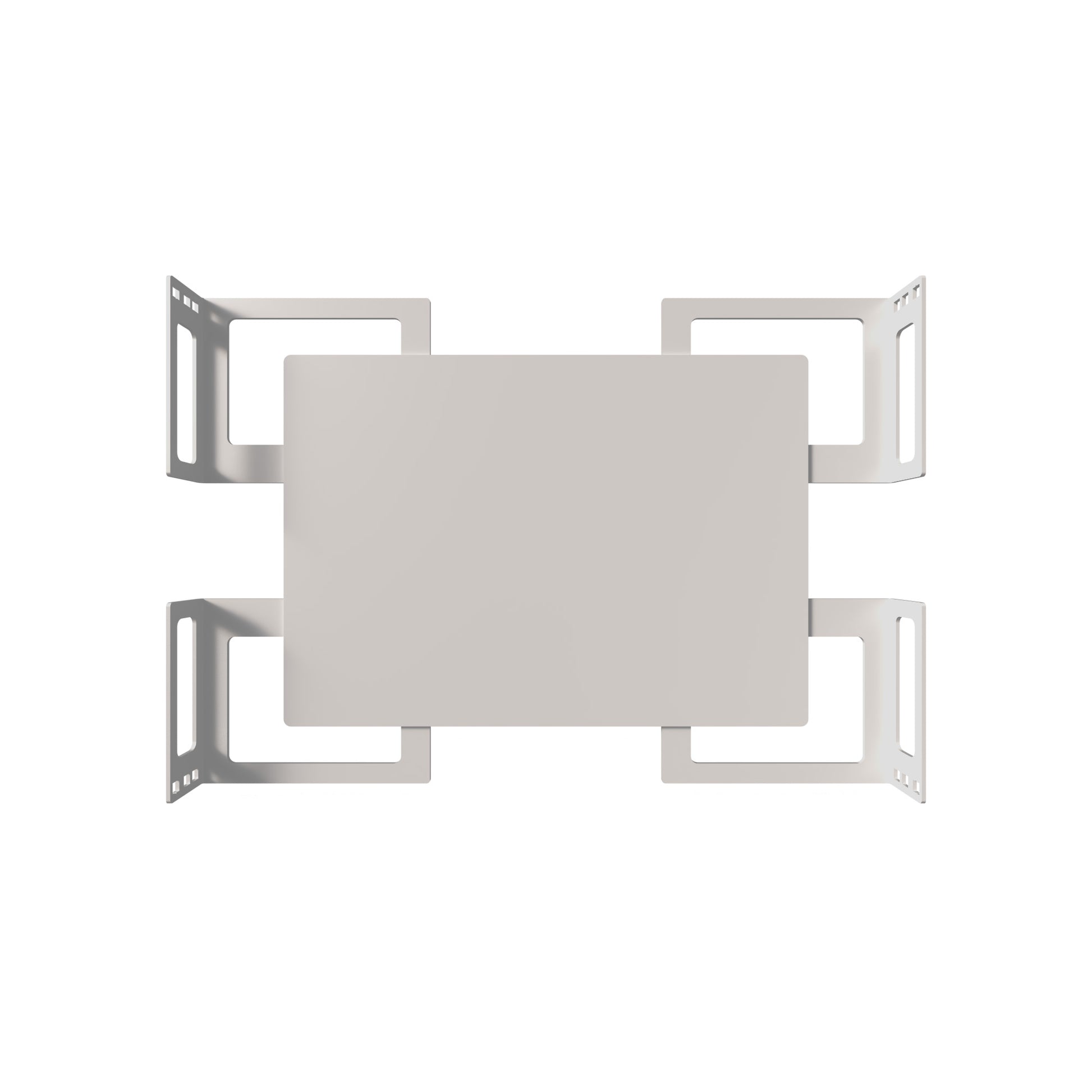

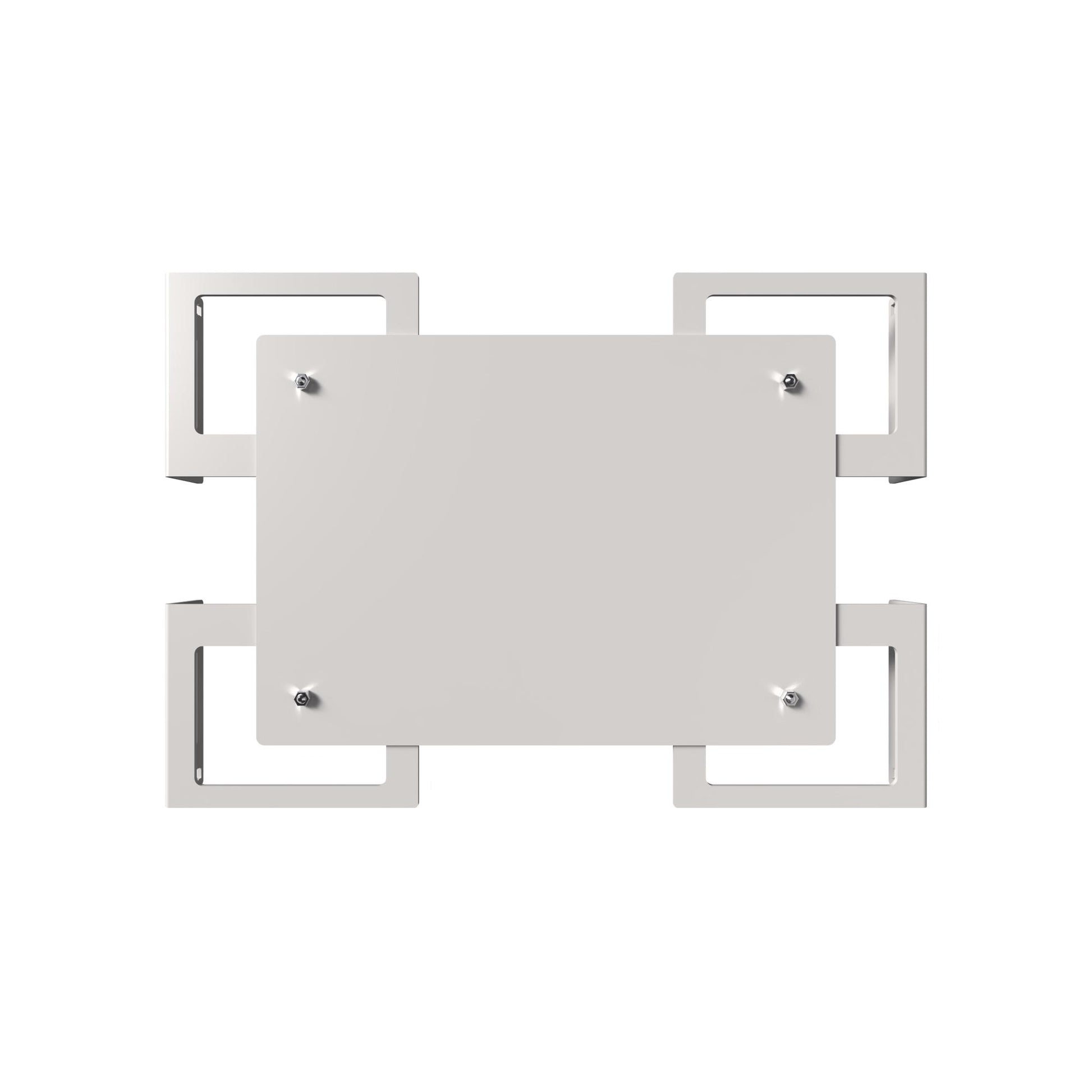

Network Cabinet 1U 4 Post Adjustable Battery Shelf, Made in USA

The Cyclone Two-Way Adjustable Battery Shelf is a purpose-built mounting solution designed specifically for Cyclone Series 25×25 and 34×34 telecom enclosures. Unlike fixed-width shelves, this unit features a unique dual-position mounting system that allows field technicians to configure it for either standard 19-inch or 23-inch rack equipment without additional hardware or replacement parts. Constructed from heavy-duty 10 gauge steel with a durable white powder coat finish, it delivers 100 lb static load capacity — making it ideal for VRLA, AGM, and sealed lead-acid battery deployments in ISP, WISP, and broadband infrastructure installations.

Two-Way Rack Adjustment

Reconfigures between 19" and 23" rack widths — one shelf covers both standards, eliminating the need for separate SKUs.

Heavy-Guage Construction

10 gauge steel (ASTM A569) delivers structural rigidity under sustained heavy loads in field environments.

Enclosure-Specific Design

Engineered as a drop-in fit for Cyclone 25×25 and 34×34 series — no drilling, cutting, or modification needed.

White Powder Coat Finish

Corrosion-resistant finish matches Cyclone Series enclosure interiors and withstands typical telecom environments.

100 lb Static Load Rating

Supports full battery strings and UPS units for backup power in telecom and broadband deployments

Fast Field Installation

Mounts directly inside Cyclone enclosures with standard hardware — minimal setup time for technicians.

Compatible Enclosures:

Cyclone Series 25x25

• Compact telecom enclsosure
• Supports 19” or 23” rack configuration

Cyclone Series 34x34

• Full-size telecom enclosure
• Supports 19” or 23” rack configuration

Features:

• 1U adjustable battery shelf design
• Compatible with standard network cabinets
• Adjustable depth for flexible mounting
• Durable heavy-duty steel construction
• Made in USA

Typical Applications:

• ISP & WISP field site battery backup systems
• UPS and DC power systems in telecom enclosures
• Edge network and broadband infrastructure nodes
• Tower and rooftop equipment power staging

Important Note

This shelf is designed exclusively for use with Cyclone Series 25×25 and 34×34 enclosures. Compatibility with other enclosure brands or sizes has not been verified. Always verify battery dimensions and total weight against the 100 lb static load rating prior to installation.

Specifications CYG-NCA-ADJ-BATSF-US
