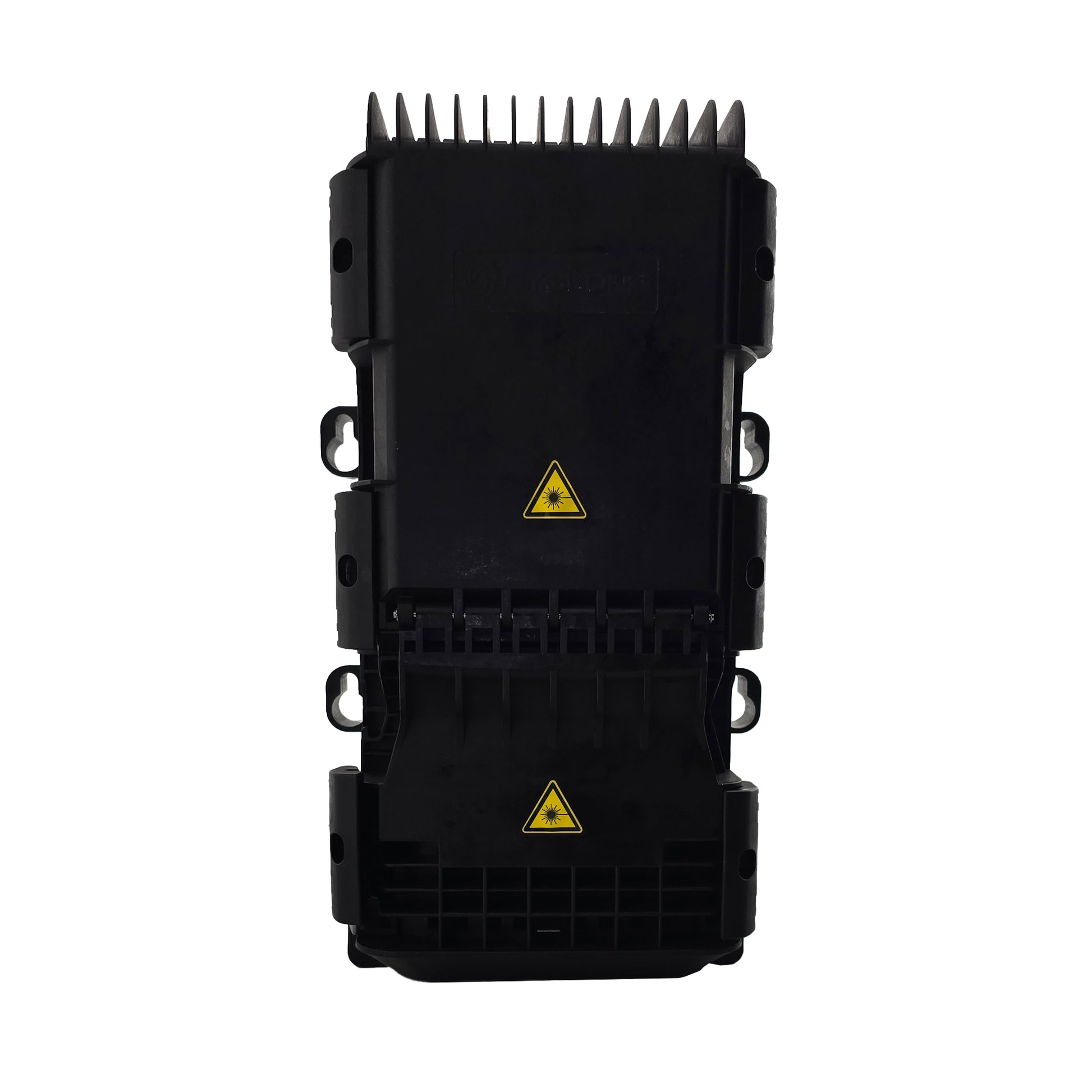

• Cyclone Fiber Splice Enclosure, 4x PLC, 1x8 Splitter

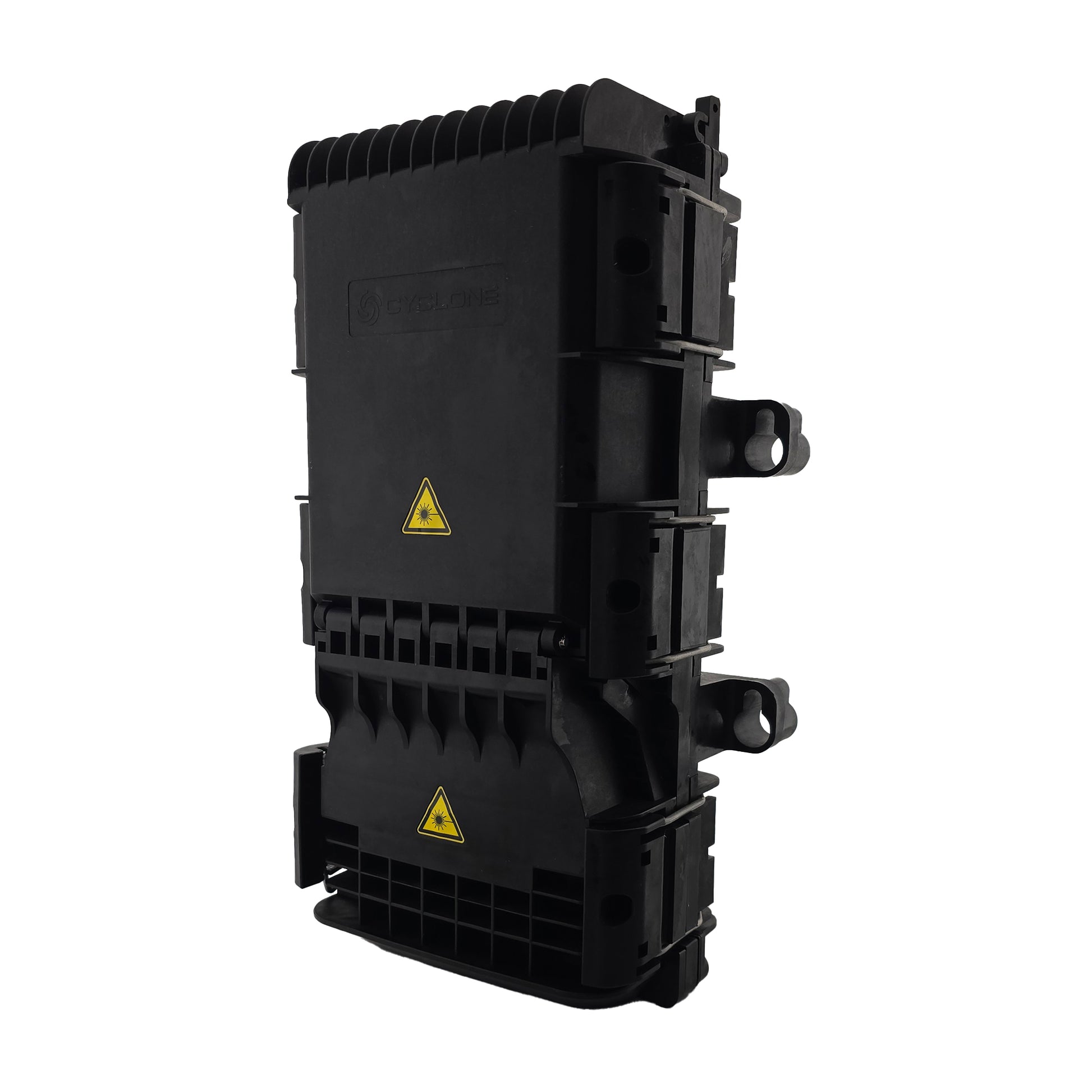

  • CYG-FSE60-8-1X8 Three Quarter Cyclone Fiber Splice Enclosure

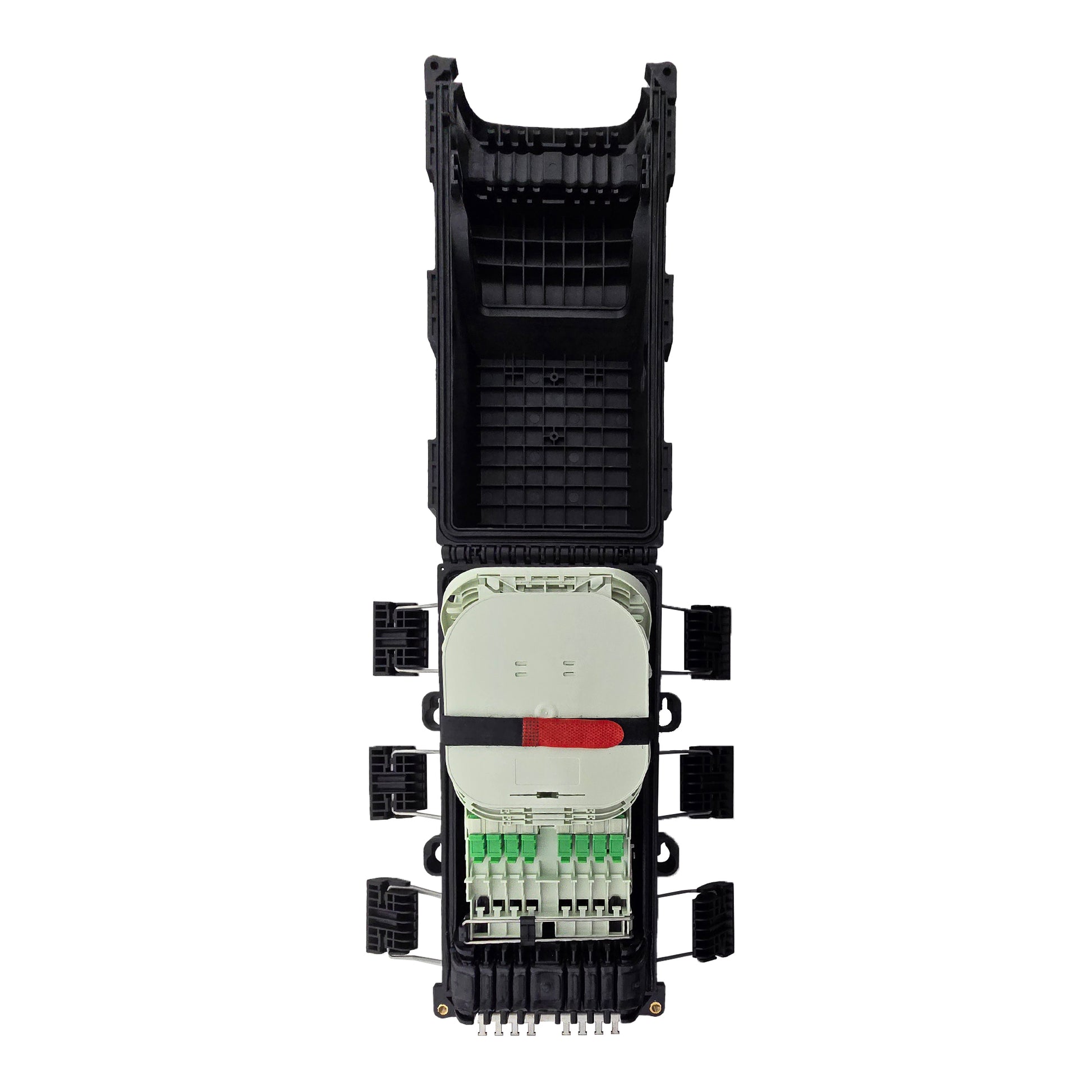

  • CYG-FSE60-8-1X8 Inside Cyclone Fiber Splice Enclosure

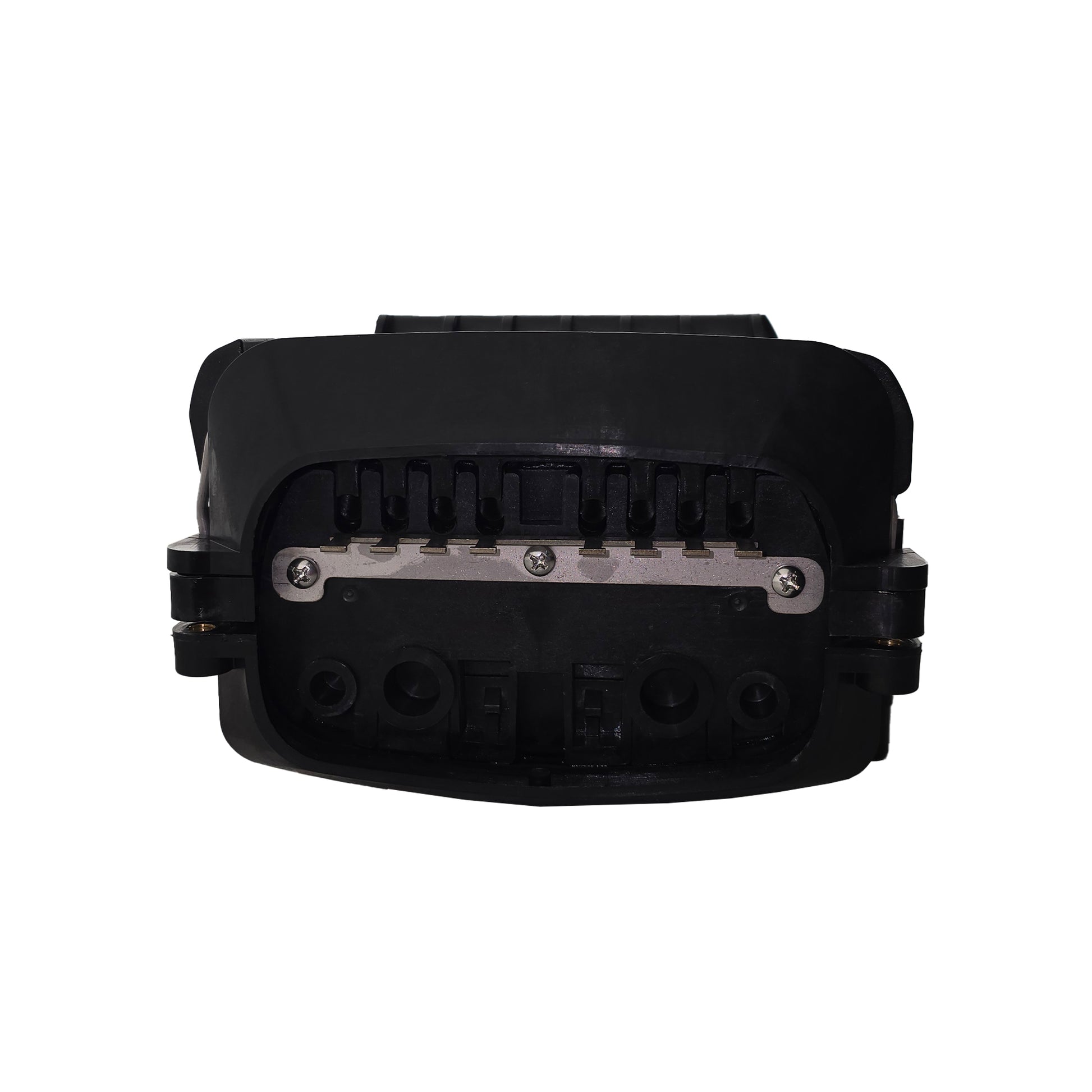

  • CYG-FSE60-8-1X8 Ports Cyclone Fiber Splice Enclosure
1 4

SKU: CYG-FSE60-8-1x8

Cyclone CYG-FSE60-8-1x8

Cyclone CYG-FSE60-8-1x8

Cyclone Fiber Splice Enclosure, 4x PLC, 1x8 Splitter

$129.00 USD
$129.00 USD
Sale Sold out

Out of stock

Buy from Authorized Distributors

WAV ISP Supplies MBSI WAV ISP Supplies Canada
View Datasheet
View full details
IP-68, 60x Total Splice Capacity, 5x Trays, 8x Flat Drop Demarc, 8x SCAPC coupler

Specifications CYG-FSE60-8-1x8

1:8 Splitter
Insertion loss≤10.5dB
APC return loss≥55dB
Size337 x 195 x 128mm (13.27 x 7.68 x 5.04in)
Maximum Capacity8 (SC/APC)
FOSC Capacity60 Cores
Weight2050g (4.5 lb
Largest Cable Diameter16mm x 2 / 11mm x 2 (0.63in x 2 / 0.43in x 2)
Environmental
Operating temperature-40°C +65°C (-40°F + 149°F)
Relative Humidity≤85% (+30°C)
Atmospheric pressure70Kpa~106Kpa
Protection classIP68
