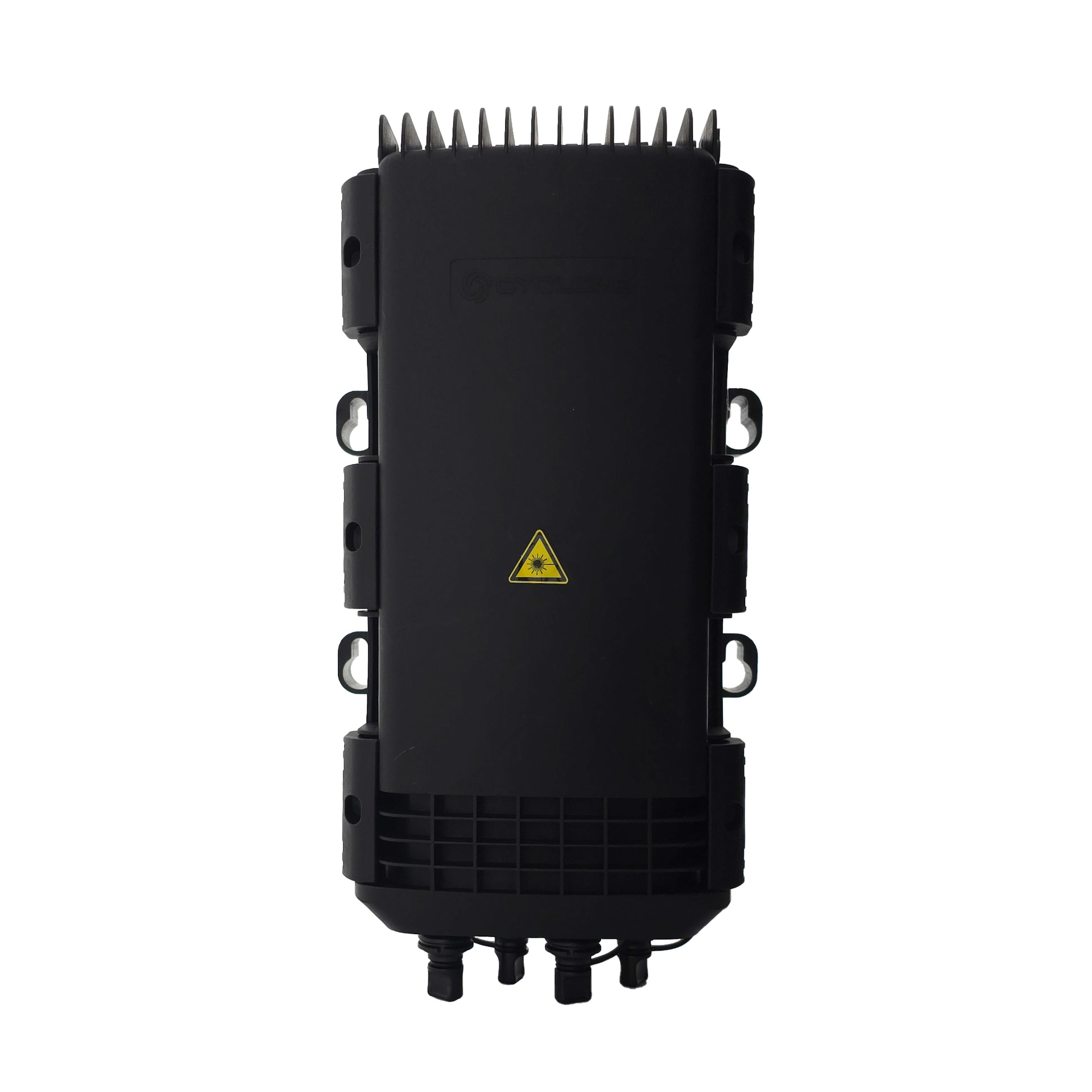

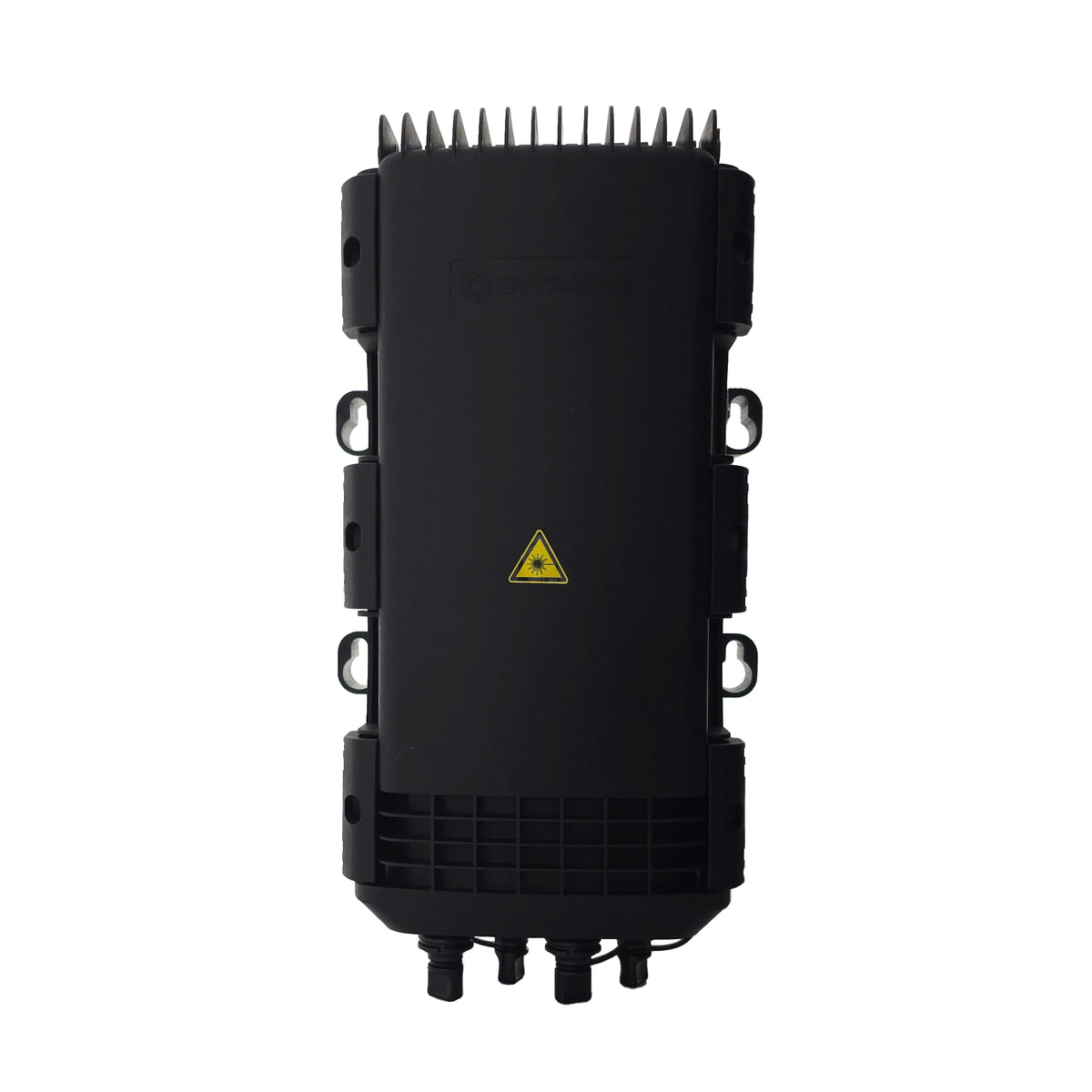

• Cyclone Fiber Splice Enclosure, 6x PLC, 1x4 Splitter

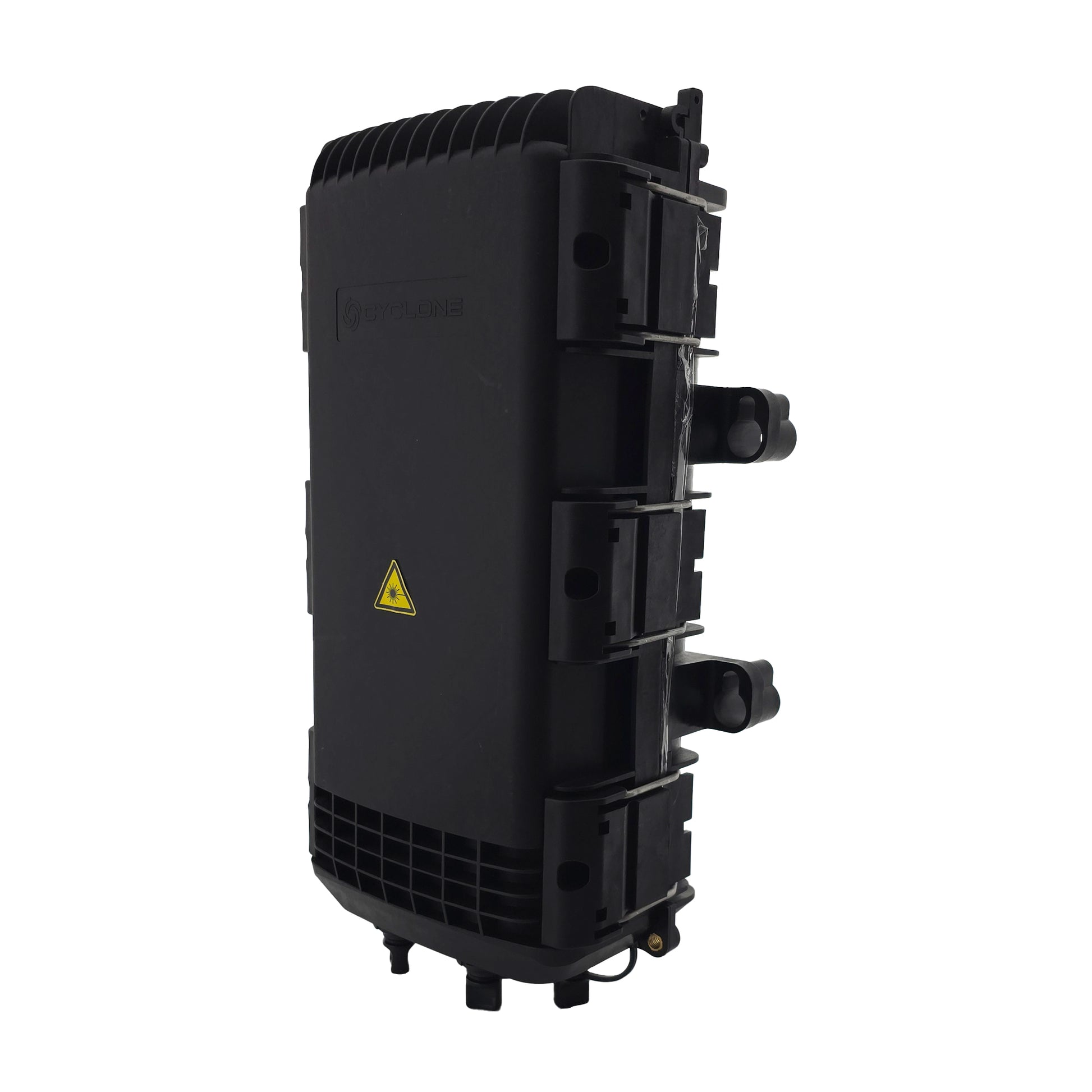

  • Cyclone CYG-FSE60-4OPT-1X4 Fiber Splice Enclosure

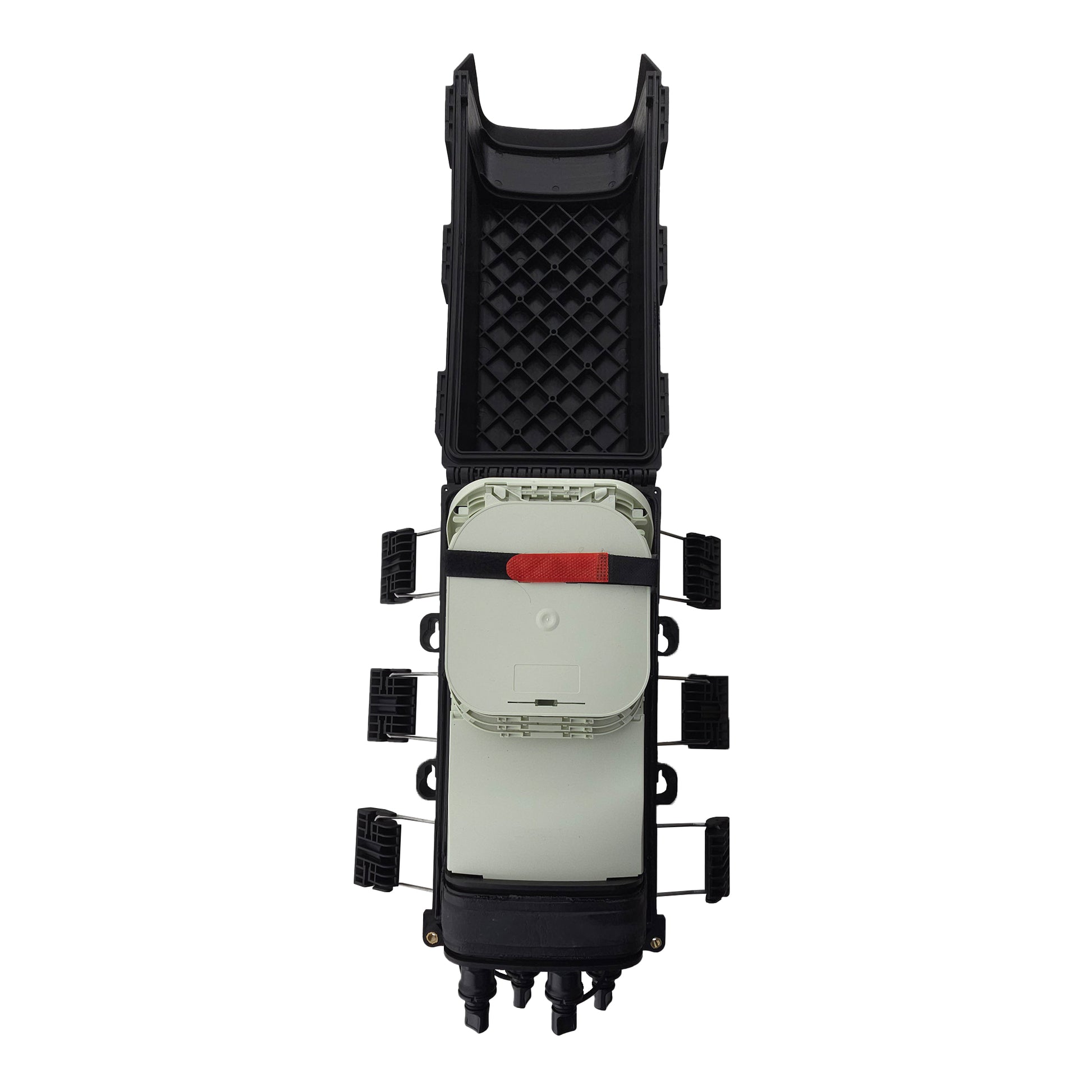

  • CYG-FSE60-4OPT-1X4 Inside Cyclone Fiber Splice Enclosure

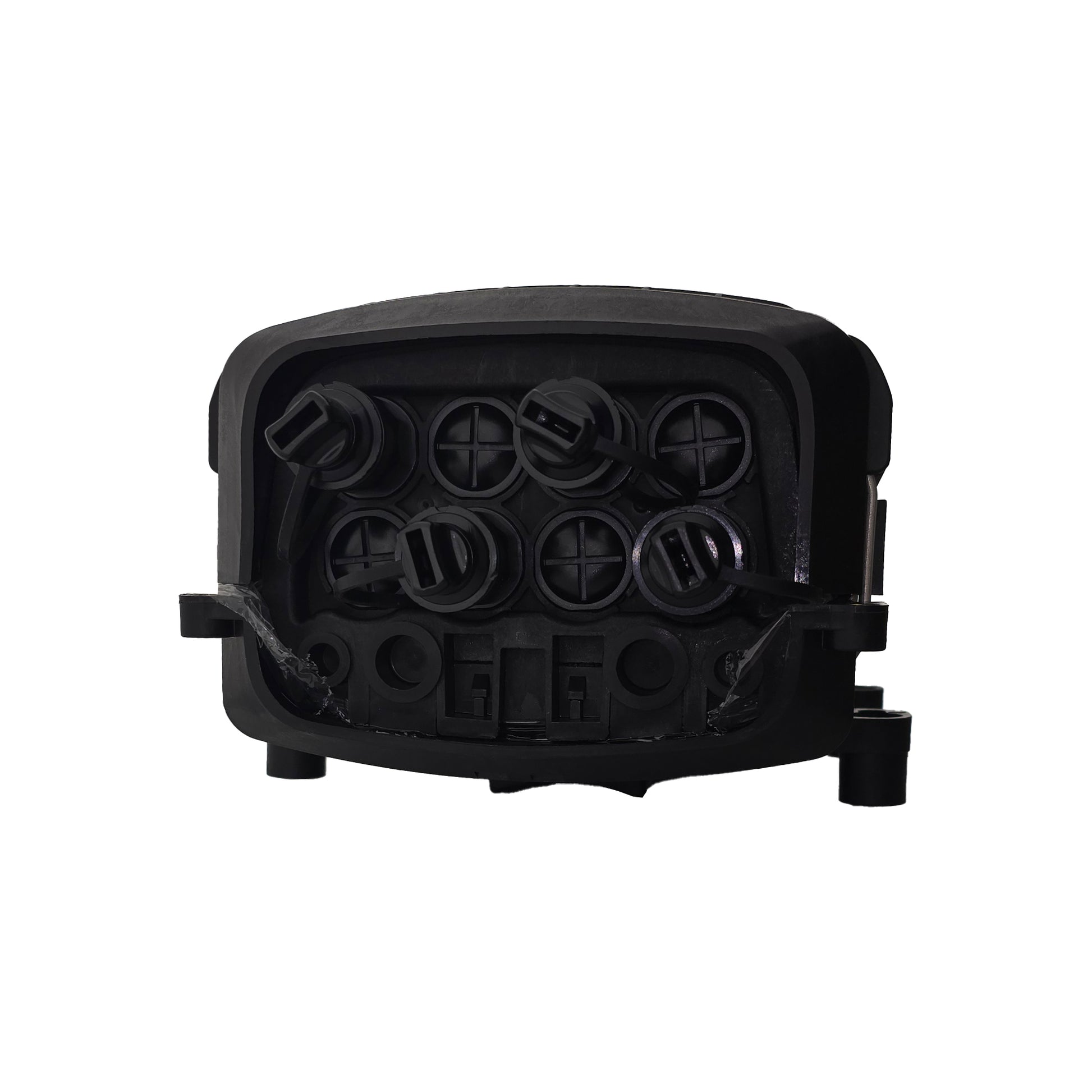

  • CYG-FSE60-4OPT-1X4 Ports Cyclone Fiber Splice Enclosure
1 4

SKU: CYG-FSE60-4OPT-1x4

Cyclone CYG-FSE60-4OPT-1x4

Cyclone CYG-FSE60-4OPT-1x4

Cyclone Fiber Splice Enclosure, 6x PLC, 1x4 Splitter

$180.00 USD
$180.00 USD
Sale Sold out

In Stock 411 in stock

Buy from Authorized Distributors

WAV ISP Supplies MBSI WAV ISP Supplies Canada
View Datasheet
View full details
IP-68, 60x Total Splice Capacity, 5x Trays, 4-Port OptiTitap compatible

Specifications CYG-FSE60-4OPT-1x4

1:4 Splitter
Insertion loss≤7.4dB
APC return loss≥55dB
Operating Temp-40°C+65°C
Size336 x 194 x 133mm (13.22 x 7.64 x 5.23in)
Maximum Capacity8 (SC/APC) H Optitap compatible
FOSC Capacity60 Cores
Weight2050g (4.5 lbs)
Largest Cable Diameter16mm (0.63in)
Environmental
Operating temperature-40°C +65°C (-40°F + 149°F)
Relative Humidity≤85% (+30°C)
Atmospheric pressure70Kpa~106Kpa
Protection classIP68
