SKU: CYG-FPLC-SCA-1X4-900
Cyclone CYG-FPLC-SCA-1X4-900
Cyclone CYG-FPLC-SCA-1X4-900
Cyclone 1X4 PLC Splitter SC/APC Termination 900 Micron
Regular price
$14.00 USD
Regular price
Sale price
$14.00 USD
Unit price
per
77 in stock
Buy from Authorized Distributors
Couldn't load pickup availability
Cyclone CYG-FPLC-SCA-1X4-900

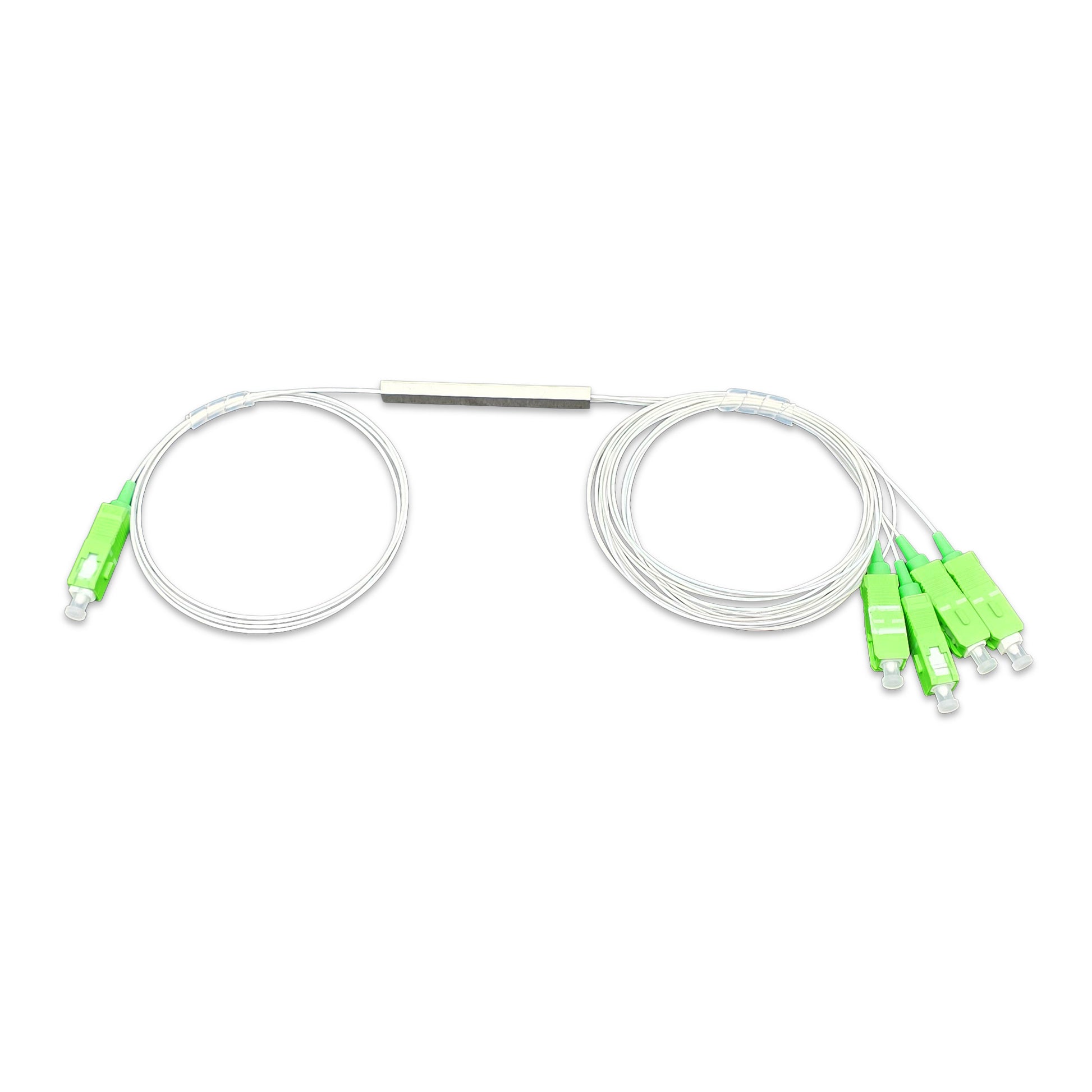

1X4 PLC Splitter SC/APC Termination 900 Micron
Specifications CYG-FPLC-SCA-1X4-900
| Dimensions | 4 x 7 x 60mm |
| Fiber Type | G657A1 |
| Tube | 900um Steel Tube |
| Connector | SC/APC |
| Input Port | White |
| Output Port | White |
| Length | A=1.0m; B=1.0m |
| Optical Performance | |
| Insertion Loss (without Connector) | / dB MAX |
| Insertion Loss of Connector | 7.4 dB MAX |
| Uniformity Loss | 0.6 dB MAX |
| Polarization Dependent Loss | 0.2 dB MAX |
| Wavelength Bandwidth | 1260~1650 nm MIN |
| Return Loss (All Port) | 55 dB MIN |
| Directivity | 55 dB MIN |
| Operating Temperature | -40~85°C dB |
| Mechanical and Configuration | |
| Labelling (Label Material & Dimension) | General |
| Serialization (Laser Marking or Others) | Paper |
| PLC Splitter Packing | Steel Tube |

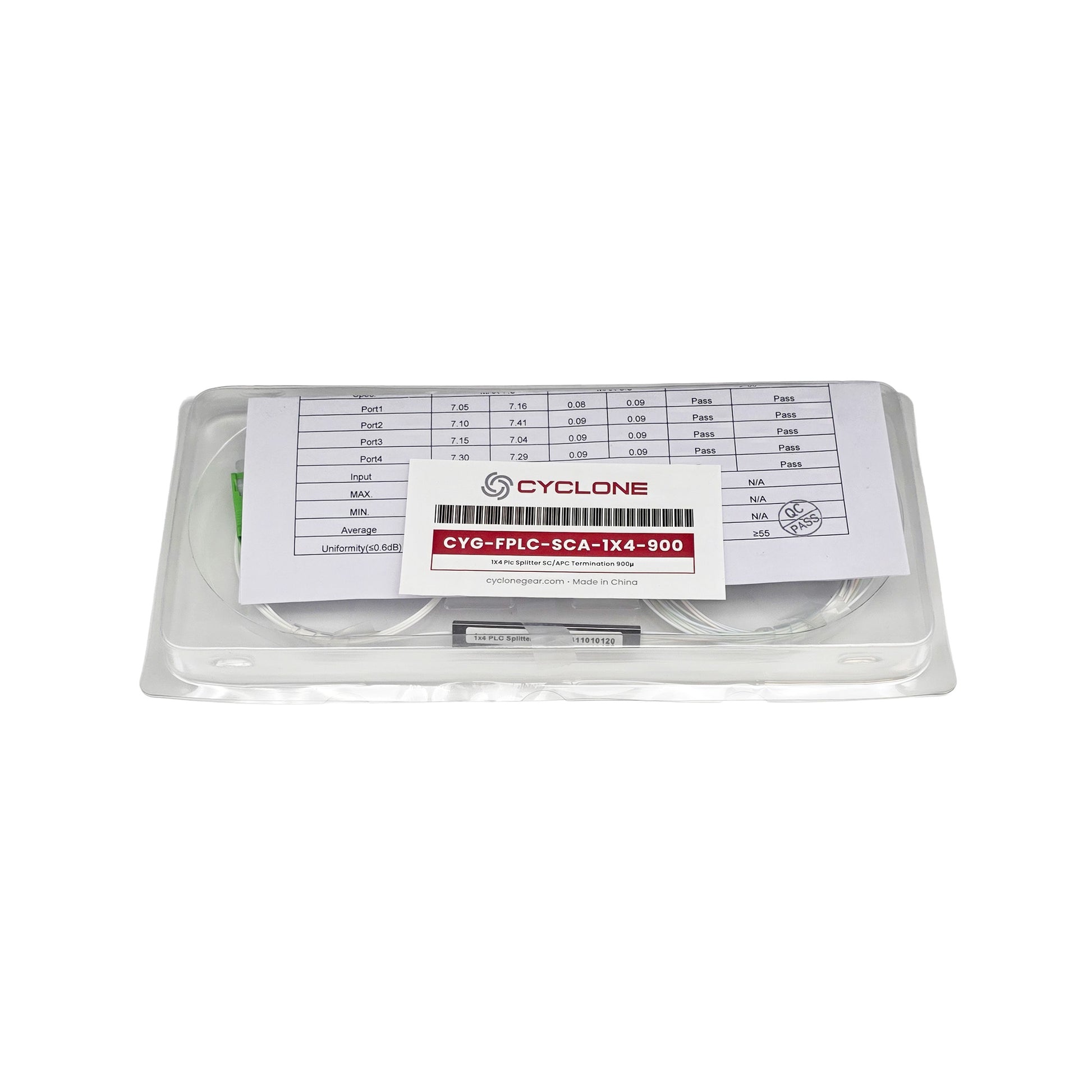

| Data Document Preparation | |
| Individual Test Data Sheet Format | Hardcopy 1310, 1550nm IL & PDL |
| Electronic Media Test Data File Format | MS-Excel As Usual |
