SKU: CYG-FPLC-1X4-250
Cyclone CYG-FPLC-1X4-250
Cyclone CYG-FPLC-1X4-250

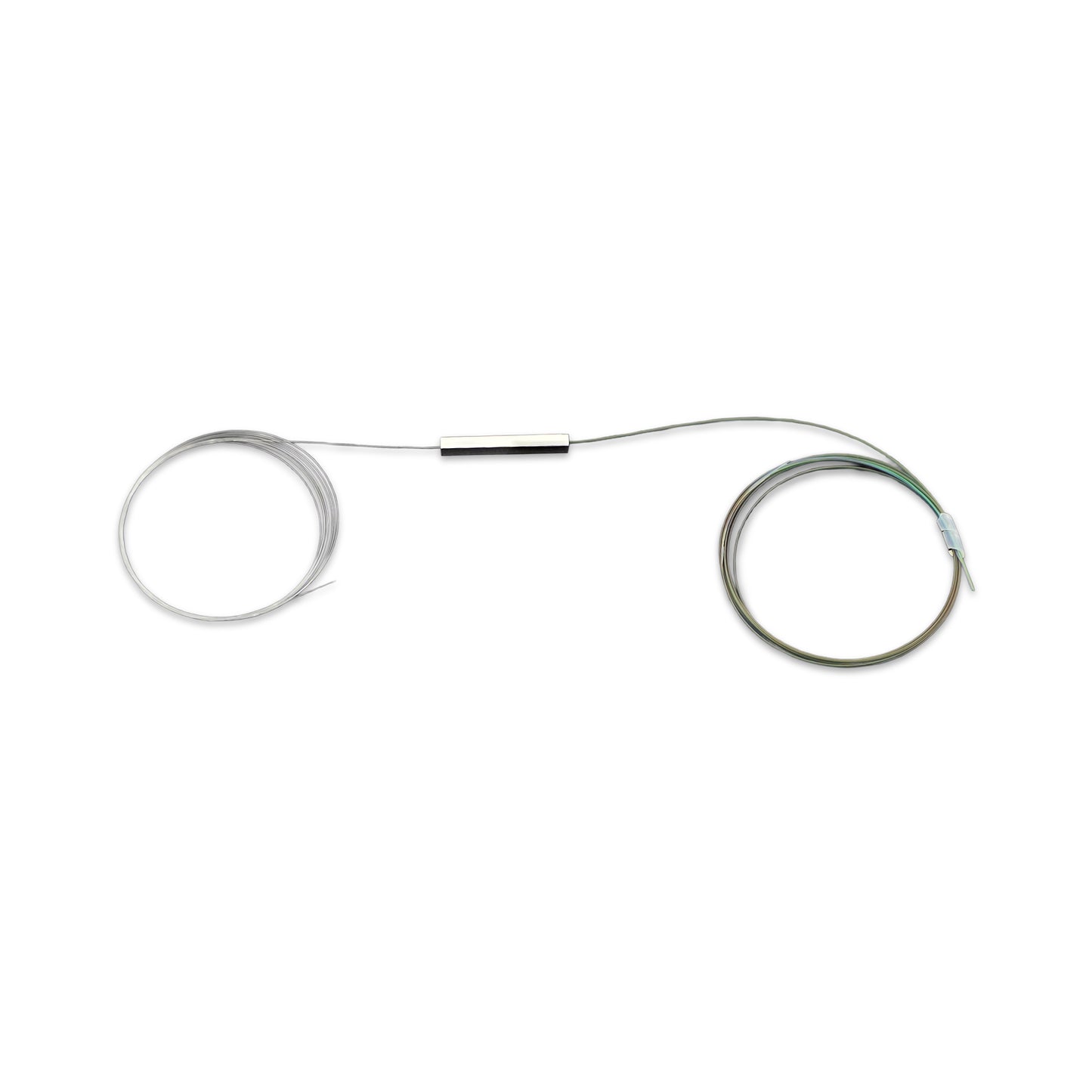

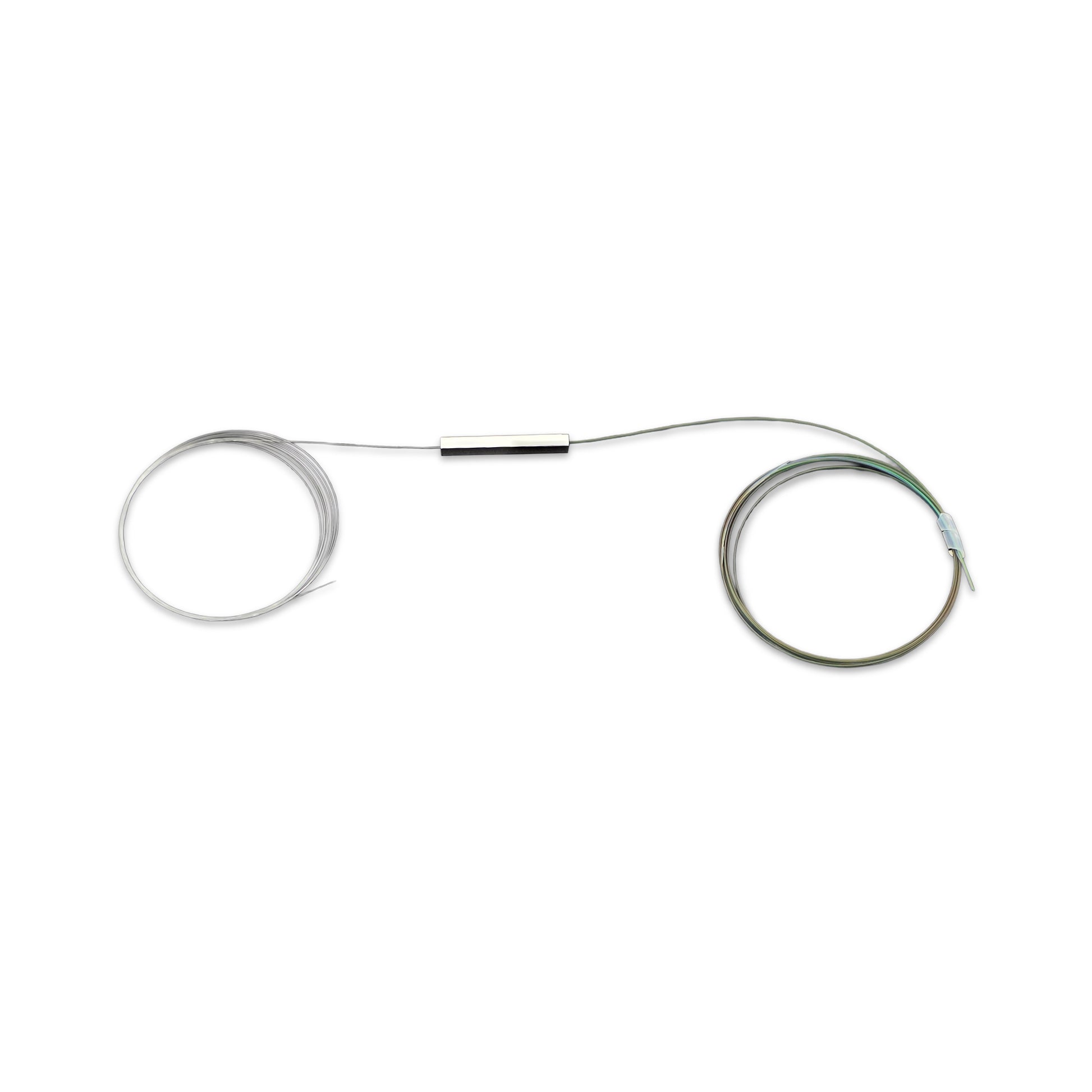

Cyclone 1X4 PLC Splitter Bare Fiber 250 Micron
Regular price
$8.00 USD
Regular price
Sale price
$8.00 USD
Unit price
per
412 in stock
Cyclone 1X4 PLC Splitter Bare Fiber 250 Micron
Specifications CYG-FPLC-1X4-250
| Dimensions | 4 x 4 x 40mm |
| Fiber Type | G657A |
| Tube | 250um Fiber G657A1 |
| Connector | None |
| Input Port | Clear |
| Output Port | Blue/Orange/Green/Brown |
| Length | A=1.0m; B=1.0m |
| Optical Performance | |
| Insertion Loss (without Connector) | 7.2 dB MAX |
| Insertion Loss of Connector | / dB MAX |
| Uniformity Loss | 0.6 dB MAX |
| Polarization Dependent Loss | 0.3 dB MAX |
| Wavelength Bandwidth | 1260~1650 nm MIN |
| Return Loss (All Port) | 55 dB MIN |
| Directivity | 55 dB MIN |
| Operating Temperature | -40~85°C dB |
| Mechanical and Configuration | |
| Labelling (Label Material & Dimension) | General |
| Serialization (Laser Marking or Others) | Paper |
| PLC Splitter Packing | Steel Tube |
| Special Materials | |
| Fiber Type | G657A1 |
| Data Document Preparation | |
| Individual Test Data Sheet Format | Hardcopy 1310, 1550nm IL & PDL |
| Electronic Media Test Data File Format | MS-Excel As Usual |
