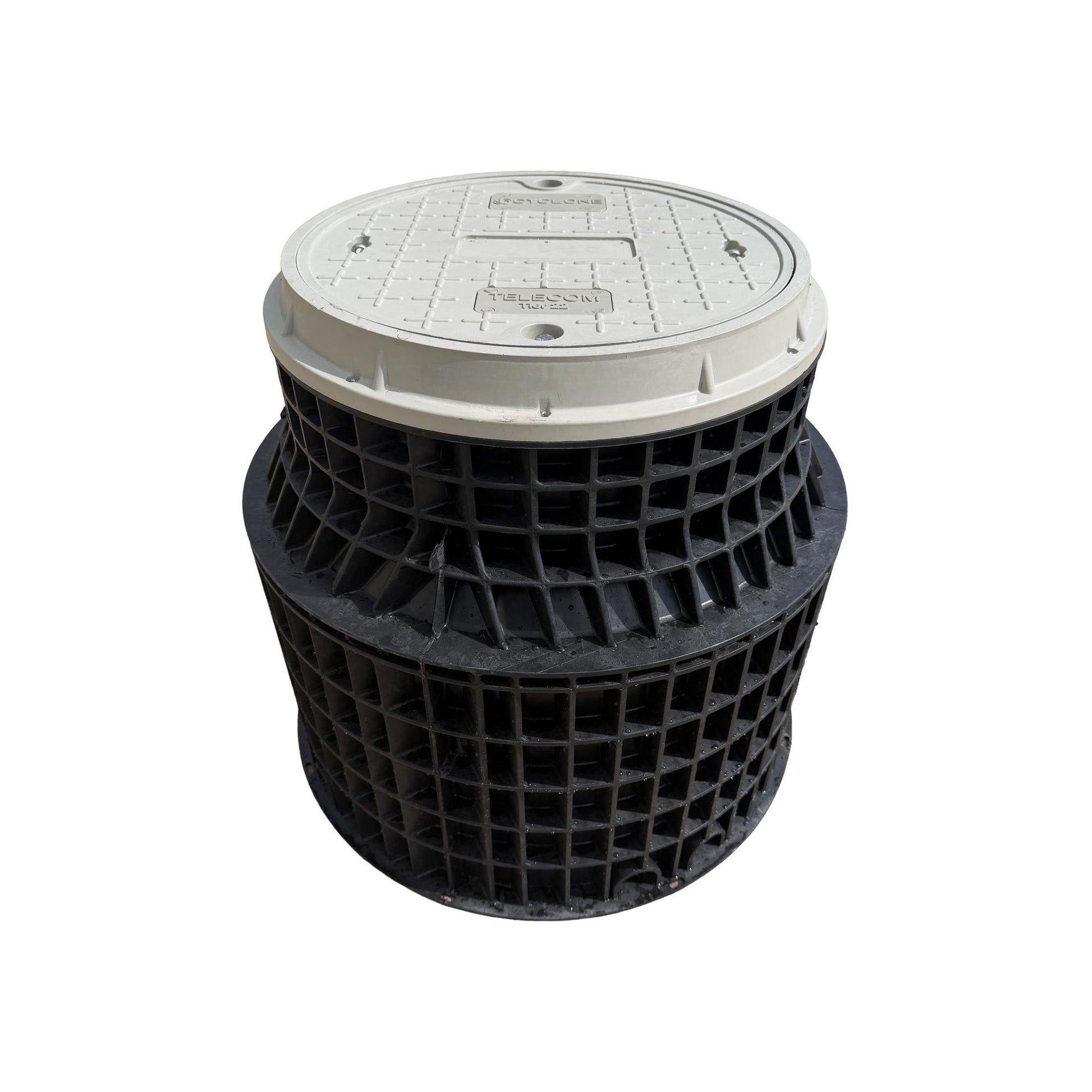

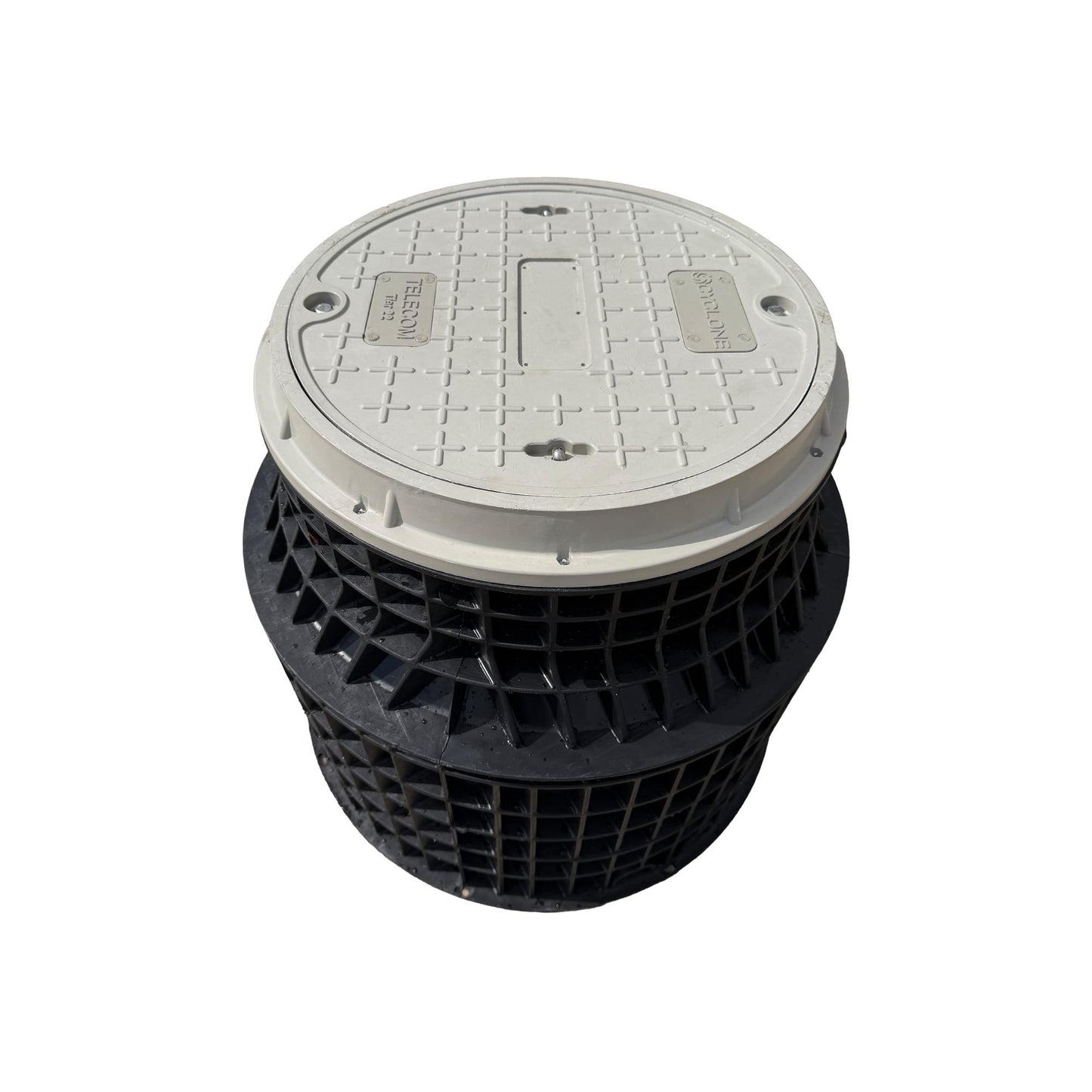

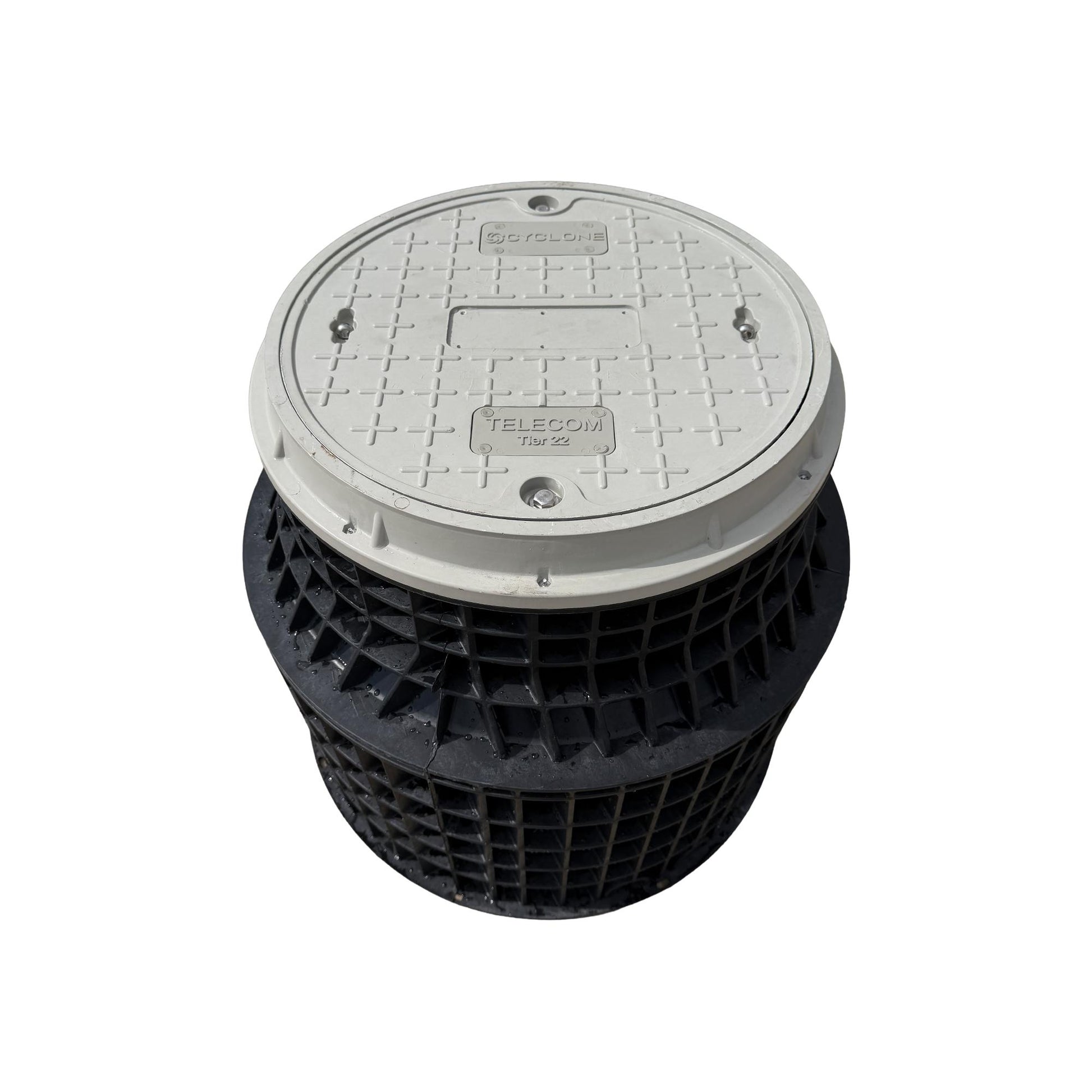

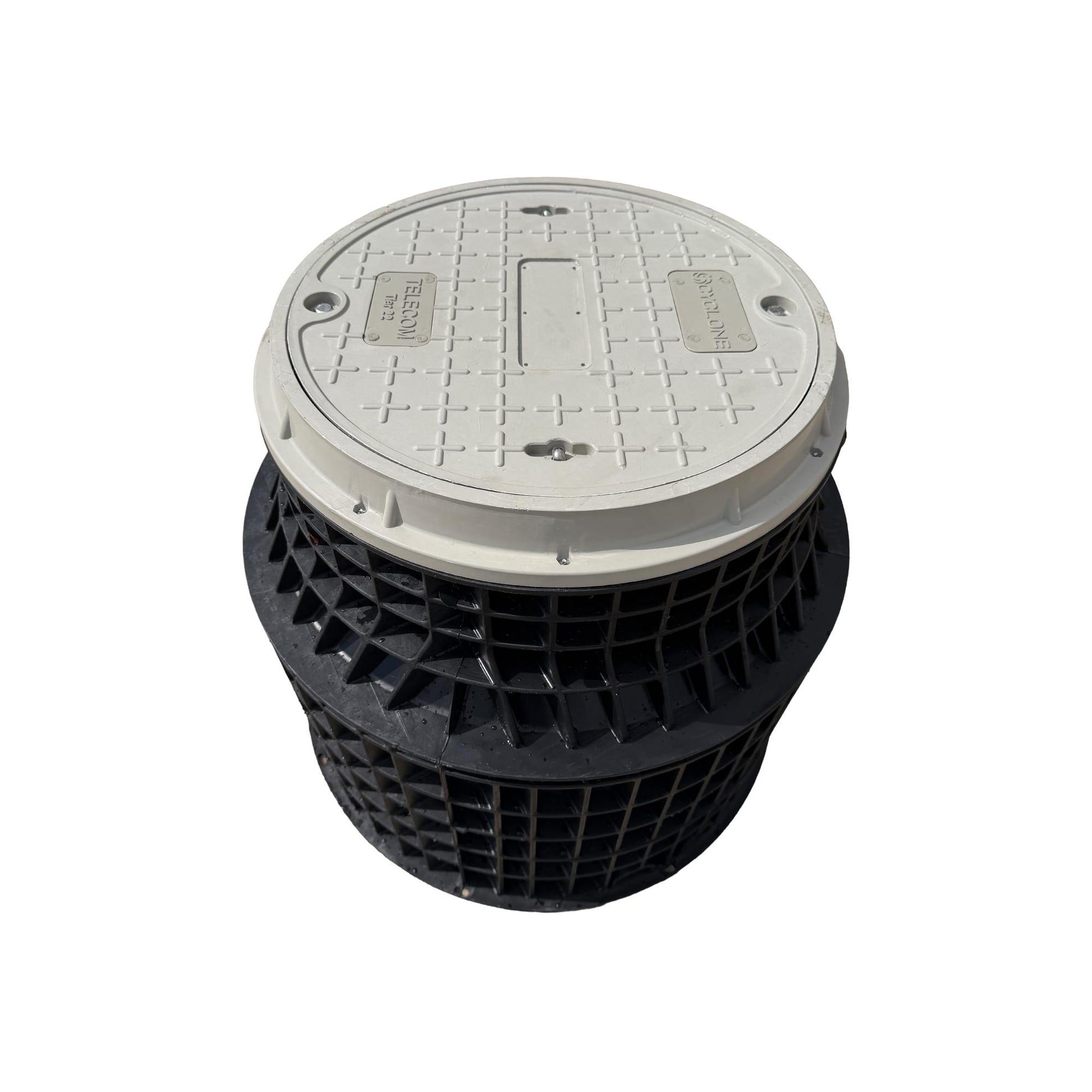

Cyclone CYG-FEV-2326

Cyclone CYG-FEV-2326

23" Diameter x 26.4" Deep HDPE Fiber Vault | BABA Compliant

Built for demanding FTTx, fiber broadband, telecom, and outside plant deployments, the Cyclone CYG-FEV-2326 HDPE Fiber Vault provides a durable, space-efficient solution for protecting fiber cable, splice closures, and underground network connections.

Its round, tapered design combines a smaller surface footprint with generous internal capacity, giving installers room to manage cable slack and fiber components without requiring the ground-level space of a traditional rectangular vault. The CYG-FEV-2326 provides volume comparable to a 17" x 30" x 24" vault while using a 23-inch-diameter opening.

Lightweight construction, a stackable profile, optional conduit knockouts, and a secure bolt-down lid help simplify transportation, installation, and long-term access. The circular design is also installer-friendly around sidewalks, curbs, and other locations where positioning a rectangular vault can be challenging.

For network operators expanding fiber-to-the-home (FTTH), FTTx, middle-mile, last-mile, or underground telecom infrastructure, the CYG-FEV-2326 gives crews a practical vault solution designed around the realities of fiber deployment.

Features & Benefits

• Built for FTTx and Fiber Networks: Provides protected underground space for fiber cable, slack storage, connections, and splice closures.
• Space-Efficient Round Design: 23" diameter opening minimizes the surface footprint while the tapered 26.4" deep chamber provides usable internal storage capacity.
• Comparable Capacity in a Smaller Footprint: Internal volume is comparable to a traditional 17" x 30" x 24" vault.
• Lightweight, Durable Construction: Designed to make transportation and field handling easier while delivering the durability required for outside plant installations.
• Flexible Conduit Entry: Optional knockout conduit ports give crews greater flexibility when integrating the vault into new or existing underground infrastructure.
• Stackable for More Efficient Transport: The tapered body allows units to nest for higher packing density and more efficient transportation to the jobsite.

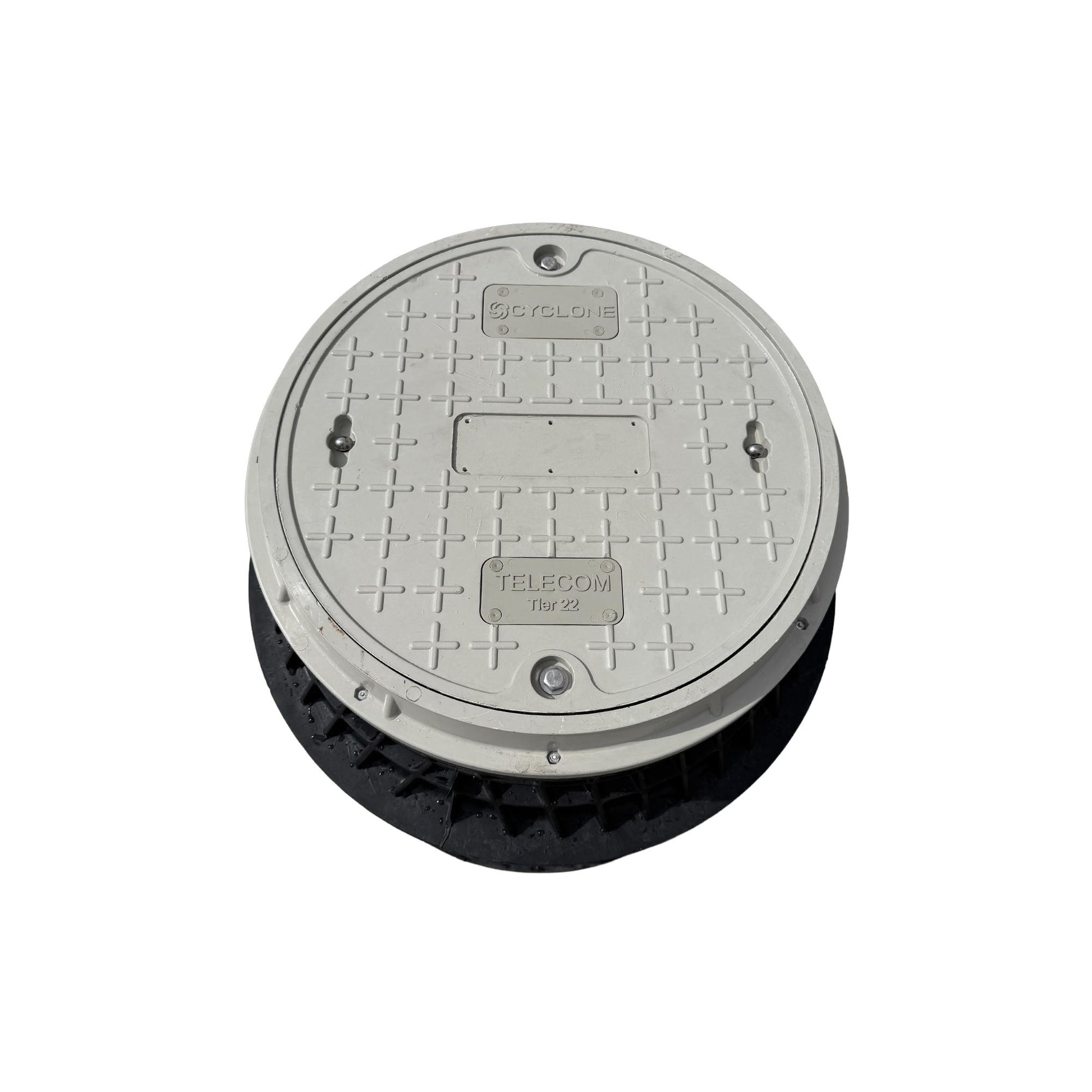

• Secure Access: A hingeless, slide-in lid with bolt-down locking helps secure underground network assets while maintaining service access.
• Simplified Placement: The circular footprint eliminates the directional alignment required with rectangular handholes, making placement easier around curbs, sidewalks, and constrained installation areas.
• Tier 22 Option: The T22 configuration has an ANSI Tier 22 load classification of 15.3 tons under standardized test conditions.
• Quality-Focused Manufacturing: Manufactured in an ISO 9001-certified facility and tested to applicable standards, according to Cyclone's published specifications.

Ideal Applications

The Cyclone CYG-FEV-2326 fiber vault is well suited for:

• FTTH and FTTx deployments
• Underground fiber optic networks
• Broadband infrastructure builds
• Telecom outside plant applications
• Fiber splice closure and cable slack storage
• Middle-mile and last-mile fiber projects
• Municipal and utility broadband networks

Specifications CYG-FEV-2326
