SKU: CYG-FC-SIM-SCA-ARM-IND
Cyclone CYG-FC-SIM-SCA-ARM-IND
Cyclone CYG-FC-SIM-SCA-ARM-IND

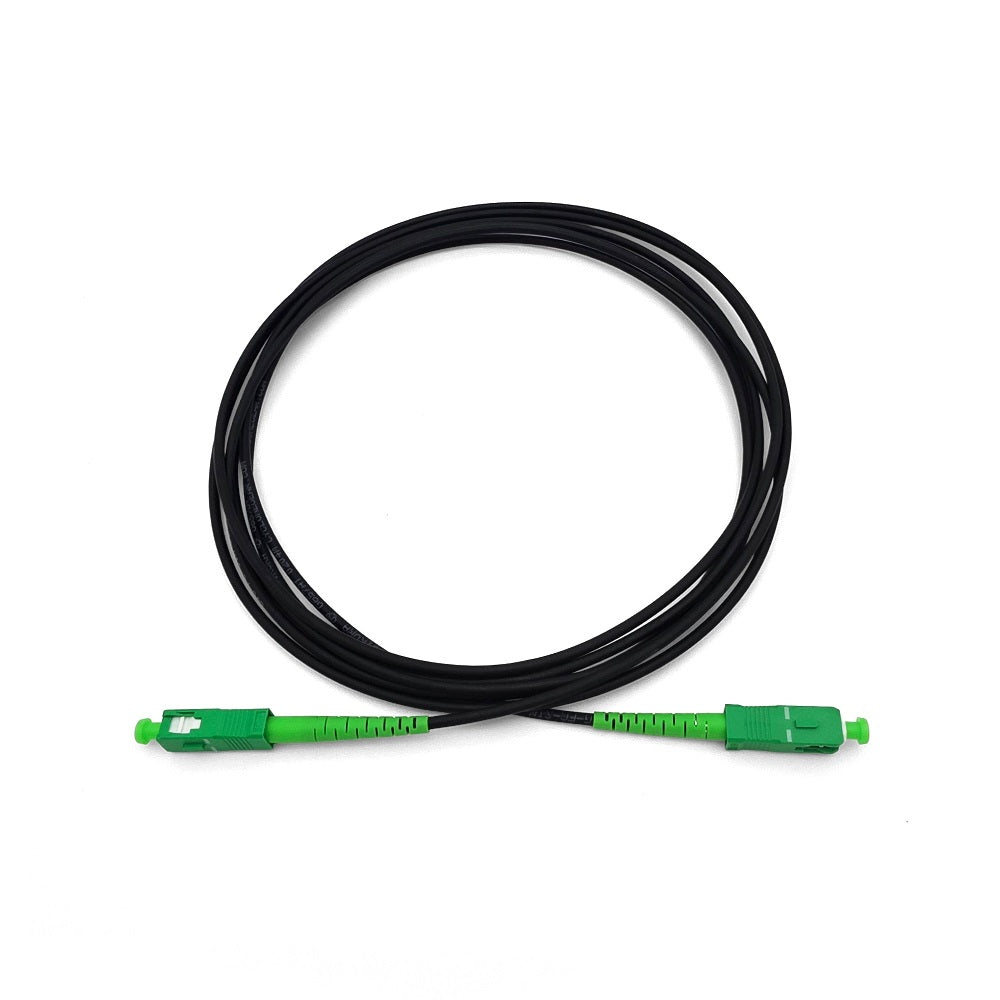

Cyclone Indoor SC/APC Simplex 3mm Armored Patch Cable
Regular price
$4.00 USD
Regular price
Sale price
$4.00 USD
Unit price
per
398 in stock
Cyclone CYG-FC-SIM-SCA-ARM-IND
Indoor SC/APC Simplex 3mm Armored Patch Cable
Features:
- LSZH Black Jacket
- Aramind Yarn
- Stainless Steel Tube
- 0.9MM Tiger Buffer
- G.657.A1 Fiber
Tolerances of Length (mm), Length Tolerance:
- L ≤ 5000 mm: +50 / -20 mm
- 5000 < L ≤ 10000 mm: ±50 mm
- L > 10000 mm: ±1% of L
Specifications CYG-FC-SIM-SCA-ARM-IND
| Technical Parameters | |
| Connector Type | SC/APC |
| House Color | Green |
| Boot Color | Green |
| House Material | Plastic |
| Ferrule Material | Phosphor Bronze and Zirconia |
| Cable Diameter | 3.0±0.1 |
| Operating Temperature | -25~+70°C |
| Stainless Steel Tube Diameter | 1.4±0.1 |
| Optical Performance | |
| Insertion Loss (Reference Plug) | ≤0.30dB |
| Return Loss | ≥60dB |
| Insertion Loss (Random Mated) | ≤0.50dB |
| Ferrule End-Face Geometry | |
| Radius of Curvature | 5~15mm |
| Fiber Height (Spherical) | -100~+50nm |
| Apex Offset | ≤0.50µm |
| Angular Offset | 8°±0.3° |
