SKU: CYG-FC-OPT-SCA18IN
Cyclone CYG-FC-OPT-SCA18IN
Cyclone CYG-FC-OPT-SCA18IN

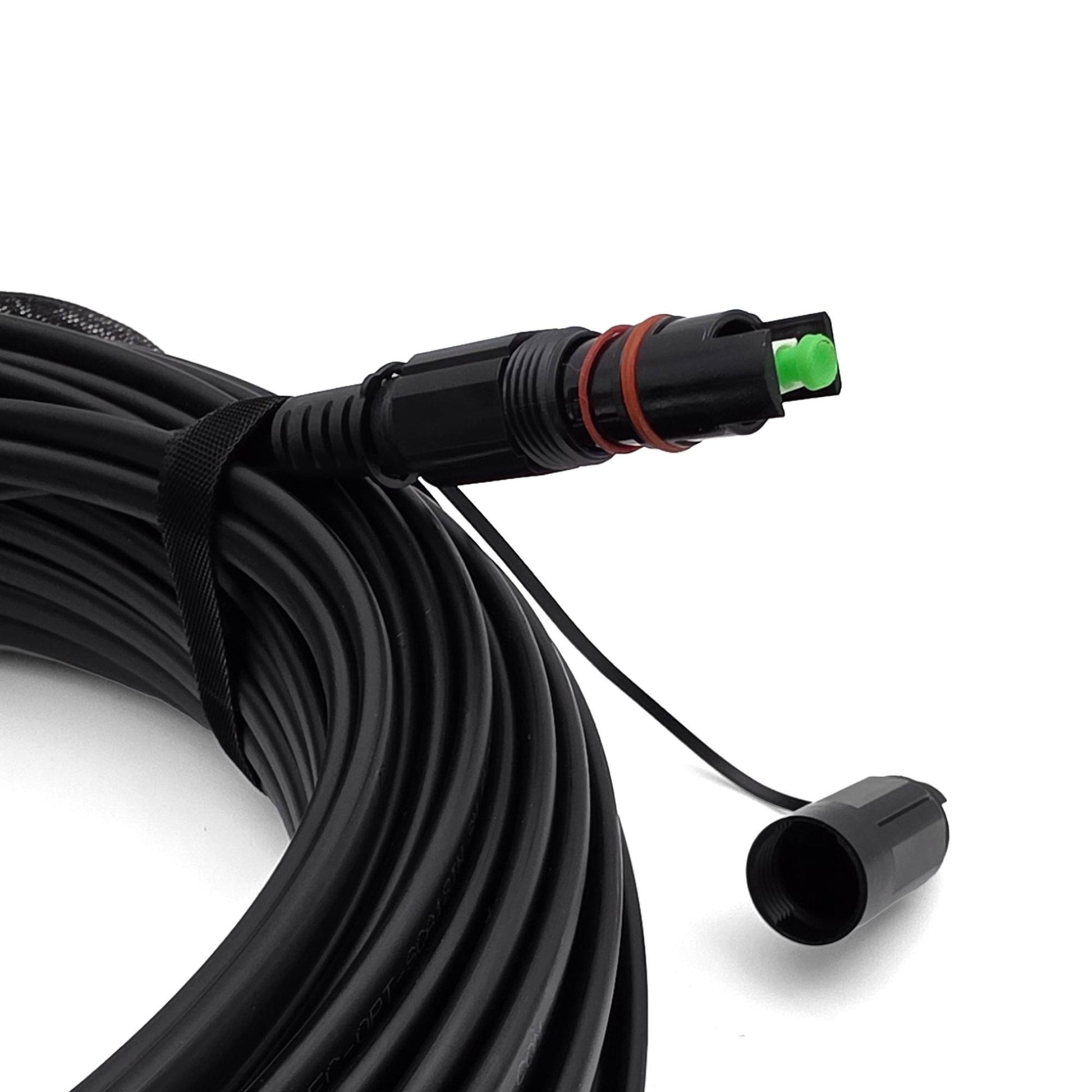

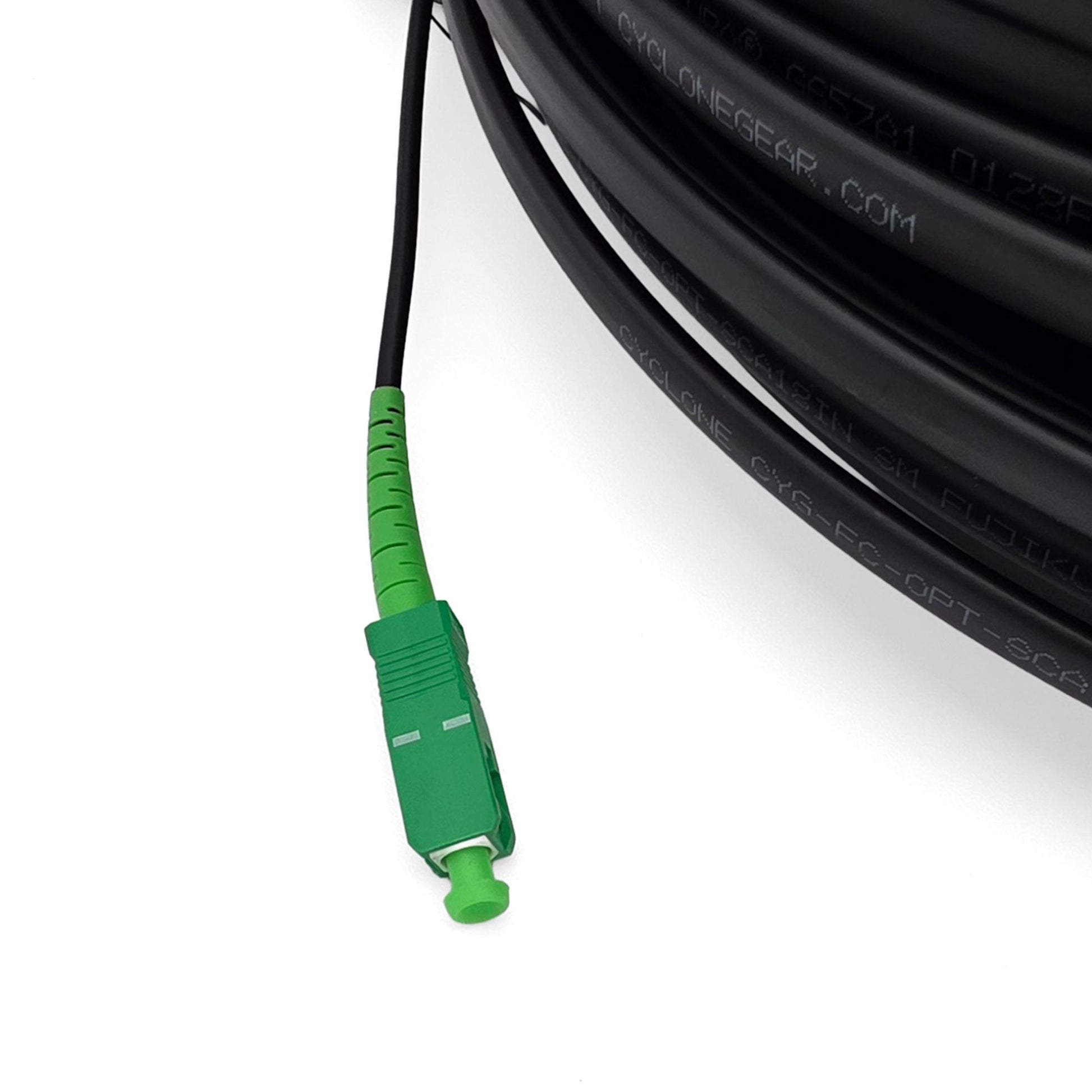

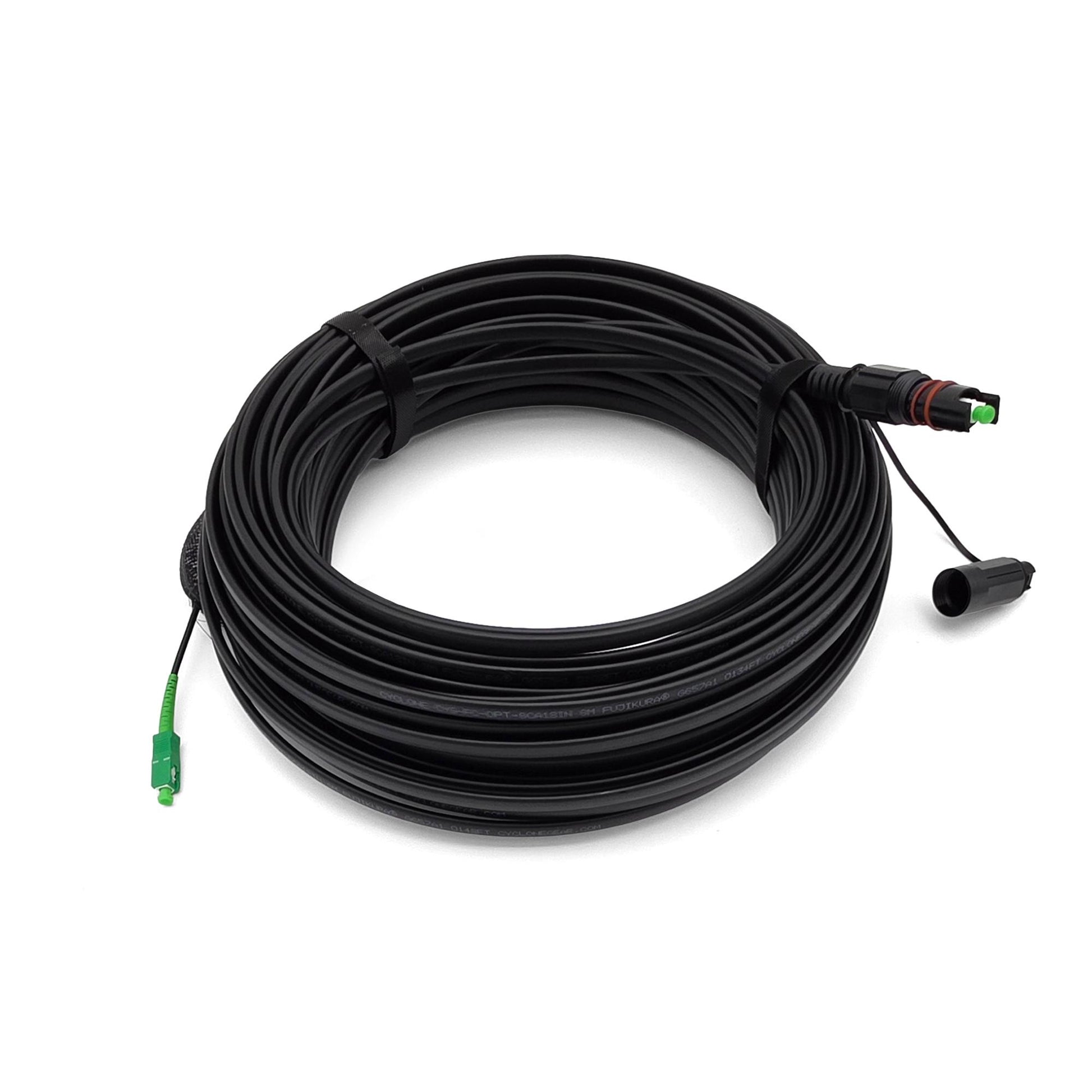

Cyclone Non-Toneable Flat Drop SM Armored 18" SC/APC Pulling Eye OPTitap compatible
Available Options
Cable Length: 1000FT, 100FT, 150FT, 200FT, 250FT, 300FT, 350FT, 400FT, 450FT, 500FT, 50FT, 550FT, 600FT, 650FT, 700FT, 750FT, 75FT, 800FT, 850FT, 900FT, 950FT
Regular price
$48.00 USD
Regular price
Sale price
$48.00 USD
Unit price
per
669 in stock
Cyclone CYG-FC-OPT-SCA18IN
Non-Toneable Flat Drop SM Armored 18" SC/APC Pulling Eye OPTitap Compatible
Features:
- Non-Toneable Flat Drop
- Side A : Hardened SCAPC
-
Side B: SC-APC
- Heat Shrinkable Tube
- Breakout: 3.0mm Armored LSZH Tube
Specifications CYG-FC-OPT-SCA18IN
| Item | Parameter |
| Connector A | Hardened SCAPC |
| Connector B | SCAPC |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max<0.3 |
| Return Loss (dB) | >60 |
| Pulling Force of Connector A at 0° | 230N |
| Pulling Force of Connector A at 90° | 50N |
| Ingress Protection | IP68 |
| Operation Temperature | -40~+70°C |
