SKU: CYG-FC-OPT-SCA18IN
Cyclone CYG-FC-OPT-SCA18IN
Cyclone CYG-FC-OPT-SCA18IN

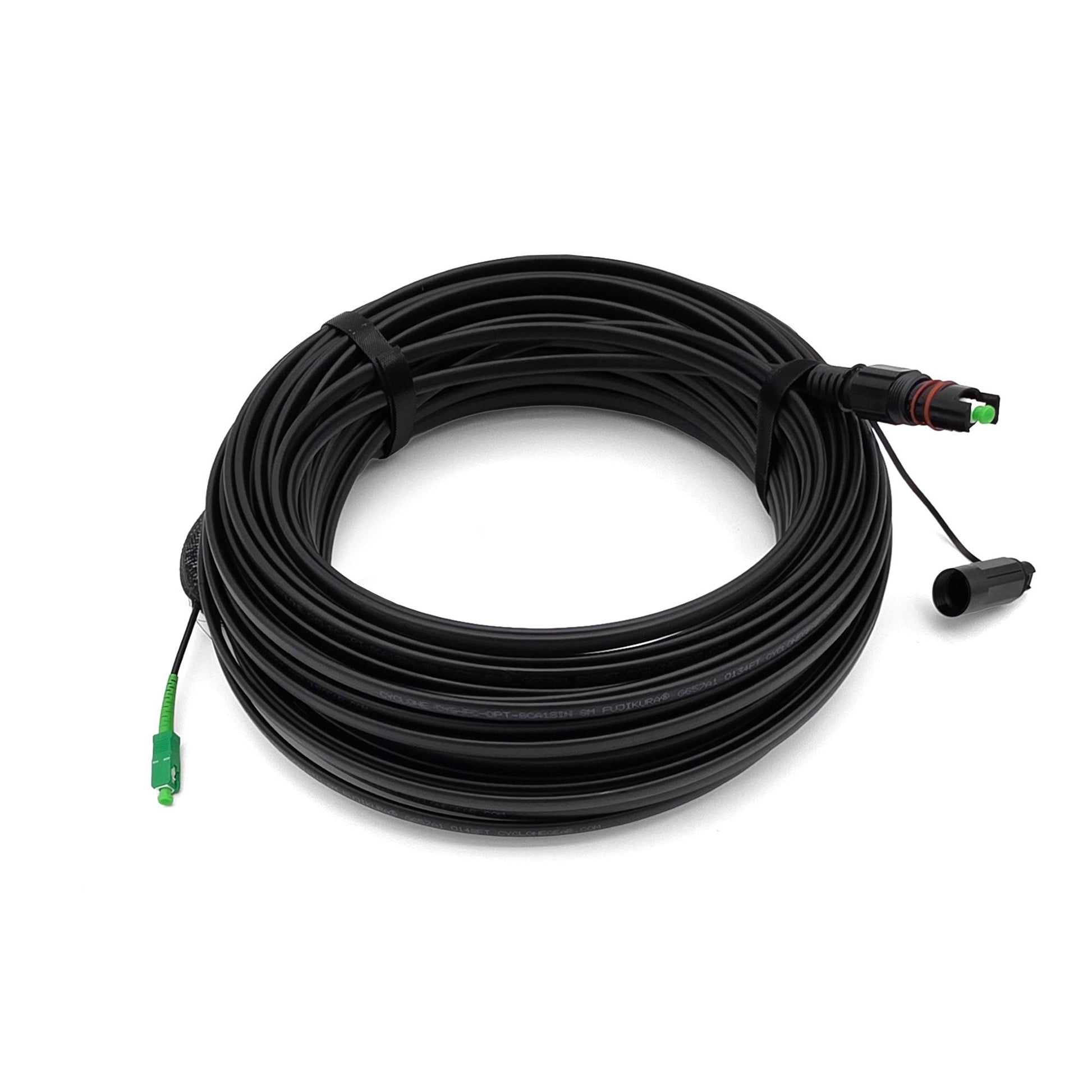

Cyclone Non-Toneable Flat Drop SM Armored 18" SC/APC Pulling Eye OPTitap compatible
Regular price
$48.00 USD
Regular price
Sale price
$48.00 USD
Unit price
per
669 in stock
Cyclone CYG-FC-OPT-SCA18IN
Non-Toneable Flat Drop SM Armored 18" SC/APC Pulling Eye OPTitap Compatible
Features:
- Non-Toneable Flat Drop

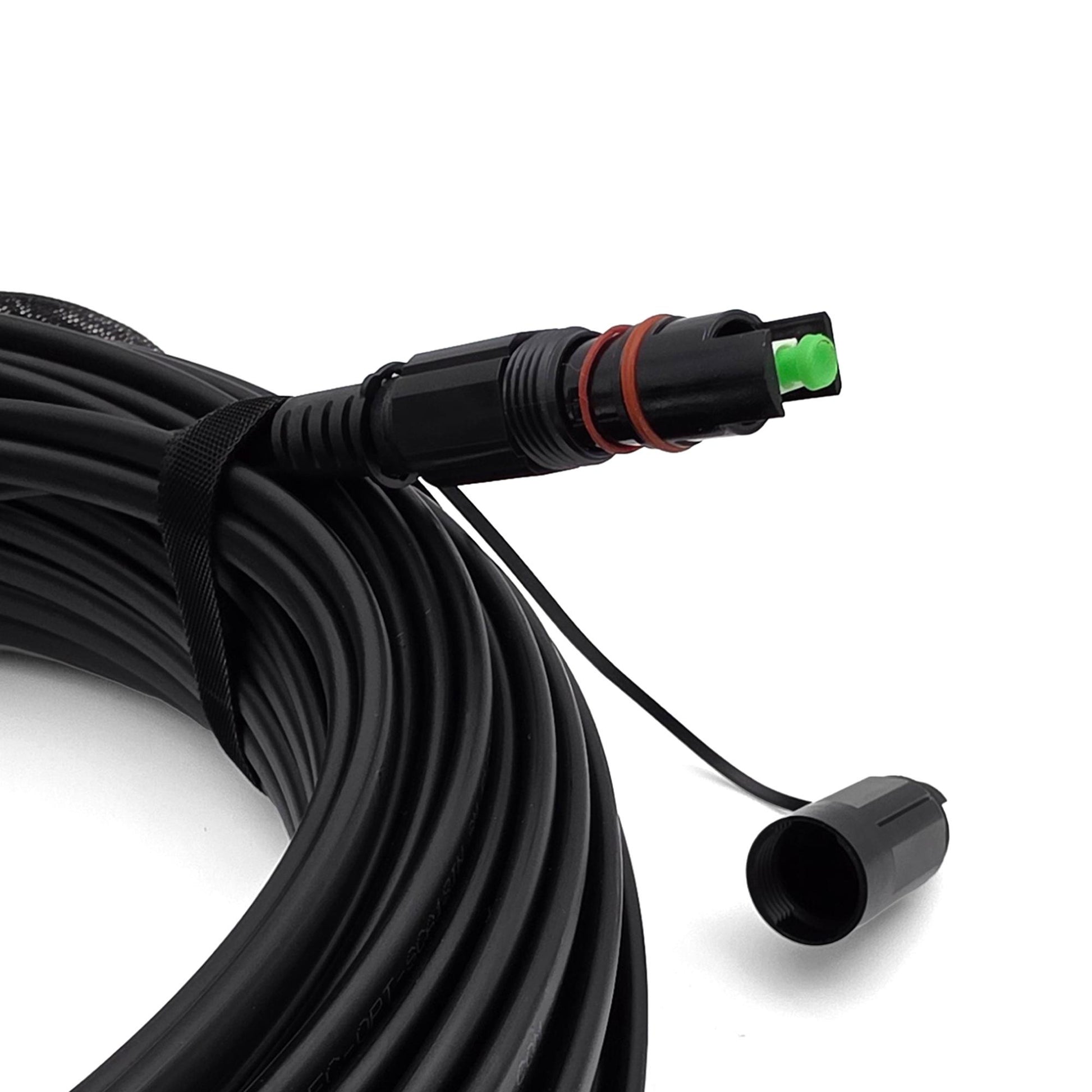

- Side A : Hardened SCAPC
-

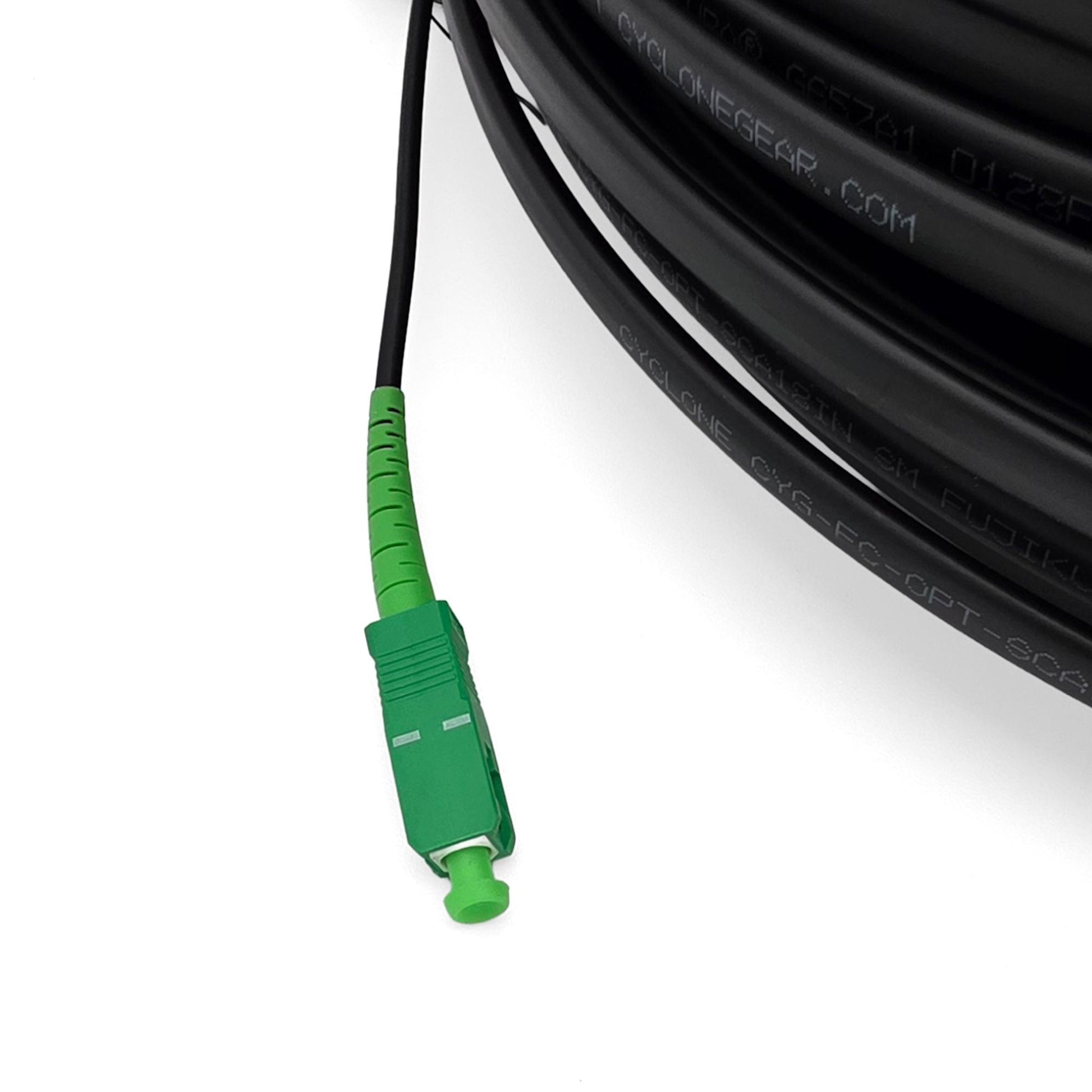

Side B: SC-APC
- Heat Shrinkable Tube
- Breakout: 3.0mm Armored LSZH Tube
Specifications:
Specifications CYG-FC-OPT-SCA18IN
| Item | Parameter |
| Connector A | Hardened SCAPC |
| Connector B | SCAPC |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max<0.3 |
| Return Loss (dB) | >60 |
| Pulling Force of Connector A at 0° | 230N |
| Pulling Force of Connector A at 90° | 50N |
| Ingress Protection | IP68 |
| Operation Temperature | -40~+70°C |
