SKU: CYG-FC-OPT-PMFSCA
Cyclone CYG-FC-OPT-PMFSCA
Cyclone CYG-FC-OPT-PMFSCA

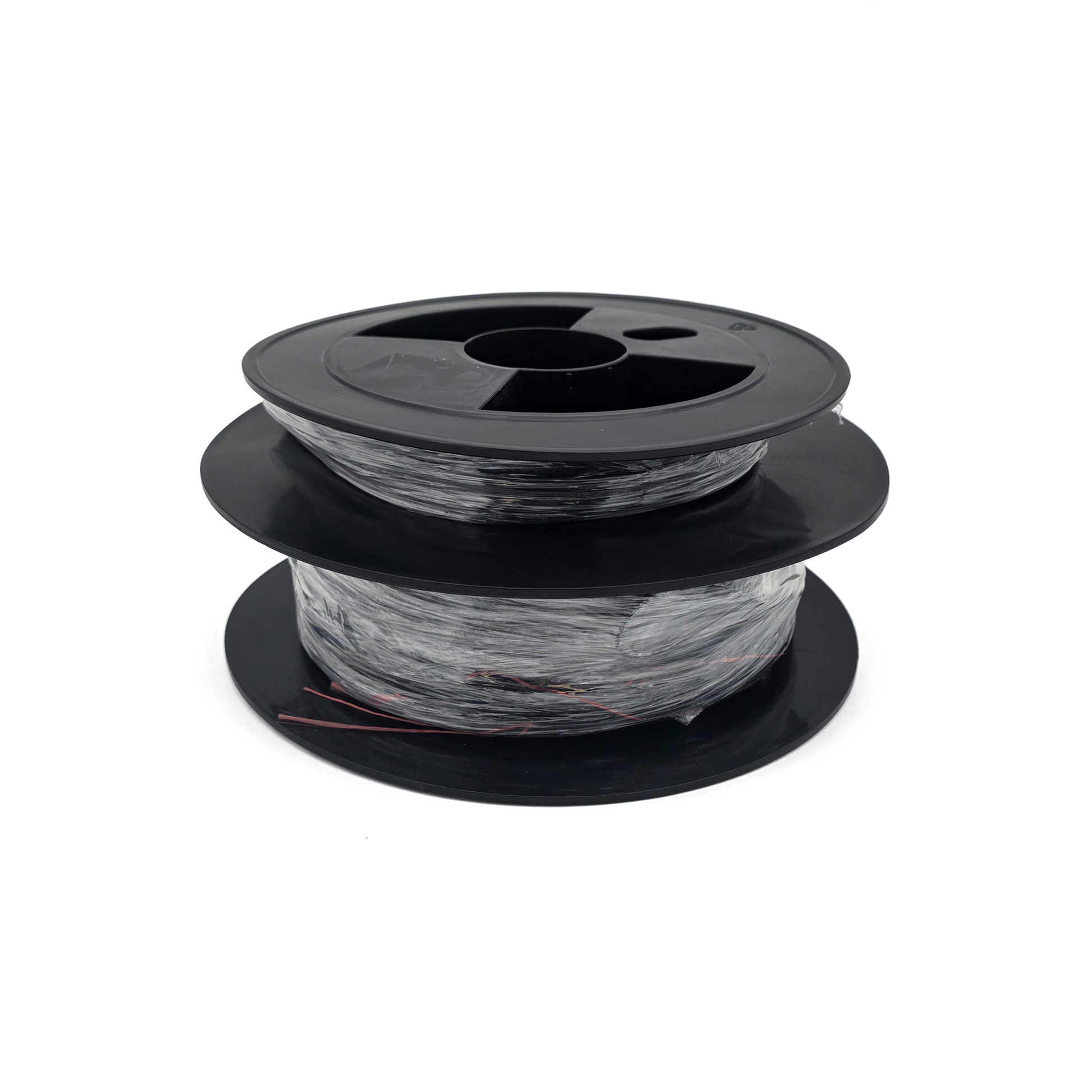

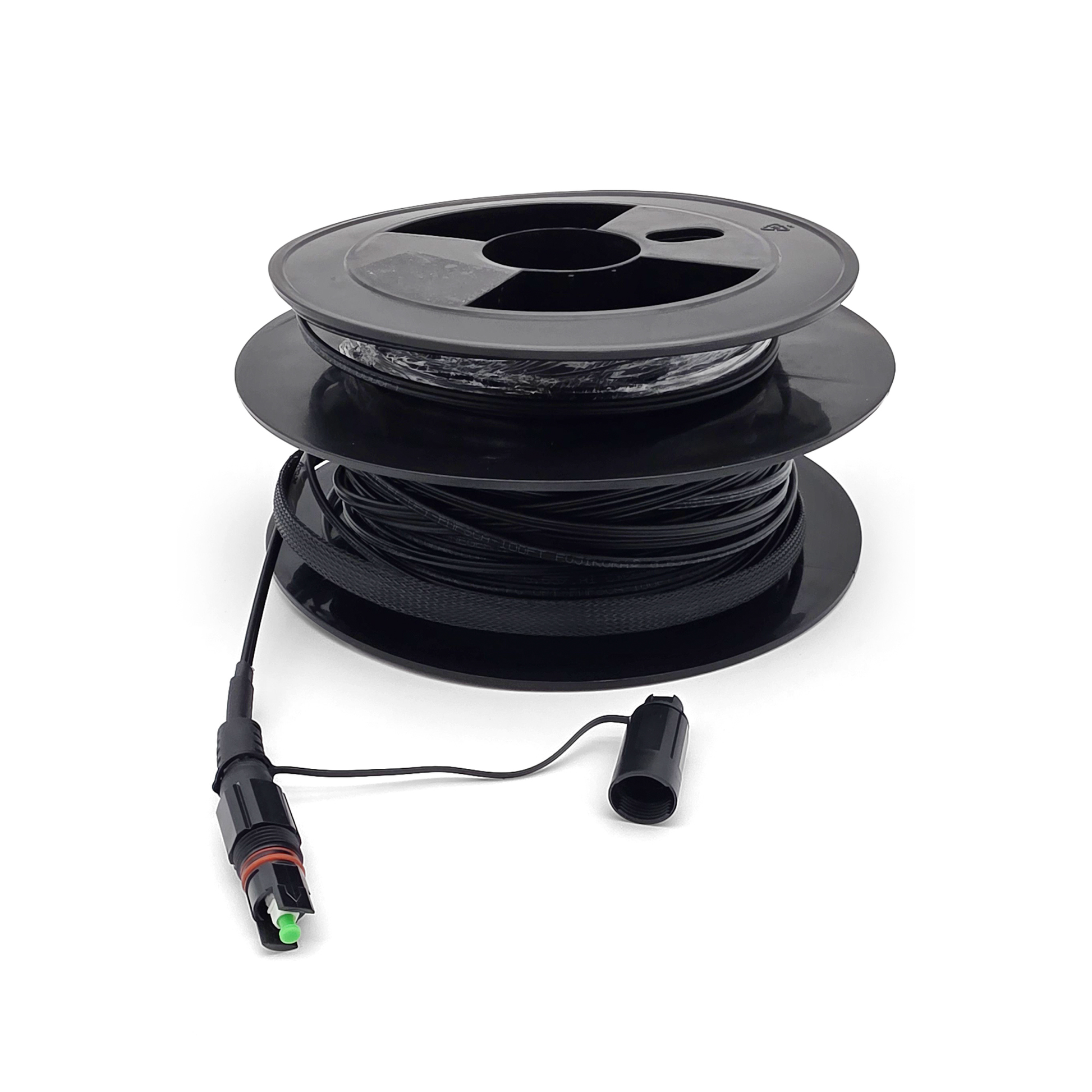

Cyclone Dielectric Peelable Micro Flat Drop SM (end1) Nylon Tight Buffer SC/APC Pulling Eye (end2) OPTitap compatible G.657.A1 On Reel
Available Options
Cable Length: 100FT, 150FT, 200FT, 250FT, 300FT, 350FT, 400FT, 450FT, 500FT, 50FT, 550FT, 600FT, 650FT, 700FT, 750FT, 800FT
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Unit price
per
223 in stock
Cyclone CYG-FC-OPT-PMFSCA
Dielectric Peelable Micro Flat Drop SM (end1) Nylon Tight Buffer SC/APC Pulling Eye (end2) OPTitap compatible G.657.A1 On Reel
Technical Requirements
- The tearing force between two FRP reinforcement members and 0.9mm tight-buffered optical fiber in the optical cable is <=20N
- The outer end of the connector is a SC/APC connector, which contains a pull eyes. The inner end is hardened
SC/APC, without pulling eyes.
Specifications CYG-FC-OPT-PMFSCA
| Cabel | 3.0x5.3x6.6mm black PE cable |
| Connector A | Hardened SC/APC connector |
| Connector B | SC/APC connector |
| Technical Requirements | IL ≤ 0.3dB, RL ≥ 60dB; ΔL:±30.48mm L>2133.6mm ΔL:±6.096mm The unit of L is mm |
