SKU: CYG-FA-SSS
Cyclone CYG-FA-SSS
Cyclone CYG-FA-SSS
Cyclone Ribbon/Single Splice Sleeve 50PK
Available Options
Version: 40mm Sleeve, 60mm Sleeve, 40mm 8-12F Ribbon
Regular price
$6.00 USD
Regular price
Sale price
$6.00 USD
Unit price
per
1764 in stock
Buy from Authorized Distributors
Couldn't load pickup availability
Cyclone CYG-FA-SSS
Ribbon/Single Splice Sleeve 50PK

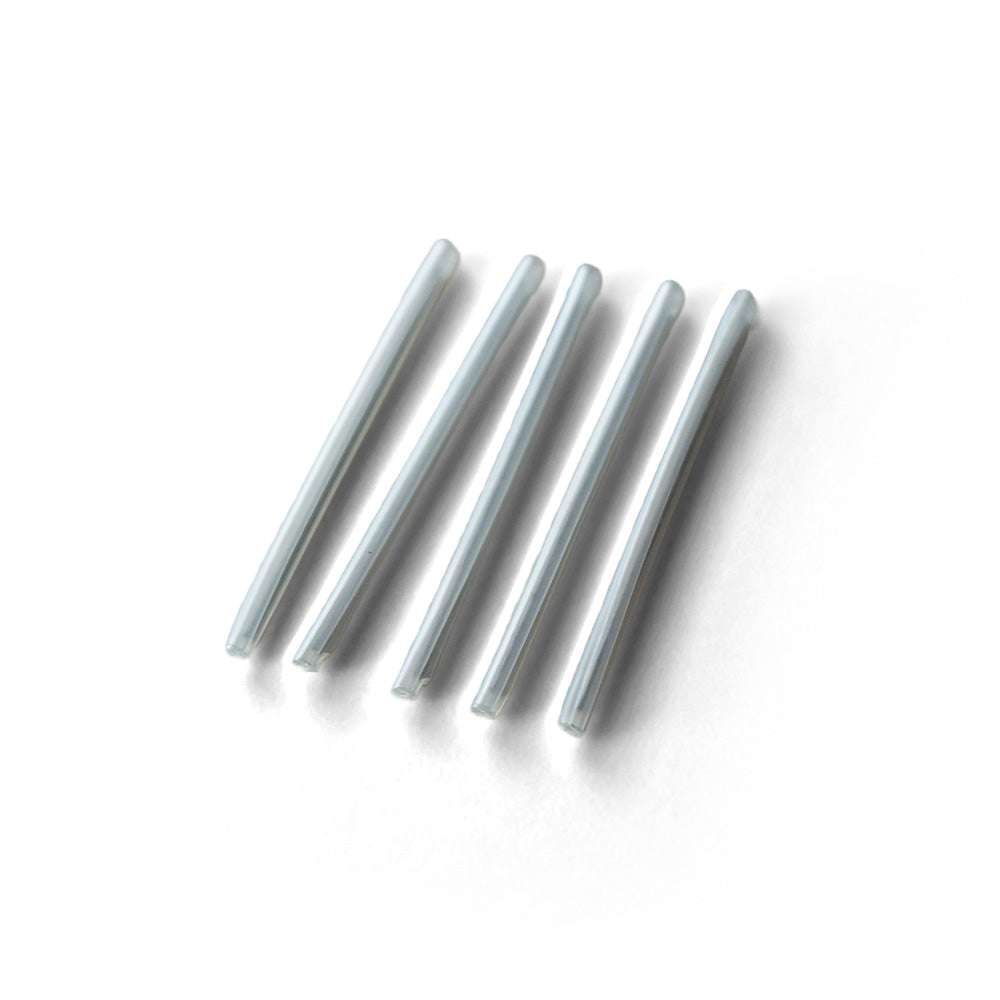

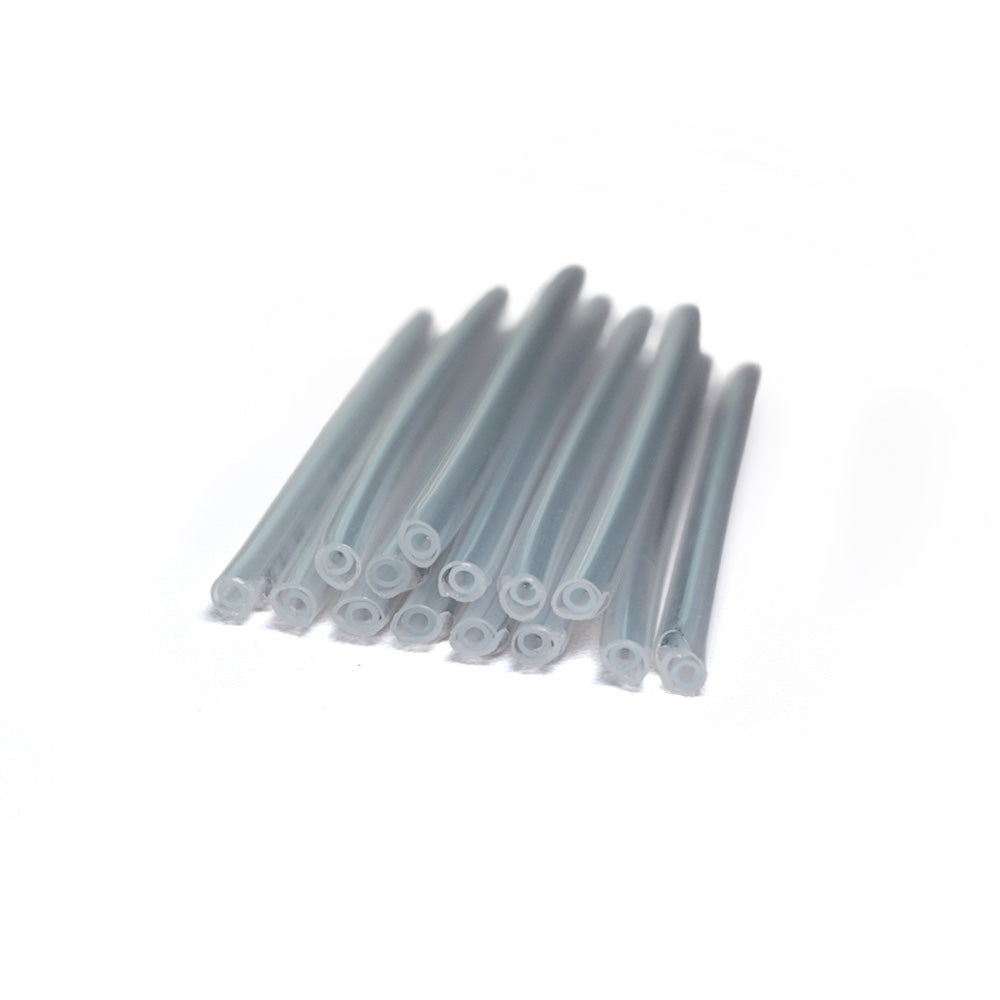

Heat-shrink fusion splice protection sleeves for restoring mechanical strength and environmental sealing at the splice point after fusion splicing.
Features:
- Version Options: 40mm Single Fiber, 60mm Single Fiber, 40mm 6-12F Ribbon (Single-Side)
- 3-layer composite construction: cross-linked polyolefin/EVA heat-shrink outer tube, hot-melt adhesive inner tube, and stainless steel (single fiber) or ceramic (ribbon) reinforcing member
- 40mm/60mm Single Fiber: 304 stainless steel reinforcement rod, fully sealed EVA/PE construction
- 40mm 6-12F Ribbon: Ceramic reinforcement, supports 6-12F ribbon configurations depending on splice tray
- Transparent sleeve construction for splice inspection before and after shrinking
Specifications CYG-FA-SSS-40
| Sleeve Length | 40mm |
| Reinforcement | 304 Stainless Steel Rod, OD 1.2mm |
| Outer Sleeve OD | 3.0mm |
| Post-Shrink OD | 2.7mm |
| Pack Quantity | 50 |
Specifications CYG-FA-SSS-60
| Sleeve Length | 60mm |
| Reinforcement | 304 Stainless Steel Rod, OD 1.2mm |
| Outer Sleeve OD | 3.0mm |
| Post-Shrink OD | 2.7mm |
| Pack Quantity | 50 |
Specifications CYG-FA-12RSS-40
| Sleeve Length | 40mm |
| Fiber Count | 6F - 12F (Ribbon, Single-Side) |
| Reinforcement | Ceramic, 40 x 4 x 2mm |
| Outer Sleeve OD | 5.0mm |
| Post-Shrink Size | 4.8 x 4.3mm |
| Pack Quantity | 50 |
