SKU: CYG-C6X1-400FT
Cyclone CYG-C6X1-400FT
Cyclone CYG-C6X1-400FT

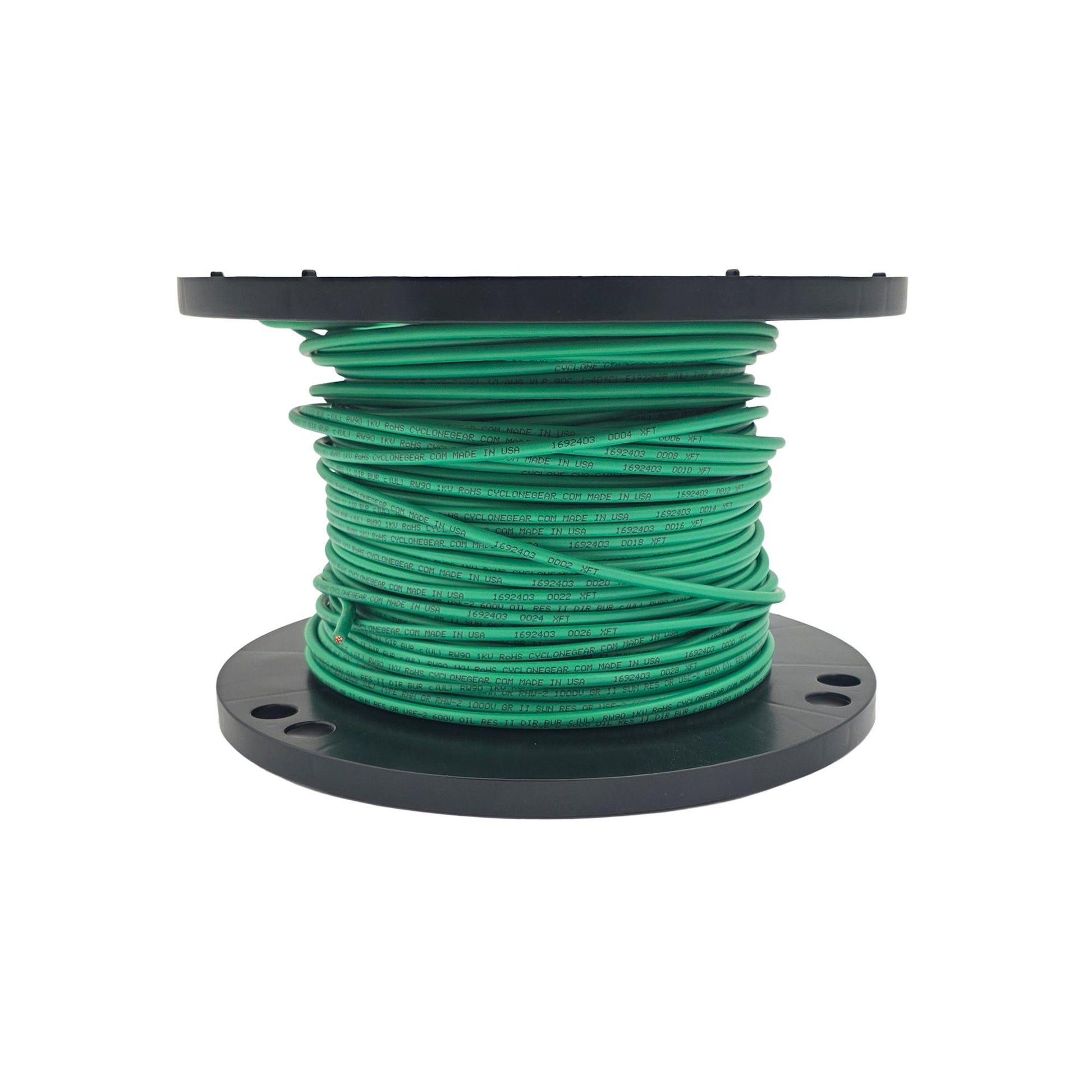

Cyclone Ground Cable Outdoor 6AWG 1-Conductor 400FT
Regular price
$653.00 USD
Regular price
Sale price
$653.00 USD
Unit price
per
Out of stock
Buy from Authorized Distributors
Couldn't load pickup availability
Cyclone CYG-C6X1-400FT
Ground Cable Outdoor 6AWG 1-Conductor 400FT
Type RHH 600V -40°C-90°C Dry/Wet Direct Burial Sunlight Resistant Overall Gas and Oil Resistant PVC Jacket.
Specifications:
Specifications CYG-C6X1-400FT
| Cable Data | |
| AWG | 6 |
| Strand | 7 |
| Nominal Insulation Wall Thickness | .060” |
| Nominal Diameter over Insulation | .301” |
| Approximate Net Weight lps/1M’ | 107 |
| Copper Weight per lbs/1M’ | 81.00 |
| Construction Details | |
| Total Number of Conductors | 1 |
| Conductor Material | 6 AWG 7-Strand Bare Copper |
| Insulation Material | Cross-linked Polyethylene |
| Conductor Insulation Color | Black |
| Dimension | 12" x 12" x 7" inch |
| Weight | 47.8 lb |
