SKU: CYG-C6X1
Cyclone CYG-C6X1
Cyclone CYG-C6X1

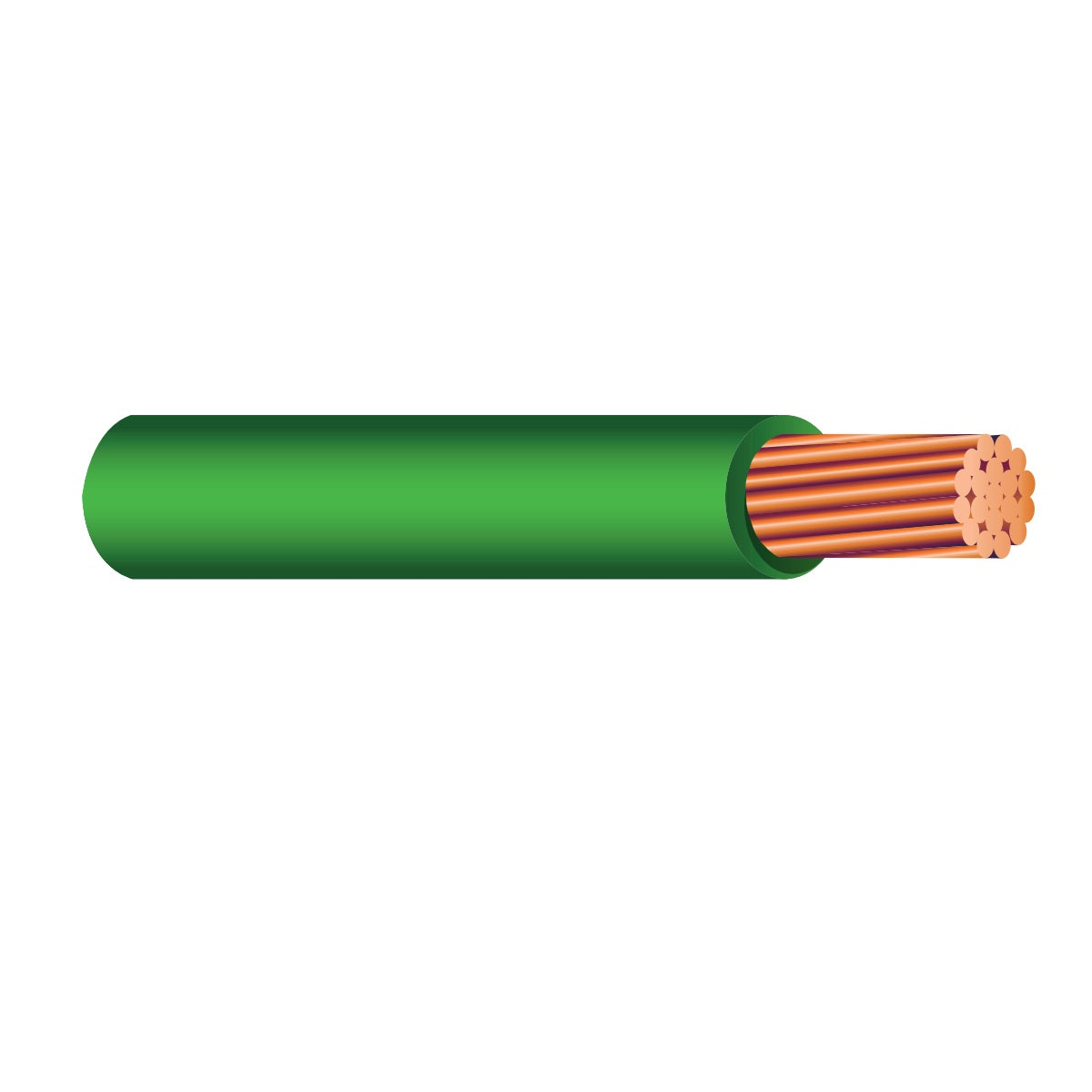

Cyclone 6 AWG Stranded Copper RHH/RHW-2/USE-2 Cable, 600V/1kV, Green Jacket, Made in USA
Regular price
$2.00 USD
Regular price
Sale price
$2.00 USD
Unit price
per
250 in stock
Cyclone CYG-C6X1
6 AWG Stranded Copper RHH/RHW-2/USE-2 Cable, 600V/1kV, Green Jacket, Made in USA
Product Features:
- 6 AWG 7-strand bare copper conductor with XLPE insulation
- Rated 1000V RHH/RHW-2 or 600V USE-2
- c(UL) certified as 1kV RW90
- Suitable for general-purpose lighting and power wiring
- Durable insulation for reliable indoor and outdoor installations
Specifications CYG-C6X1
| Cable Data | |
| AWG | 6 |
| Strand | 7 |
| Nominal Insulation Wall Thickness | .060” |
| Nominal Diameter over Insulation | .301” |
| Approximate Net Weight lbs/1M’ | 107 |
| Copper Weight per lbs/1M’ | 81.00 |
| Construction Details | |
| Total Number of Conductors | 1 |
| Conductor Material | 6 AWG 7-Strand Bare Copper |
| Insulation Material | Cross-linked Polyethylene |
| Conductor Insulation Color | Black |
