SKU: CYG-C14X2-1000FT-CA

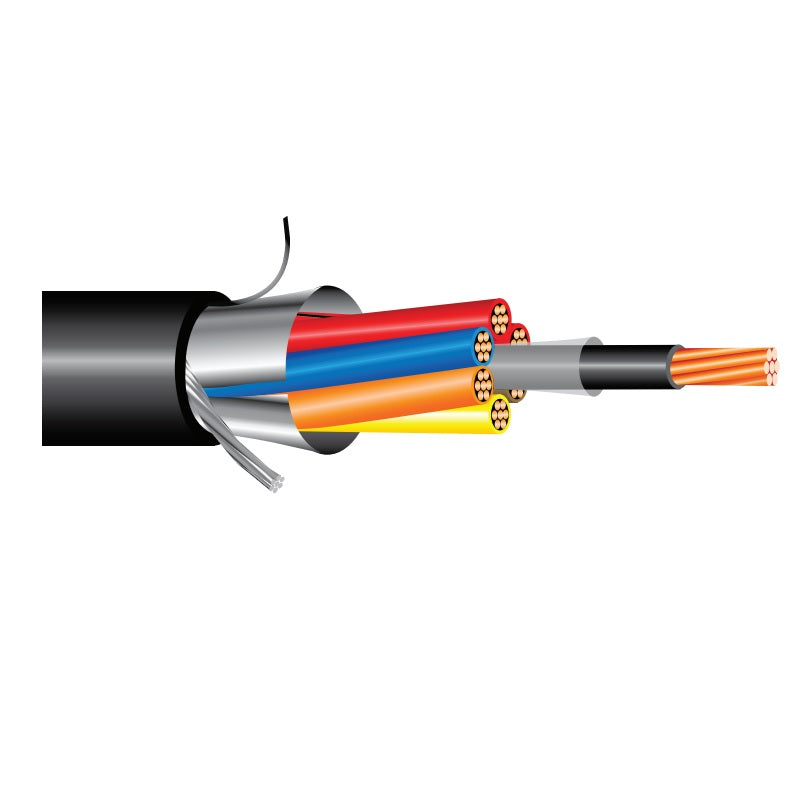

Cyclone CYG-C14X2-1000FT-CA
Cyclone CYG-C14X2-1000FT-CA
Cyclone DC Power Cable Outdoor 14AWG 2-Conductor 1000FT THHN 600V 90°C Dry/Wet, Direct Burial, Sunlight Resistant, Aluminum Shield and Drain Wire, Overall Gas and Oil Resistant PVC Jacket
Regular price
$1,100.00 USD
Regular price
Sale price
$1,100.00 USD
Unit price
per
Out of stock
Cyclone CYG-C14X2-1000FT-CA
DC Power Cable Outdoor 14AWG 2-Conductor 1000FT
The Cyclone Cyclone DC Power Cable Outdoor 14AWG 2-Conductor 1000FT THHN 600V 90°C Dry/Wet, Direct Burial, Sunlight Resistant, Aluminum Shield and Drain Wire, Overall Gas and Oil Resistant PVC Jacket.
Specifications CYG-C14X2-1000FT-CA
| Conductor Data | |
| Size AWG | 14 |
| Stranding | 7 |
| PVC Insulation Thick. (Mils) | 15 |
| Nylon Armo (Mils) | 5 |
| Appr. O.D. (In) | .113 |
| Cable Data | |
| # of CDRS | 2 |
| AWG | 14 |
| OA Jacket Thick. (Mils) | 45 |
| Appr. O.D. (In) | .320 |
| Appr. Weight (Lbs./M Ft.) | 85 |
| Dimension | 16" x 16" x 11" inch |
| Weight | 80 lb |
