SKU: CYG-C12X2-300FT
Cyclone CYG-C12X2-300FT
Cyclone CYG-C12X2-300FT

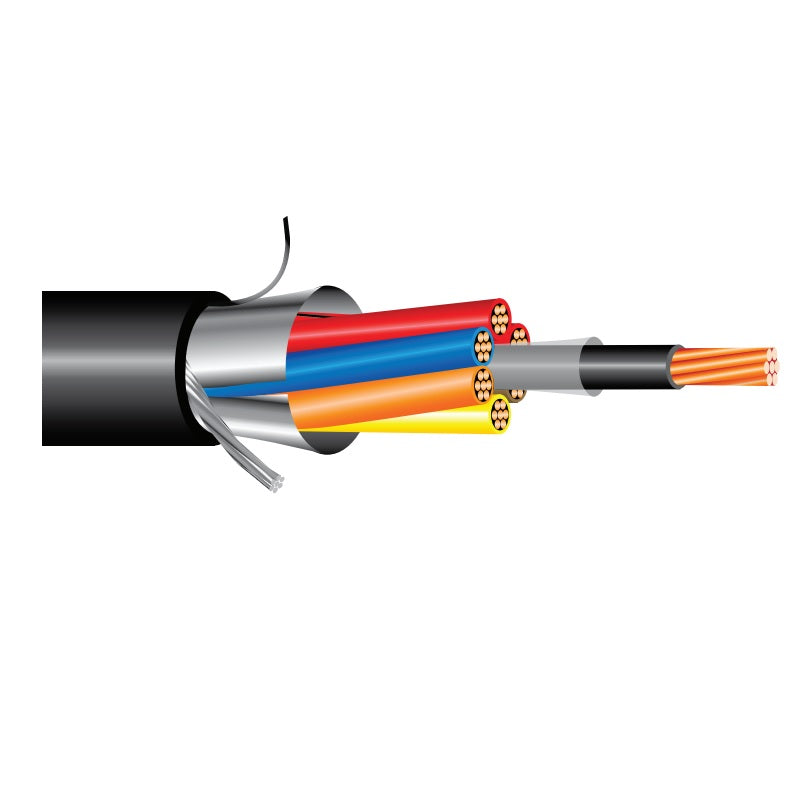

Cyclone DC Power Cable Outdoor 12AWG 2-Conductor 300FT THHN 600V 90°C Dry/Wet, Direct Burial, Sunlight Resistant, Aluminum Shield and Drain Wire, Overall Gas and Oil Resistant PVC Jacket
Regular price
$457.50 USD
Regular price
Sale price
$457.50 USD
Unit price
per
7 in stock
Cyclone CYG-C12X2-300FT
DC Power Cable Outdoor 12AWG 2-Conductor 300FT
The Cyclone DC Power Cable Outdoor 12AWG 2-Conductor 300FT THHN 600V 90°C Dry/Wet, Direct Burial, Sunlight Resistant, Aluminum Shield and Drain Wire, Overall Gas and Oil Resistant PVC Jacket.
Specifications CYG-C12X2-300FT
| Conductor Data | |
| Size AWG | 12 |
| Stranding | 7 |
| PVC Insulation Thick. (Mils) | 15 |
| Nylon Armo (Mils) | 5 |
| Appr. O.D. (In) | .132 |
| Cable Data | |
| # of CDRS | 2 |
| AWG | 12 |
| OA Jacket Thick. (Mils) | 45 |
| Appr. O.D. (In) | .358 |
| Appr. Weight (Lbs./M Ft.) | 107 |
| Dimension | 16" x 12" x 12" inch |
| Weight | 28 lb |
