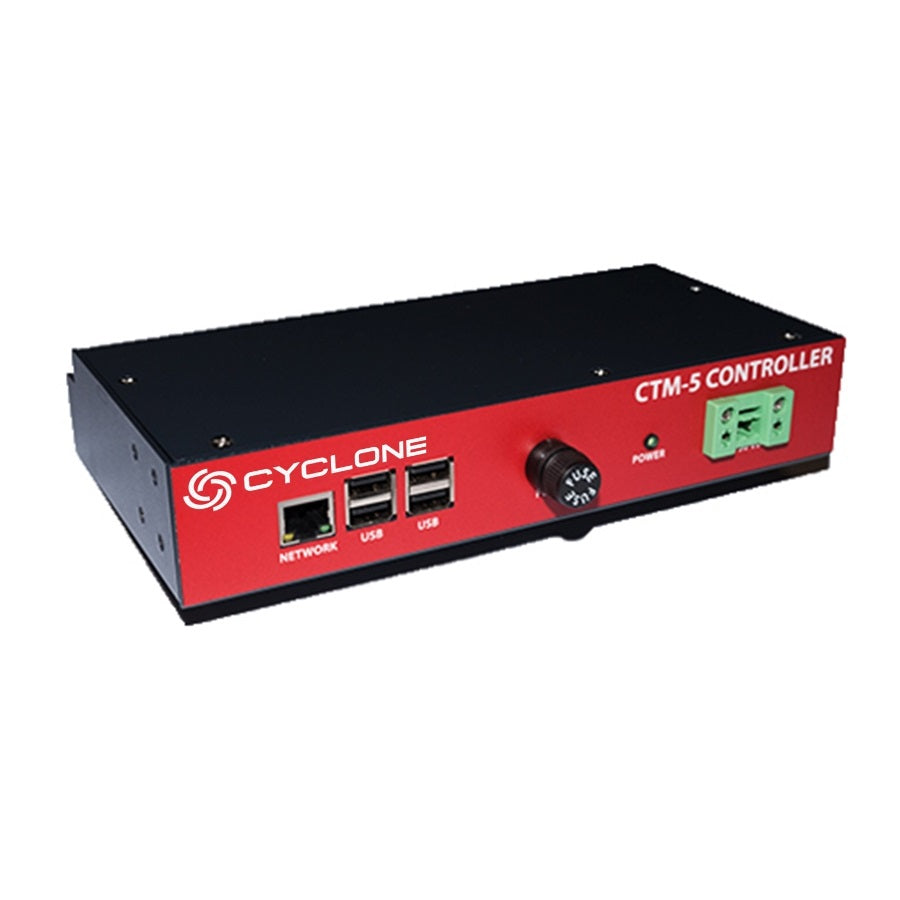

Cyclone Controller for CTM5 / CMM5 Timing Unit
Cyclone Controller for CTM5 / CMM5 Timing Unit
Cyclone Controller for CTM5 / CMM5 Timing Unit
Regular price
$799.00 USD
Regular price
Sale price
$799.00 USD
Unit price
per
188 in stock
Cyclone CTM5 Controller
Controller for CTM5 / CMM5 Timing Unit
The Cyclone-CTM5 Controller is a timing unit for the Cyclone CTM-5, can manage up to 8x CTM-5 Injectors, and provides web-based and SNMP Management.
The Cyclone CTM-5 Controller is an affordable solution for anyone looking to optimize the circulation of their TDD Synchronization signals, power over ethernet, and overall network. Its modular design features 5 individual port power injectors. The controller can also be used for remote management.
Features
- Support for Gigabit Ethernet
- Modular and scalable from 4 ports to 32 ports
- Dual resilient power inputs
- Rack-mountable
- Secure remote management when used with the optional CTM-5 Controller Module
- Compatible with Cambium Networks Products
Interfaces:
- 4x USBSerial Port (1 only used for connection to first injector in daisy chain)
- 1x RJ-45 10/100/1000BaseT Ethernet port
- 1x DC power input
Product Includes:
- Cyclone Controller
- Controller to Injector Cable
- DC Power Plug
- Rackmount Kit
- Quick Start Guide
Specifications CTM5 Controller
| Power | Input: +/-48VDC |
| Power Consumption | < 5 watts |
| Temperature | -40C to +55C (-40Fto 131F); 90% humidity, condensing |
| Data Interface | One RJ45 management port “Network” 4 each USB Ports “USB” – interface to Injector (only one port is used) |
| Management Interface | 10/100 BaseT RJ-45 |
| Weight | 1.0 lbs. (0.45 kg) |
| Dimensions | 8.75” W x 4.75” D x 1.70” H (222 mm x 122 mm x 42 mm) |
