SKU: CYG-C10X1
Cyclone 310
Cyclone 310
Cyclone 10 AWG Stranded Copper RHH/RHW-2/USE-2 Cable, 600V/1kV, Green Jacket, Made in USA, ship in reels of 1500ft each
Regular price
$0.76 USD
Regular price
Sale price
$0.76 USD
Unit price
per
11700 in stock
Cyclone CYG-C10X1

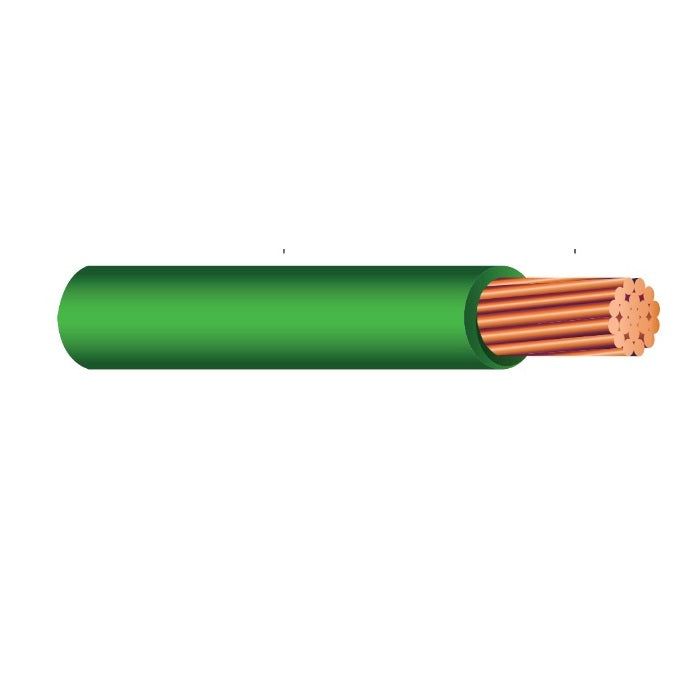

10 AWG Stranded Copper RHH/RHW-2/USE-2 Cable, 600V/1kV, Green Jacket, Made in USA, ship in reels of 1500ft each
The Cyclone CYG-C10X1 is a 10 AWG stranded bare copper cable with XLPE insulation, designed for reliable power and grounding applications. Rated for 1000V RHH/RHW-2/RW90 and 600V USE-2, it is suitable for indoor and outdoor installations, including conduit, raceway, and direct burial where permitted.
Specifications CYG-C10X1
| Cable Data | |
| AWG | 10 |
| Strand | 7 |
| Nominal Insulation Wall Thickness | .045” |
| Nominal Diameter over Insulation | .204” |
| Approximate Net Weight lps/1M’ | 45 |
| Copper Weight per lbs/1M’ | 32.05 |
| Construction Details | |
| Total Number of Conductors | 1 |
| Conductor Material | 10 AWG 7-Strand Bare Copper |
| Insulation Material | Cross-linked Polyethylene |
| Conductor Insulation Color | Black |
| Applicable Standards and Ratings | |
| Voltage Rating | 1000 V for RHH/RHW-2 or RW90; 600 V for USE-2 |
| Temperature Rating | -40°F to 194°F (-40°C to +90°C) |
| UL Type(s) | RHH/RHW-2/USE-2 |
| c(UL) Type(s) | RW90 |
| ROHS Compliant | Yes |
| Dimension | 12" x 0.204" x 0.204" inch |
| Weight | 0.067 |
