SKU: CYG-CAT

Cyclone CYG-CAT

Name: Cyclone CYG-CAT
Brand: Cyclone
SKU: CYG-CAT
Price: 238.0 USD
Availability: OutOfStock

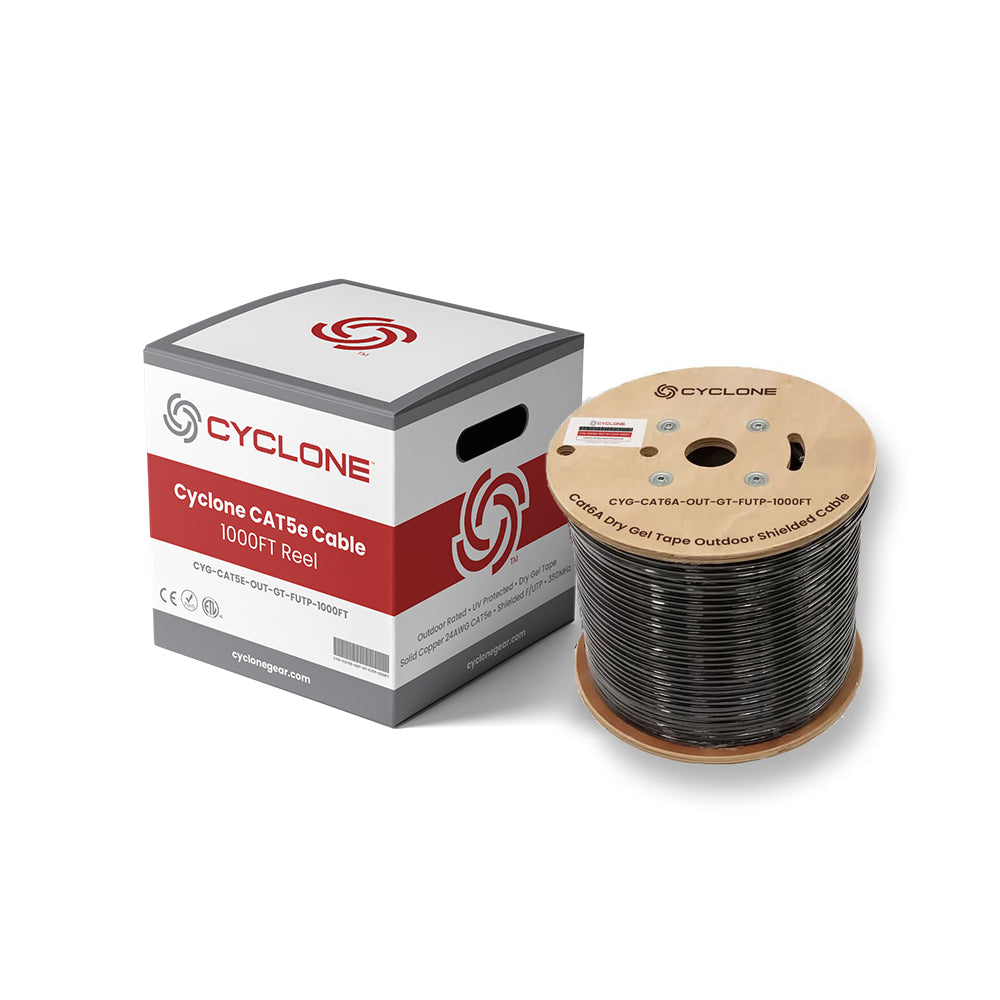

Cyclone CAT5e/6A F/UTP 24AWG Solid Copper Dry Gel Tape Outdoor LDPE Black 1000FT

Available Options
CAT Type: CAT5E, CAT6A

$238.00 USD

Sale Sold out

Out of stock

Product variants

	CAT5E	CAT6A
Standards	ANSI/TIA-568.2-C ISO 11801 2nd ROHS2011/65/EU	ANSI/TIA-568-C.2 ISO 11801 2nd IEC 61156-5 ROHS 2011/65/EU
Electrical Performance	ZO: 1-100MHZ 100±15 (Ohms) Operating Frequency: >=100Mhz Loss: <=21dB/100m at 100MHz Frequency DC Resistance 20°C:≤9.4(Ohms/100m) Insulation Resistance:> 5000MΩ*KM Nominal working voltage: <250V Test Voltage: <1200 V Bending radius: ≈ 8 x cable	DC Resistance 20°C: ≤8.4(Ohms/100m) Dielectric strength: ≤1.0kV/min Insulation Resistance:>5000MΩ*KM DC Resistance balance :<2.5% Impedance:1-250MHZ 100±15 (Ohms) Pair-to-Ground Capacitance Unbalance: ≤330 pF/100m

Specifications CYG-CAT5E-OUT-GT-FUTP-1000FT

Construction	Material	Nominal size
Inner conductor	Bare Copper	Φ0.51±0.005mm
Insulation	Polyethylene PE	Φ1.0±0.03mm
Insulation	Color	White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/Brown
Rip cord	Nylon Material (Available)
Waterproof	Dry Gel Tape
Drain wire	Tinned copper	Φ0.4±0.1mm
Shield	Aluminum Foil
Outer sheath	LDPE	Φ6.3±0.3mm
Outer sheath	Thickness	Φ0.65±0.05mm
Packing	1000FT/ Plastic Reel/Pull Box
Rated Temperature	-40°C ~ +85°C
